Secondary/Configurable Control Connector End Views



Secondary/Configurable Control Connector End Views

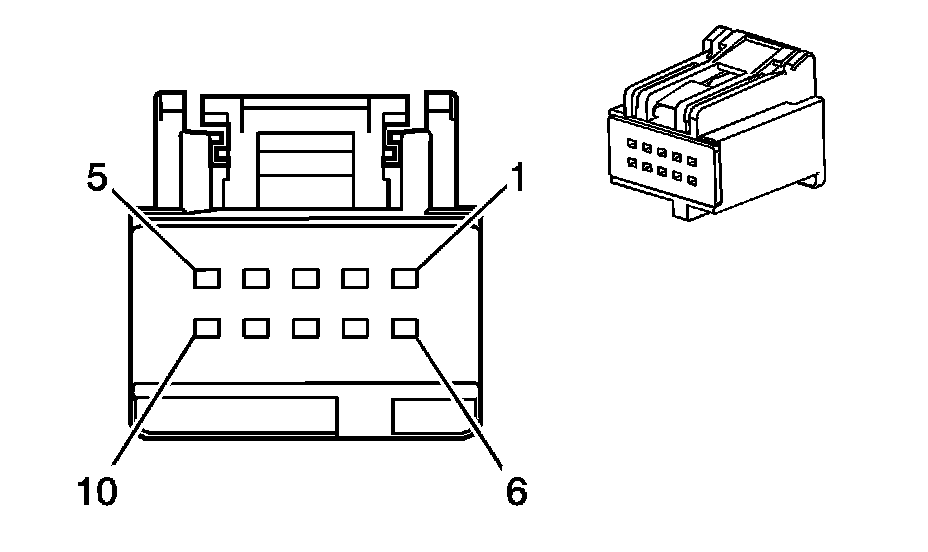

Steering Wheel Controls - Left (3-Spoke)

Steering Wheel Controls - Left:

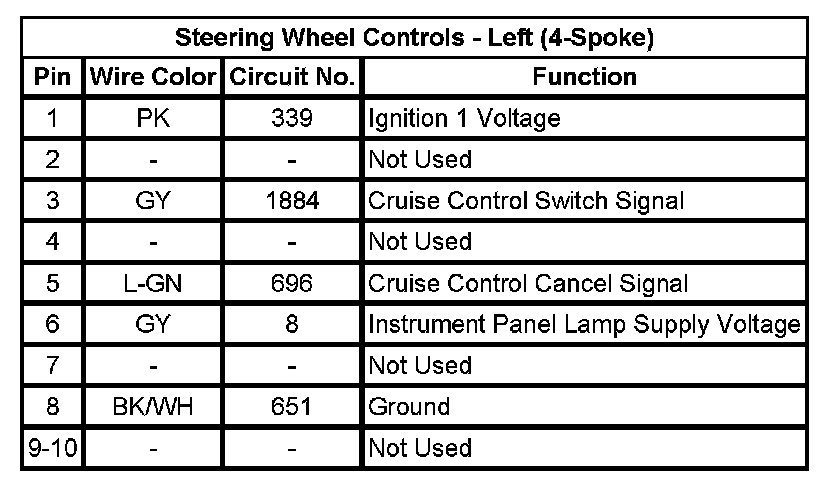

Steering Wheel Controls - Left (4-Spoke)














Steering Wheel Controls - Right (3-Spoke)

Steering Wheel Controls - Right (UK3):














Steering Wheel Controls - Right (4-Spoke w/UK3)
