Tail Lamp Assembly and /or Backup, Sidemarker, Stop, Turn Signal Bulb Replacement (Extended Sedan)

Tail Lamp Assembly and /or Backup, Sidemarker, Stop, Turn Signal Bulb Replacement (Extended Sedan)

Removal Procedure




1. Open the liftgate.

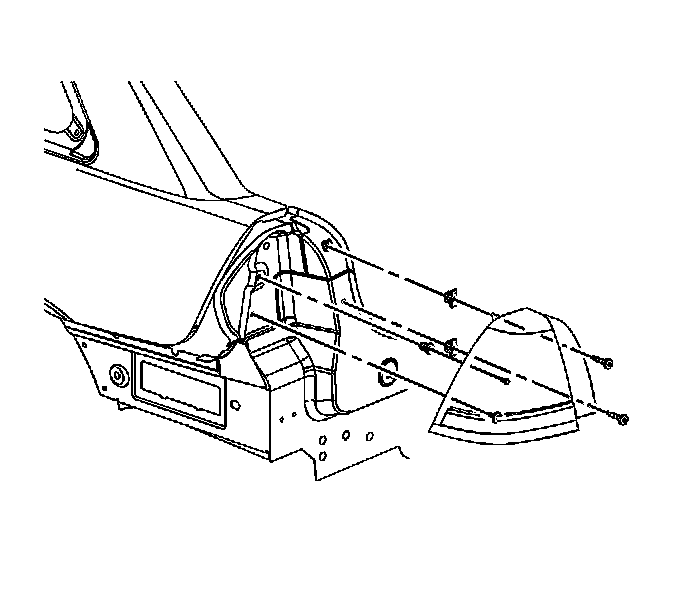

2. Remove the screws from the tail lamp.
3. Pull the tail lamp rearward to disengage the tail lamp from the quarter panel.




4. Disconnect the electrical connector from the tail lamp wiring harness.
5. Remove the tail lamp, stop lamp, and backup lamp sockets by rotating the sockets counterclockwise.
6. Remove the bulbs from the tail lamp, backup lamp, and/or stop lamp sockets.

Installation Procedure




1. Install the bulbs to the tail lamp, stop lamp, and/or backup lamp sockets.
2. Install the tail lamp, stop lamp, and/or backup lamp sockets to the tail lamp. Rotate the sockets clockwise until the sockets are fully seated.
3. Connect the electrical connector to the tail lamp wiring harness.




4. Position the tail lamp to the quarter panel. Ensure that the 2 locating pins are seated.

Notice: Refer to Fastener Notice.

5. Install the tail lamp screws to the tail lamp.

Tighten the tail lamp screw to 2 N.m (18 lb in).

6. Close the liftgate.
