Map Light: Diagrams



Lighting Systems Connector End Views

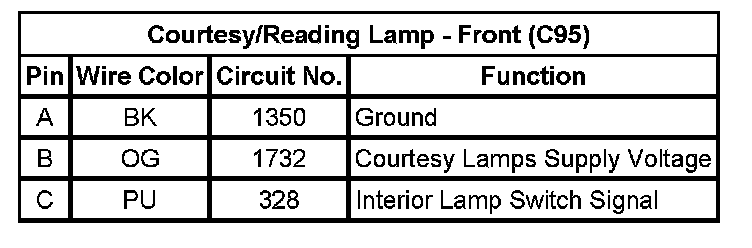

Courtesy/Reading Lamp - Front (C95)

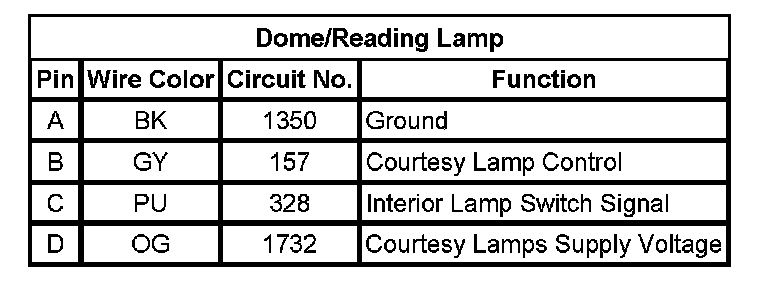

Dome/Reading Lamp
