Locks: Locations

Vehicle Access Component Views

Left Front Door




1 - Door Lock Switch - Driver
2 - Outside Rearview Mirror - Driver
3 - Outside Rearview Mirror - Switch
4 - Speaker - LF Door Tweeter (UZ6)
5 - Window Switch - Driver
6 - Speaker - LF Door
7 - Rear Compartment/Liftgate Release Switch
8 - Window Motor - Driver
9 - Door Latch Assembly - Driver

Right Front Door




1 - Speaker - RF Door Tweeter (UZ6)
2 - Outside Rearview Mirror - Front Passenger
3 - Door Lock Switch - Passenger
4 - Window Switch - Passenger
5 - Door Latch Assembly - Passenger
6 - Window Motor - Passenger
7 - Speaker - RF Door

Left Rear Door




1 - Window Switch - LR
2 - Speaker - LR Door (Extended Sedan)
3 - Window Motor - LR
4 - Door Latch Assembly - LR

Right Rear Door




1 - Door Latch Assembly - RR
2 - Window Motor - RR
3 - Speaker - RR Door (Extended Sedan)
4 - Window Switch - RR

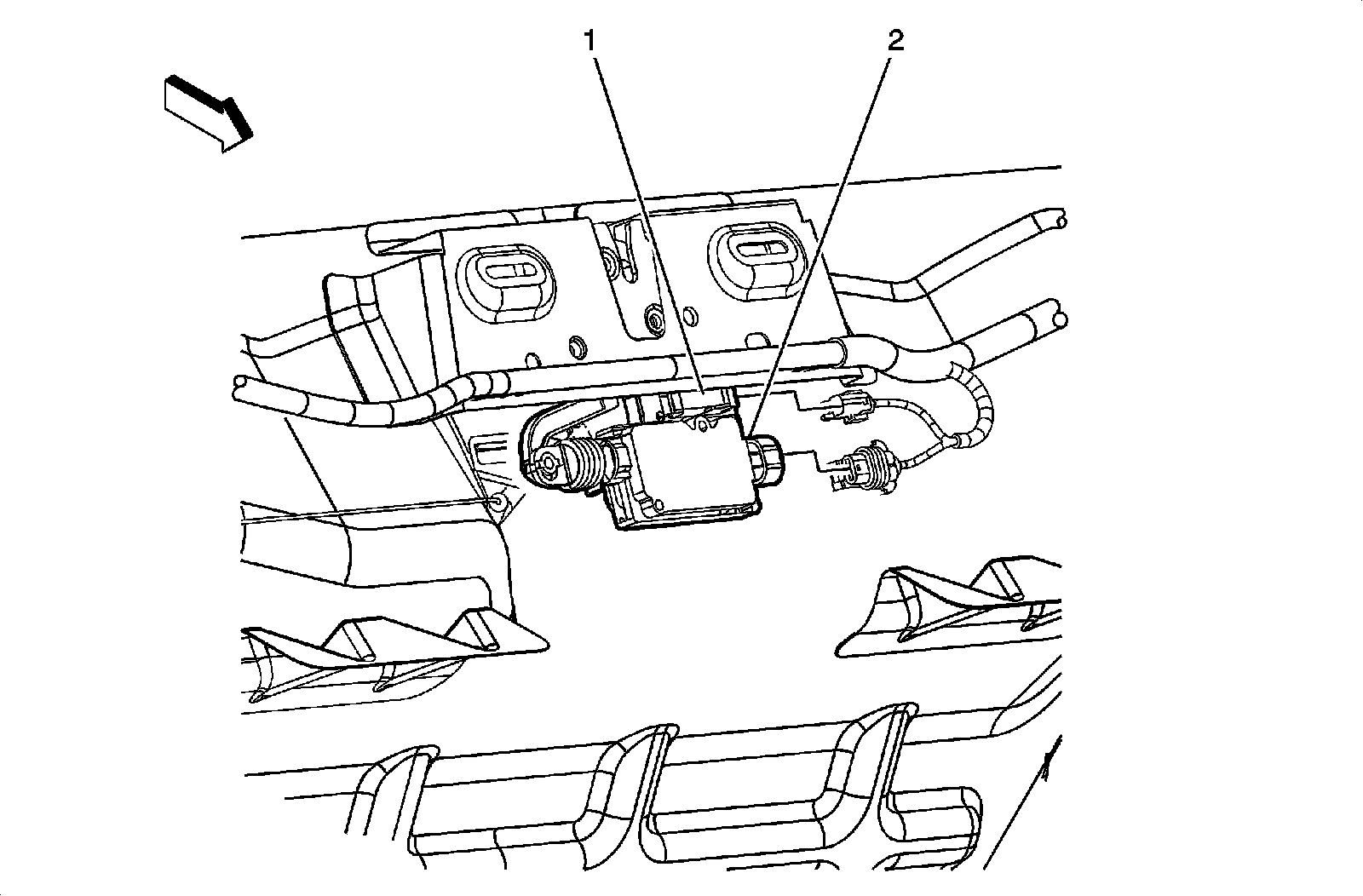

Rear of Rear Compartment Lid - Sedan




1 - Rear Compartment Lid Release Switch - Exterior
2 - Rear Compartment Lid Latch

Rear of Rear Hatch - Extended Sedan




1 - Cargo Lamp Switch
2 - Rear Compartment Lid Latch

Rear of Vehicle - Extended Sedan




1 - Tail/Stop and Turn Signal Lamp - Left
2 - Tail Lamp - Left
3 - Center High Mounted Stop Lamp (CHMSL)
4 - Liftgate Release Switch
5 - Antenna - Radio
6 - Tail Lamp - Right
7 - Tail/Stop and Turn Signal Lamp - Right
8 - Backup Lamp - Right
9 - License Lamp
10 - Backup Lamp - Left
