Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2007
>>
Malibu V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
HVAC- Automatic
HVAC- Automatic

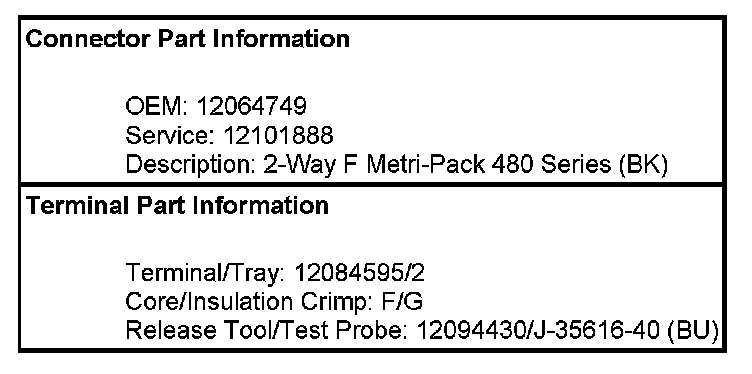

HVAC Connector End Views

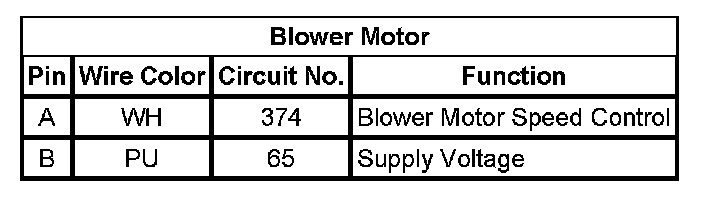

Blower Motor
