Instrument Panel Center Trim Panel Replacement

Instrument Panel Center Trim Panel Replacement

Removal Procedure

1. Remove the instrument panel (I/P) left trim panels. Refer to Instrument Panel Trim Panel Replacement - Left Side .
2. Remove the I/P right trim panels. Refer to Instrument Panel Trim Panel Replacement - Right Side .
3. Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement .
4. Remove the knee bolster. Refer to Knee Bolster Replacement .





Important: The I/P center trim bezel is painted and can be damaged. Pull on the bottom of the bezel to disengage the lower clips first or damage to the HVAC control module could occur.

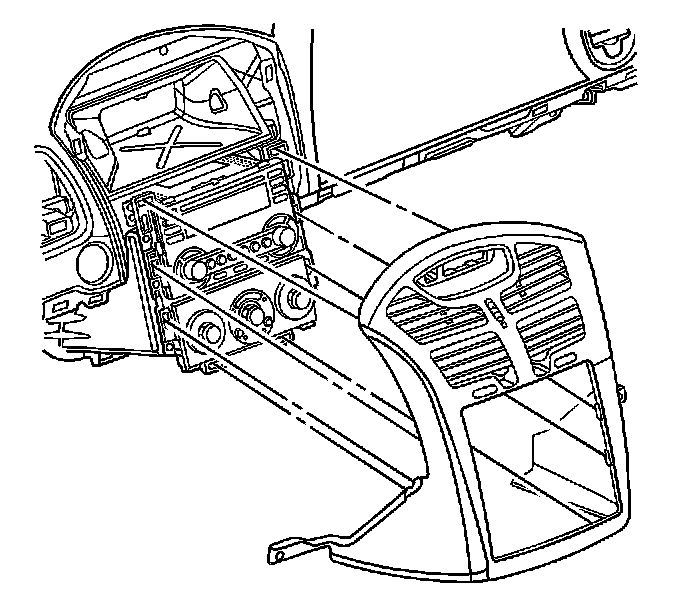

5. Remove the I/P center trim bezel.
6. Remove the hazard switch. Refer to Hazard Warning Switch Replacement .



Installation Procedure

1. Install the hazard switch. Refer to Hazard Warning Switch Replacement .




2. Install the I/P center trim bezel.
3. Install the knee bolster. Refer to Knee Bolster Replacement .
4. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
5. Install the I/P right trim panels. Refer to Instrument Panel Trim Panel Replacement - Right Side .
6. Install the I/P left trim panels. Refer to Instrument Panel Trim Panel Replacement - Left Side .
