Center Mounted Brake Lamp
Center Mounted Brake Lamp
Lighting Systems Connector End Views

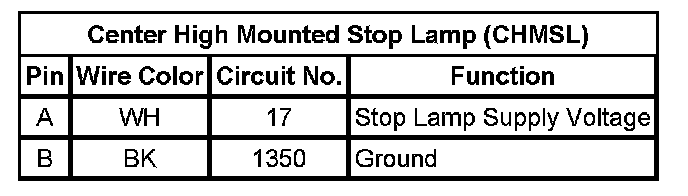

Center High Mounted Stop Lamp (CHMSL)
A/T Shift Lock Control Solenoid:
