License Plate Lamp



Lighting Systems Connector End Views

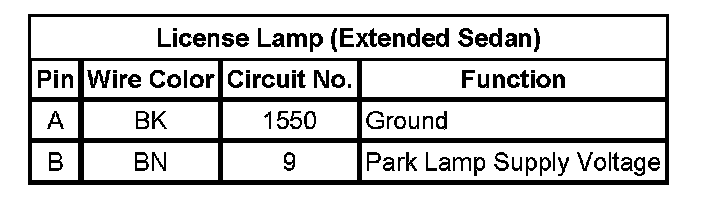

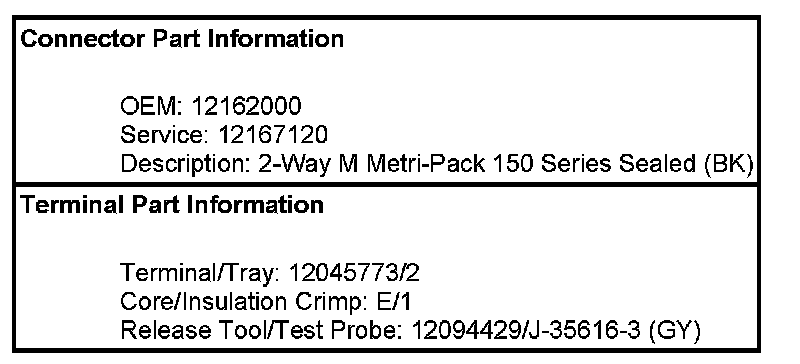

License Lamp (Extended Sedan)

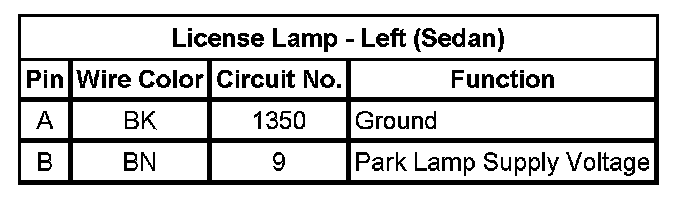

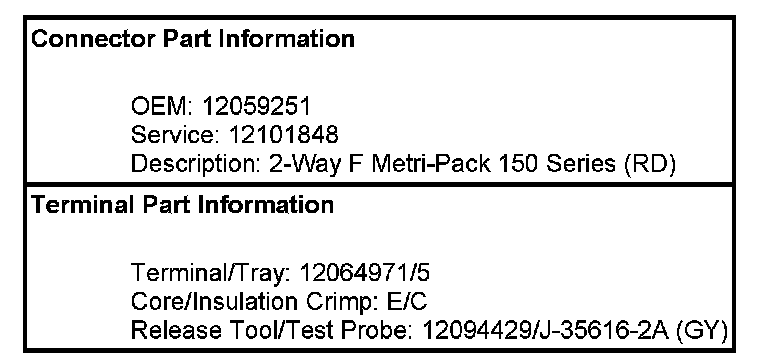

License Lamp - Left (Sedan)

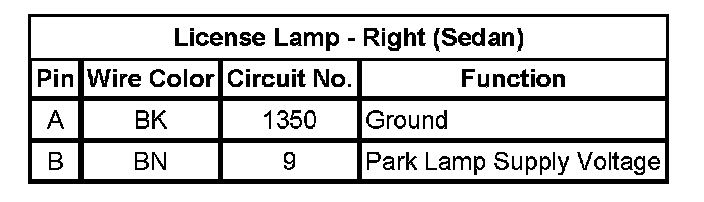

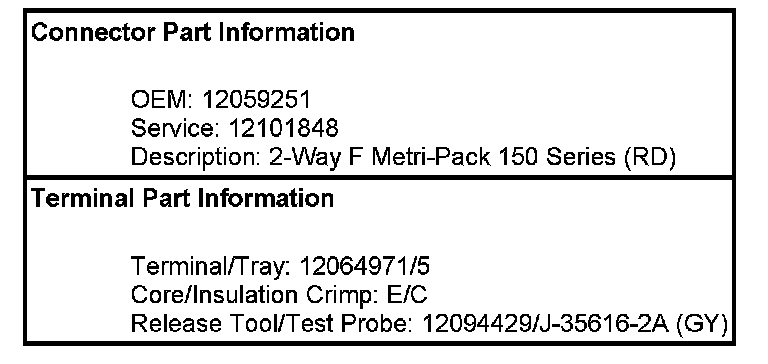

License Lamp - Right (Sedan)
