Power Seat Motor

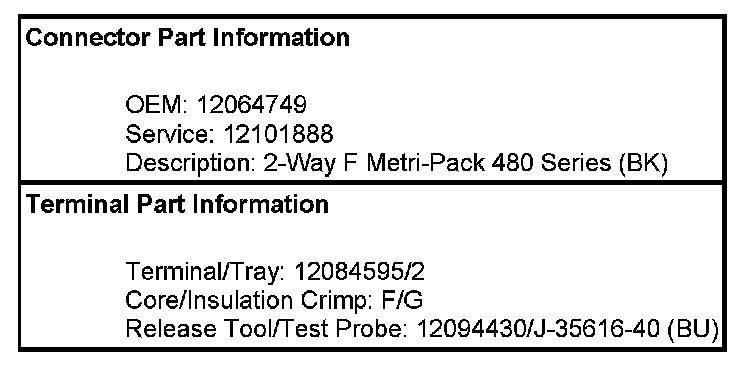

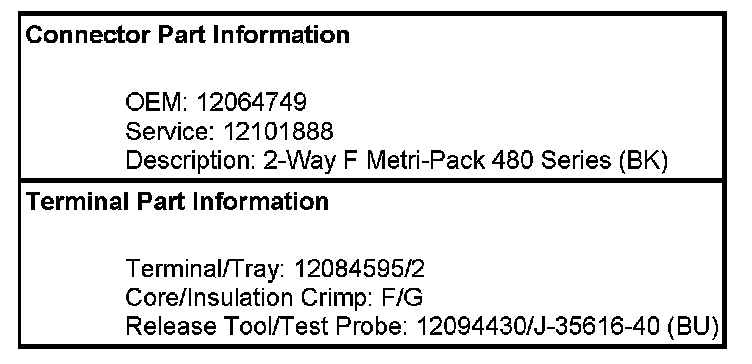

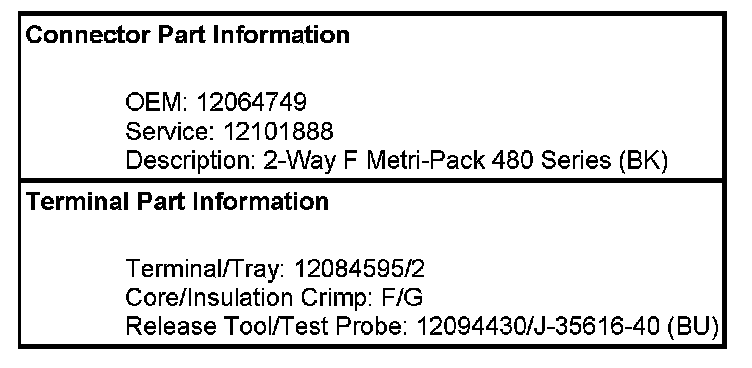

Power Seat Connector End Views

Seat Front Vertical Motor (AG1)

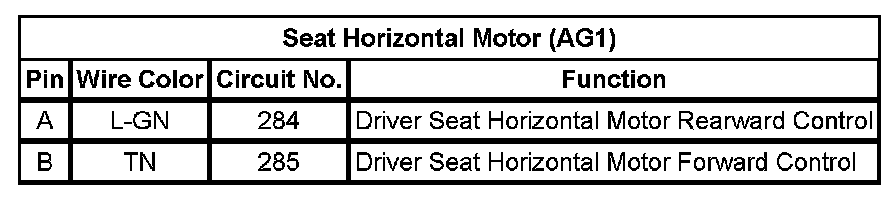

Seat Horizontal Motor (AG1)

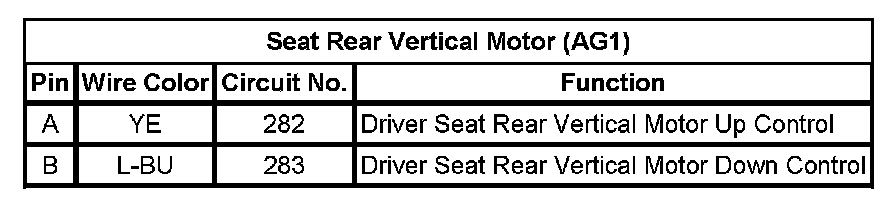

Seat Rear Vertical Motor (AG1)














Seat Vertical Motor (ASN)
