Power Seat Switch



Power Seat Connector End Views

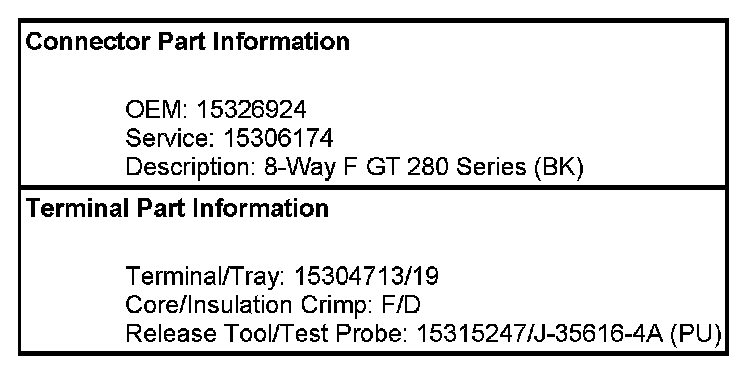

Seat Adjuster Switch - Driver (AG1)

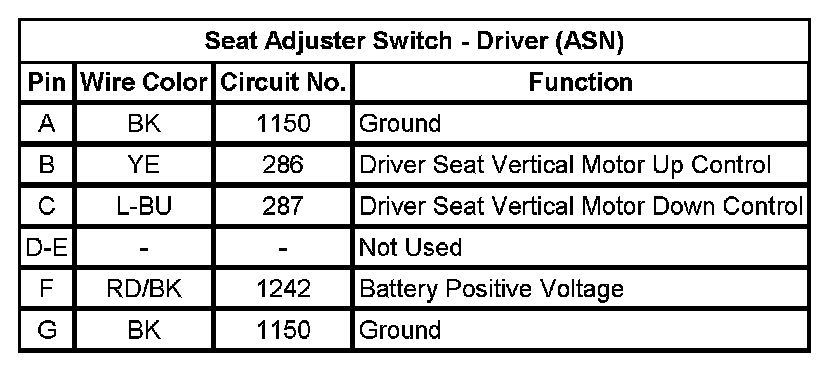

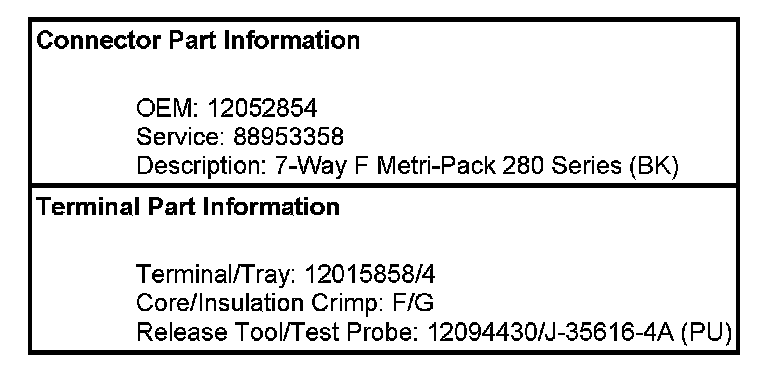

Seat Adjuster Switch - Driver (ASN)
