Blower Motor Relay: Locations

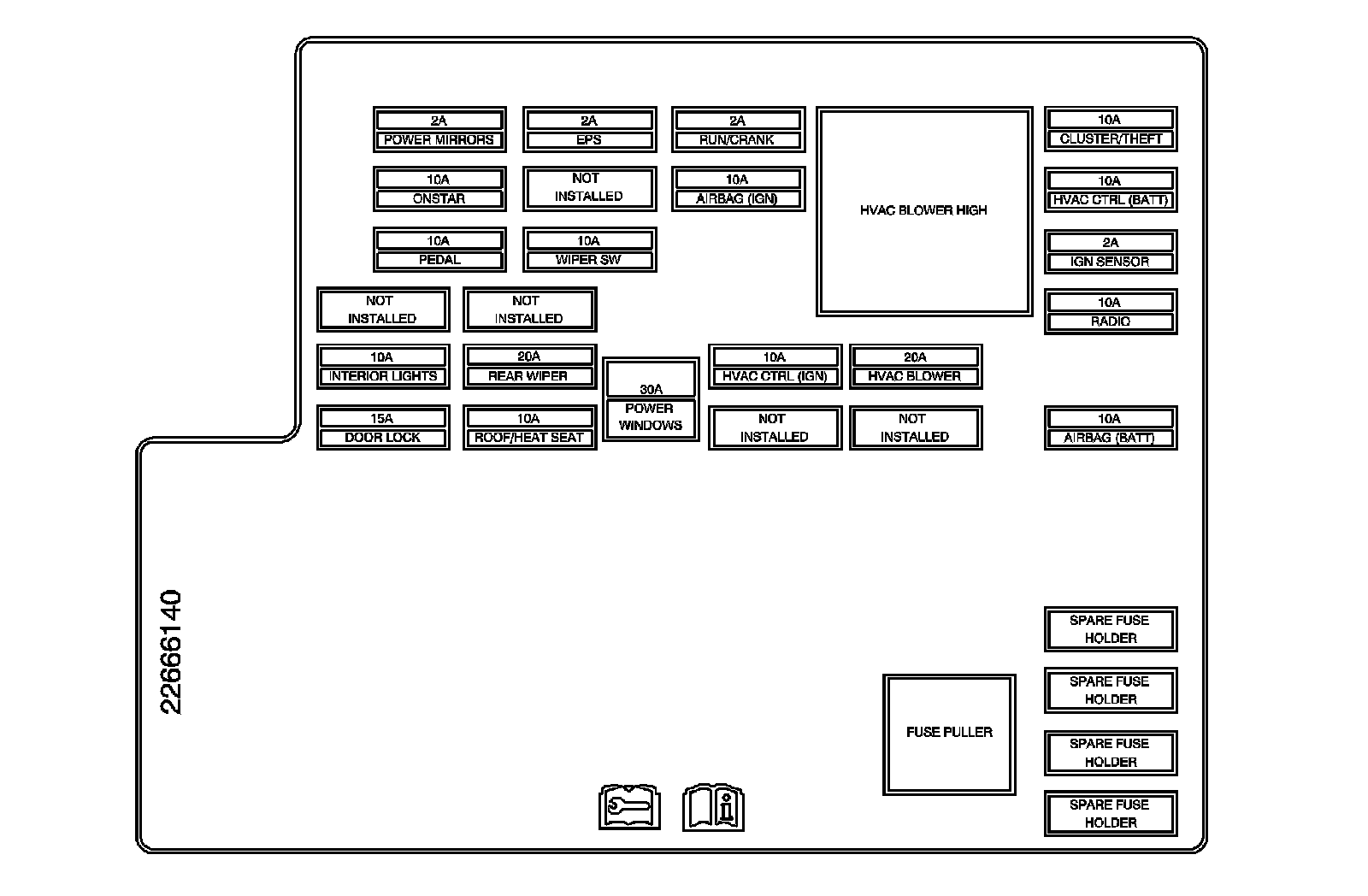

Electrical Center Identification Views

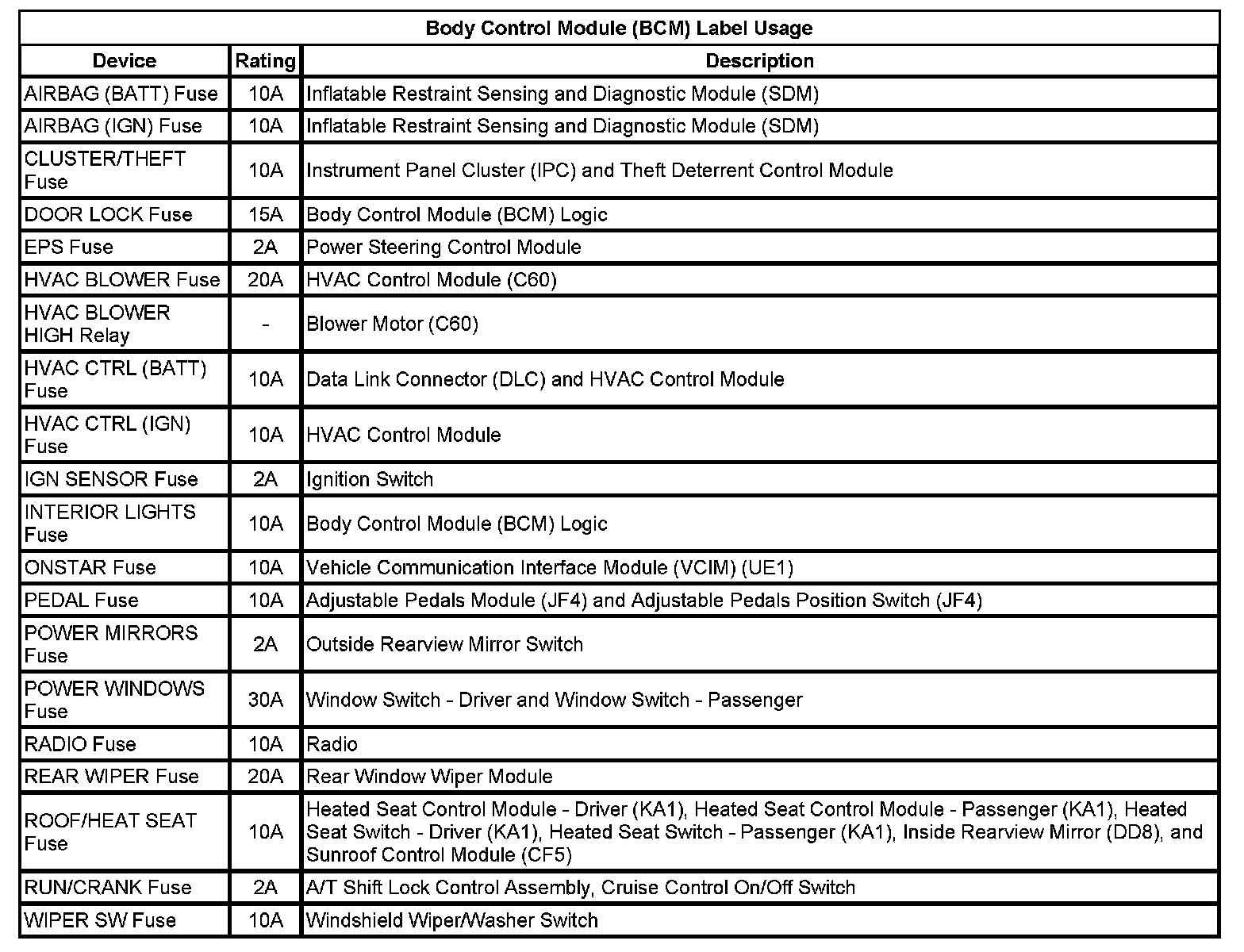

Body Control Module (BCM) - Cover
