Lighting and Horns: Locations

Lighting Systems Component Views

Front of Vehicle




1 - Headlamp - Low Beam - Right
2 - Headlamp - High Beam - Right
3 - Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
4 - Headlamp - High Beam - Left
5 - Headlamp - Low Beam - Left
6 - Park/Turn Signal Lamp - LF
7 - Fog Lamp - LF (T96)
8 - Fog Lamp - RF (T96)
9 - Park/Turn Signal Lamp - RF

Forward Overhead




1 - Courtesy/Reading Lamps - Front, Left Reading
2 - Cellular Telephone Microphone (UE1)
3 - Sunroof Switch (CF5)
4 - Garage Door Opener Transmitter (UG1)
5 - Courtesy/Reading Lamps - Front, Right Reading
6 - Dome/Reading Lamp
7 - Sunroof (CF5)
8 - Vanity Mirror Lamp - Right (DH6)
9 - Inside Rearview Mirror
10 - OnStar Keypad (UE1)
11 - Vanity Mirror Lamp - Left (DH6/D74)

Instrument Panel




1 - Turn Signal/Multifunction Switch
2 - Steering Wheel Controls - Left
3 - Instrument Panel Cluster (IPC)
4 - Steering Wheel Controls - Right
5 - Windshield Wiper/Washer Switch
6 - Ignition Switch
7 - Hazard Switch
8 - Ambient Light Sensor (C60), Sunload Sensor (C68)
9 - Radio
10 - HVAC Control Module
11 - Inflatable Restraint I/P Module
12 - Traction Control Switch (NW7/NW9), Auxiliary Power Outlet - Front (w/o NW7/NW9)
13 - Transmission Shifter
14 - Cigar Lighter
15 - Horn Buttons/Inflatable Restraint Steering Wheel Module
16 - Data Link Connector (DLC)
17 - Fog Lamp Switch (T96)
18 - Dimmer Switch
19 - Adjustable Pedals Position Switch (JF4)

Above Brake Pedal




1 - Brake Pedal Position Sensor
2 - Adjustable Pedals Position Sensor

Inside Center Console




1 - A/T Shift Lock Control Solenoid
2 - Transmission Range Indicator Lamp

Under the Rear Package Shelf (Sedan)




1 - Rear Compartment Courtesy Lamp

Rear of Left Rear Wheel Well - Extended
Sedan




1 - Auxiliary Power Outlet - Rear
2 - Cargo Lamp
3 - Fuse Block - Rear

Rear of Rear Hatch - Extended Sedan




1 - Cargo Lamp Switch
2 - Rear Compartment Lid Latch

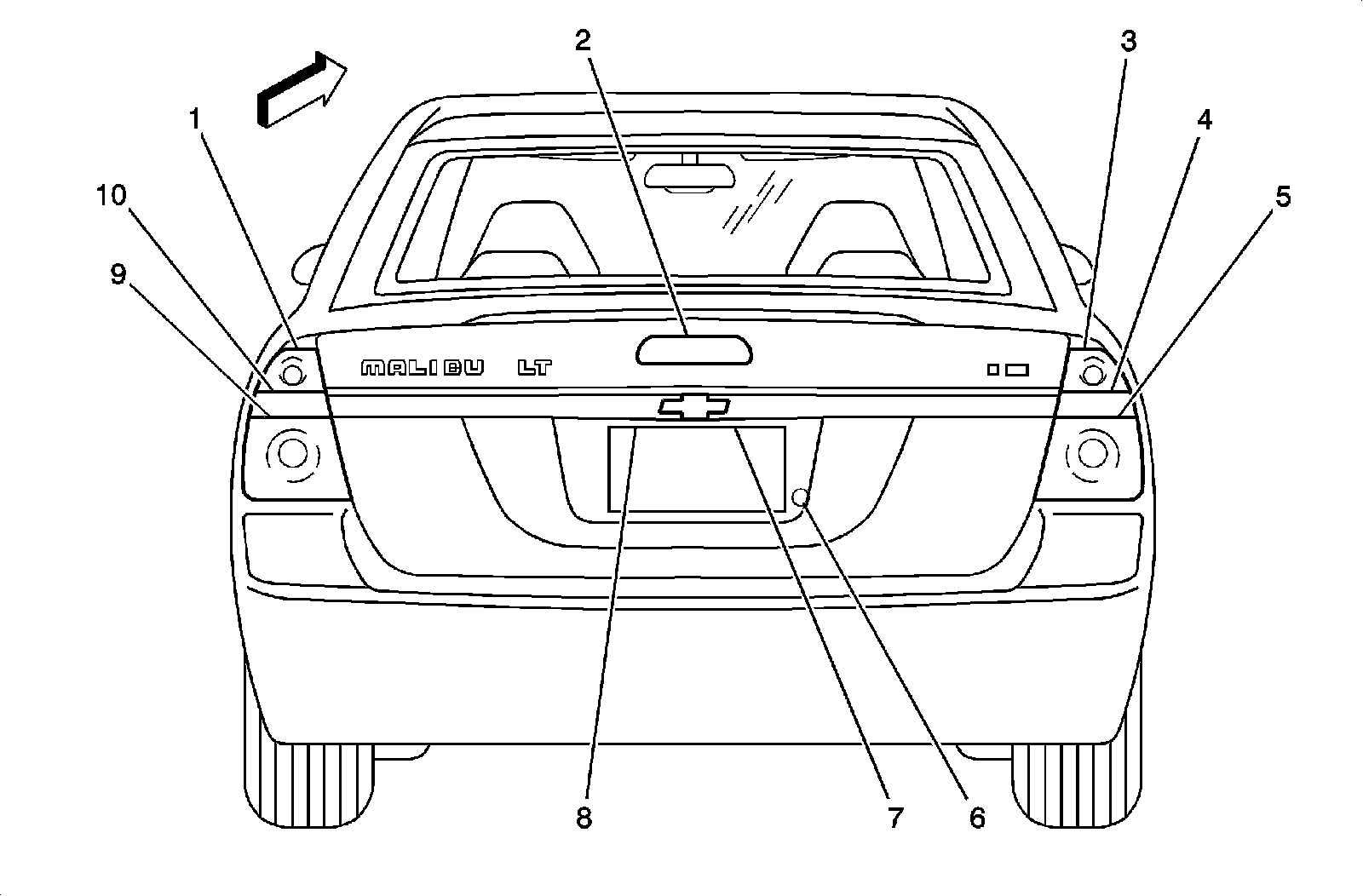

Rear of Vehicle - Sedan




1 - Tail Lamp - Left
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Tail Lamp - Right
4 - Backup Lamp - Right
5 - Tail/Stop and Turn Signal Lamp - Right
6 - Rear Compartment Lid Release Switch - Exterior
7 - License Lamp - Right
8 - License Lamp - Left
9 - Tail/Stop and Turn Signal Lamp - Left
10 - Backup Lamp - Left

Rear of Vehicle - Extended Sedan




1 - Tail/Stop and Turn Signal Lamp - Left
2 - Tail Lamp - Left
3 - Center High Mounted Stop Lamp (CHMSL)
4 - Liftgate Release Switch
5 - Antenna - Radio
6 - Tail Lamp - Right
7 - Tail/Stop and Turn Signal Lamp - Right
8 - Backup Lamp - Right
9 - License Lamp
10 - Backup Lamp - Left
