Starting and Charging: Locations

Engine Electrical Component Views

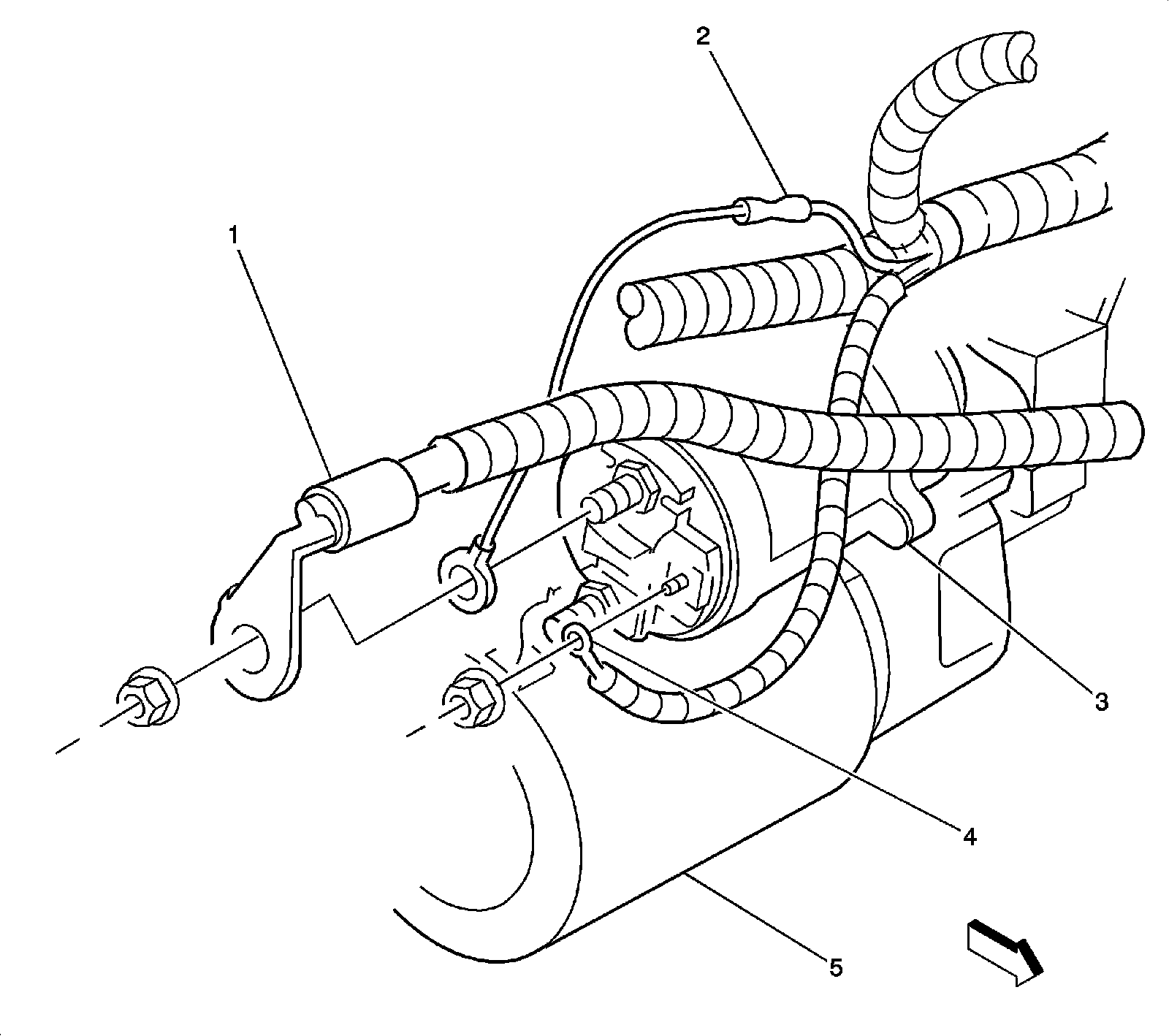

Starter




1 - Battery Positive Terminal at Starter Solenoid
2 - Fusible Link
3 - Starter Solenoid
4 - S Terminal
5 - Starter

Lower Left Front of Engine -LX9




1 - Engine Oil Pressure (EOP) Switch
2 - Starter
3 - Starter Solenoid
4 - Knock Sensor (KS) 2

Front of the Engine (LZ9)




1 - Intake Manifold Tuning (IMT) Valve Solenoid
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Throttle Actuator Control (TAC) Module
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
5 - Knock Sensor (KS) 2
6 - Starter Solenoid
7 - Starter
8 - Engine Oil Pressure (EOP) Sensor
9 - Camshaft Position (CMP) Actuator Solenoid
10 - Camshaft Position (CMP) Sensor

Right Lower Front of Engine - L61

Right Lower Front of Engine - L61:

1 - Starter
2 - Starter Solenoid

Top Rear of Engine - LX9




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Generator
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 - Ignition Control Module (ICM)
5 - Exhaust Gas Recirculation (EGR) Valve
6 - Evaporative Emission (EVAP) Canister Purge Solenoid
7 - Throttle Actuator Control (TAC) Module

Top of the Engine - LZ9




1 - Generator

Top Right Front of Engine - L61




1 - G106
2 - Generator

Left Rear of Engine Compartment




1 - Coolant Level Switch
2 - Battery
3 - Electronic Brake Control Module (EBCM) (JL9/J67)
4 - C101 (JL9/J67)
5 - G103 (NV7)
6 - Fuse Block - Underhood
7 - Powertrain Control Module (PCM) (LX9/L61)/Engine Control Module (ECM)(LZ9)
8 - Powertrain Control Module (PCM) C3 (LX9/L61)/Engine Control Module (ECM) C3 (LZ9)
9 - Powertrain Control Module (PCM) C2 (LX9/L61)/Engine Control Module (ECM) C2 (LZ9)
10 - Powertrain Control Module (PCM) C1 (LX9/L61)/Engine Control Module (ECM) C1 (LZ9)

Instrument Panel




1 - Turn Signal/Multifunction Switch
2 - Steering Wheel Controls - Left
3 - Instrument Panel Cluster (IPC)
4 - Steering Wheel Controls - Right
5 - Windshield Wiper/Washer Switch
6 - Ignition Switch
7 - Hazard Switch
8 - Ambient Light Sensor (C60), Sunload Sensor (C68)
9 - Radio
10 - HVAC Control Module
11 - Inflatable Restraint I/P Module
12 - Traction Control Switch (NW7/NW9), Auxiliary Power Outlet - Front (w/o NW7/NW9)
13 - Transmission Shifter
14 - Cigar Lighter
15 - Horn Buttons/Inflatable Restraint Steering Wheel Module
16 - Data Link Connector (DLC)
17 - Fog Lamp Switch (T96)
18 - Dimmer Switch
19 - Adjustable Pedals Position Switch (JF4)
