Entertainment/Communication Component Views
Entertainment/Communication Component Views

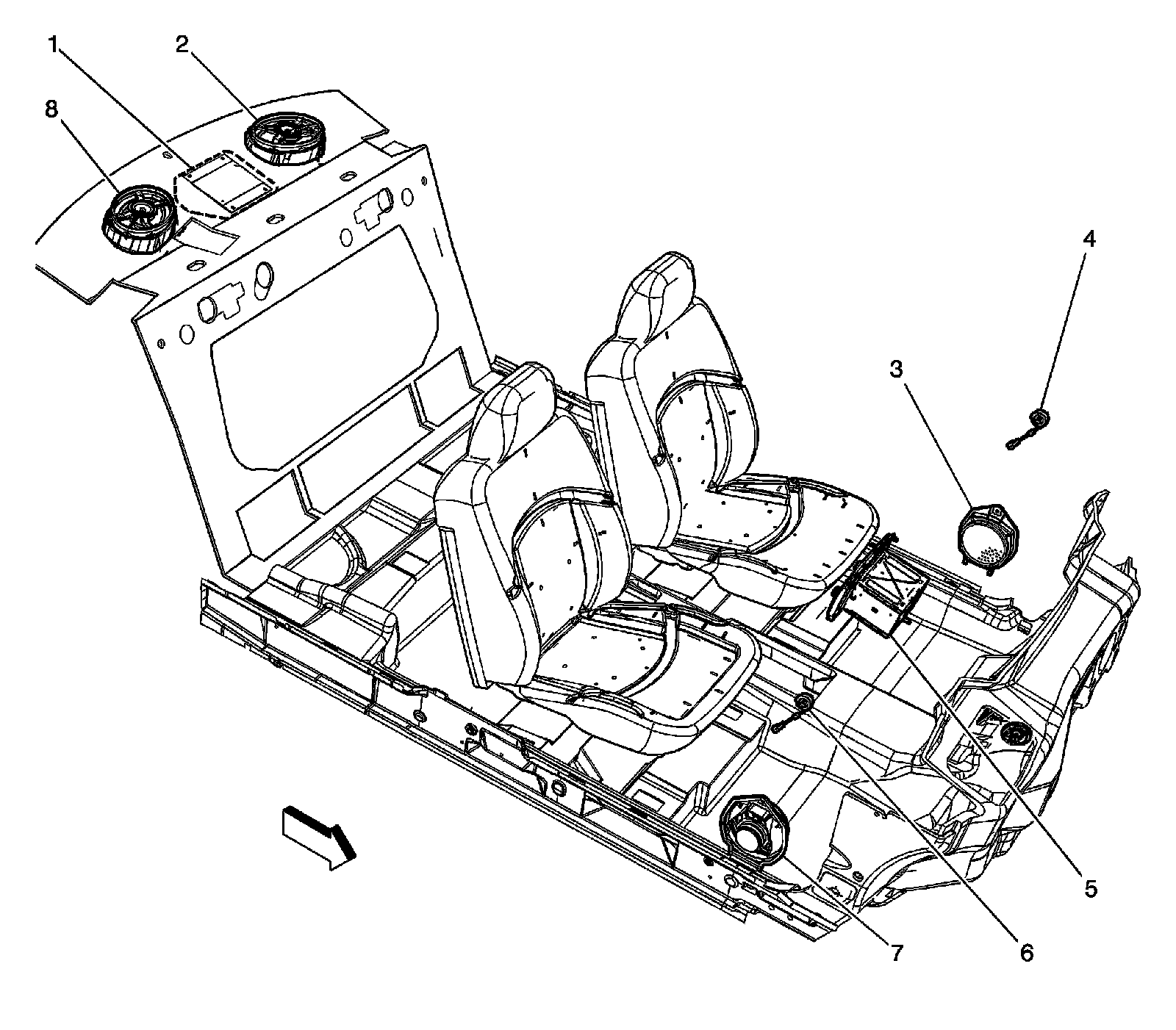

Radio and Speaker Components
1 - Audio Amplifier (U87, UQ3)
2 - Speaker - LR
3 - Speaker - LF Door
4 - Speaker - LF Tweeter (UQ3)
5 - Radio
6 - Speaker - RF Tweeter (UQ3)
7 - Speaker - RF Door
8 - Speaker - RR

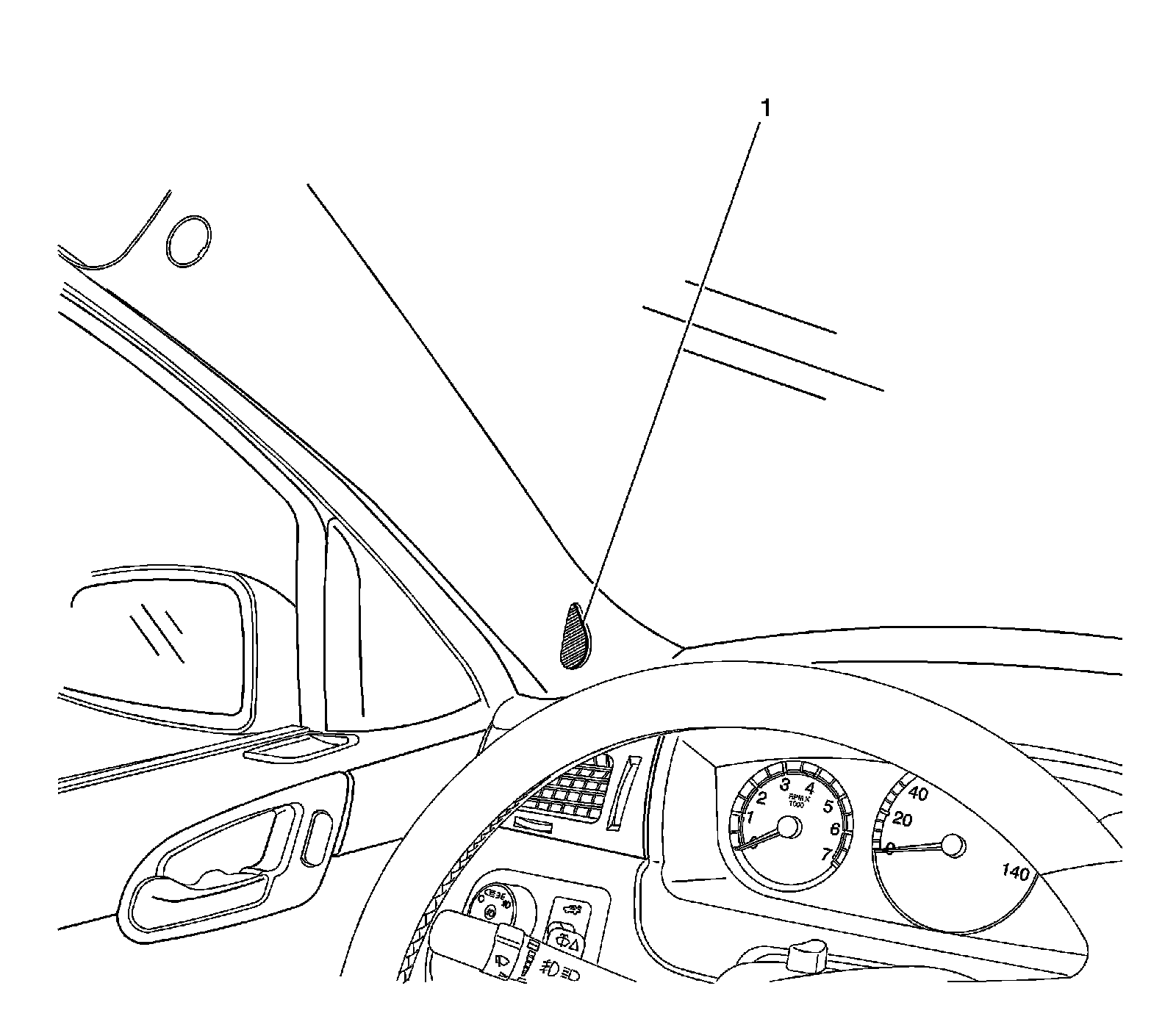

Base of the Left A-Pillar
1 - Speaker - LF Tweeter (UQ3)
Base of the Right A-Pillar
1 - Speaker - RF Tweeter (UQ3)
I/P Components
1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Driver Information Center (DIC) Switch
5 - Ambient Light Sensor
6 - Inflatable Restraint Passenger Air Bag On/Off Indicator (Sedan w/o 9C1, 9C3)
7 - Radio
8 - Inflatable Restraint I/P Module
9 - I/P Trim Panel
10 - Heated Seat Switch - Passenger (KA1)
11 - HVAC Control Module
12 - Heated Seat Switch - Driver (KA1)
13 - Turn Signal/Multifunction Switch
Headliner Components - Top View
1 - Headliner
2 - Cellular Navigation and Digital Radio Antenna (UE1, U2K)
3 - Inflatable Restraint Passenger Air Bag On/Off Indicator (Coupe)
4 - Sunroof Motor (CF5)

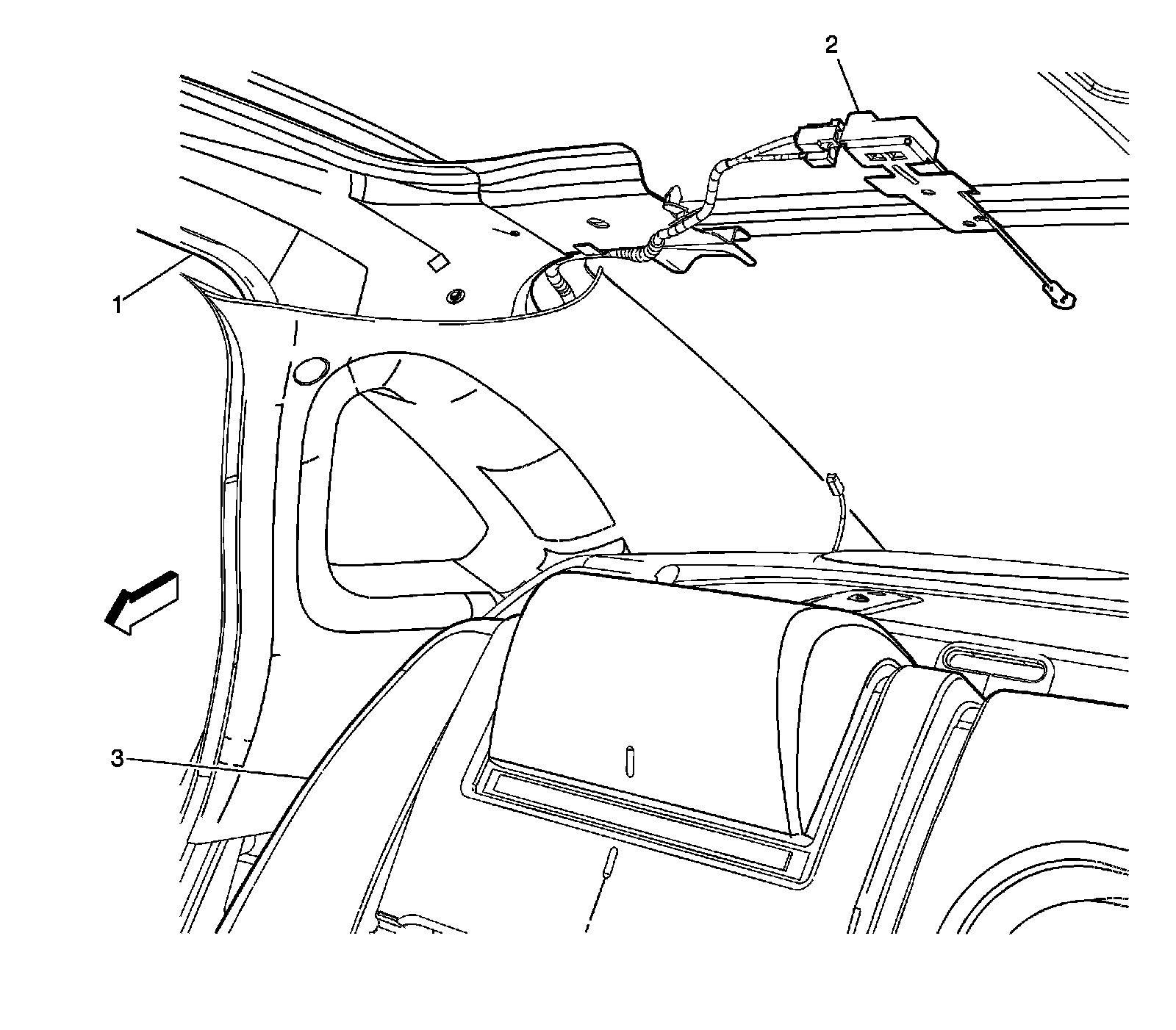

Above the Rear Seat
1 - Left Rear C-Pillar
2 - Radio Antenna Module
3 - Rear Seat
Right Side of the Luggage Compartment
1 - Rear Window
2 - Junction Block - Rear (6J1)
3 - Digital Radio Receiver (U2K)
Rear of the Vehicle (Sedan)
1 - Rear Window Defogger Grid
2 - Radio Rear Window Antenna
3 - Tail/Stop and Turn Signal Lamp - Right
4 - Tail Lamp - Right
5 - Backup Lamp - Right
6 - License Lamp
7 - Center High Mounted Stop Lamp (CHMSL)
8 - Backup Lamp - Left
9 - Tail Lamp - Left
10 - Tail/Stop and Turn Signal Lamp - Left
Rear of the Vehicle (Coupe)
1 - Center High Mounted Stop Lamp (CHMSL)
2 - Radio Rear Window Antenna
3 - Rear Window Defogger Grid
4 - Tail Lamp - Right
5 - Marker Lamp - RR
6 - Tail/Stop and Turn Signal Lamp - Left
7 - Backup Lamp - Right
8 - License Lamp
9 - Backup Lamp - Left
10 - Tail/Stop and Turn Signal Lamp - Right
11 - Marker Lamp - LR
12 - Tail Lamp - Left
Left Side of Rear Compartment
1 - Vehicle Communication Interface Module (VCIM) (UE1)
2 - Backup Battery (UE1 Late Production)
3 - Terminator Resistor (w/UE1)
