Radio/Stereo: Diagrams



Entertainment/Communication Connector End Views

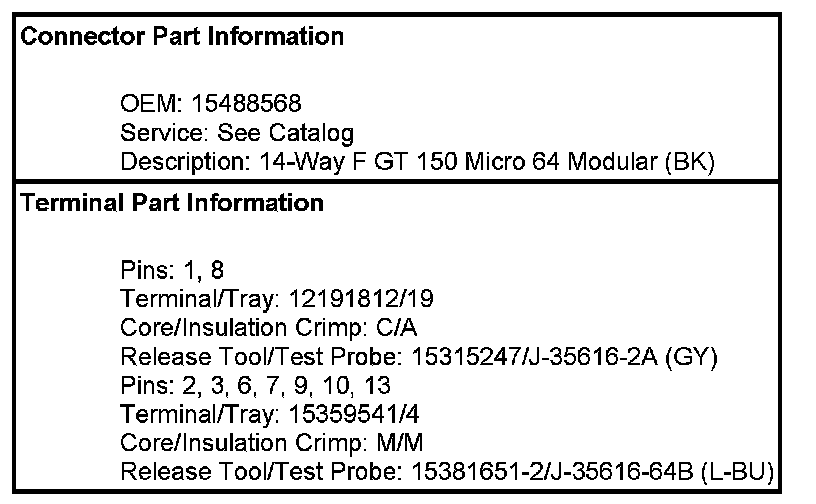

Digital Radio Receiver (U2K)














Radio, C1

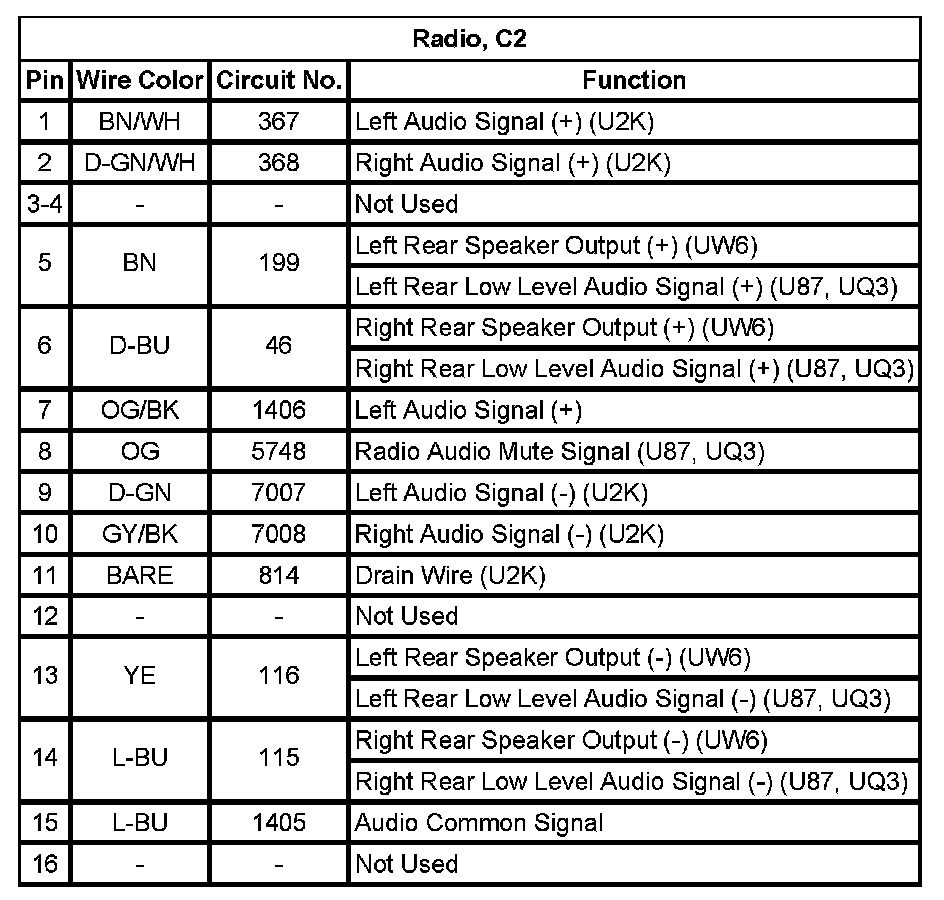

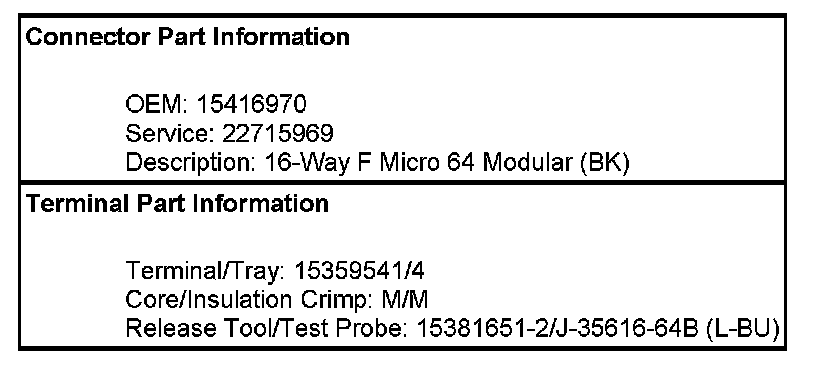

Radio, C2

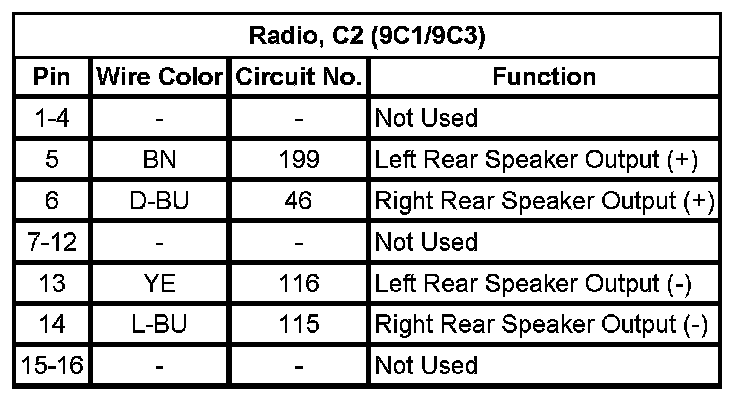

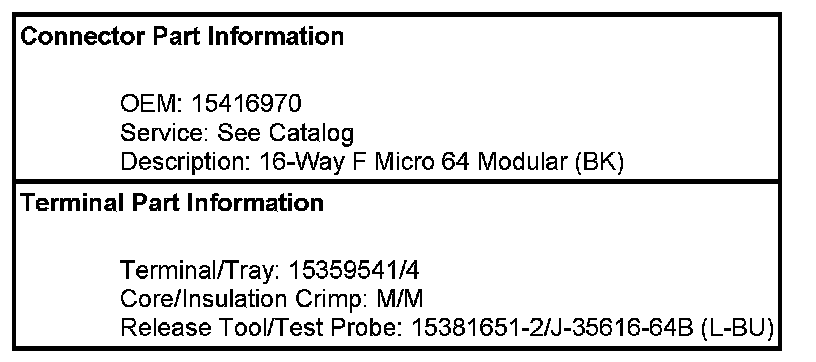

Radio, C2 (9C1/9C3)
