Seat Temperature Element

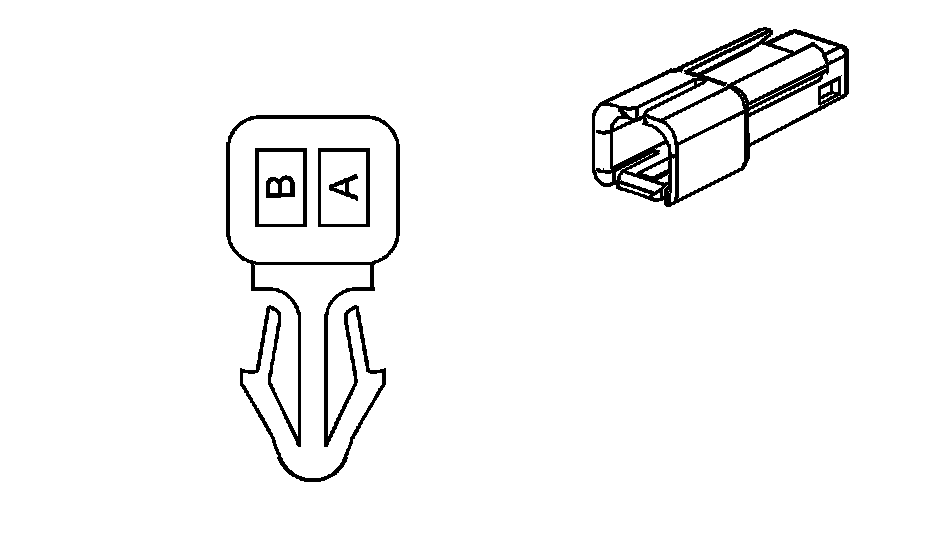

Heated/Cooled Seat Connector End Views

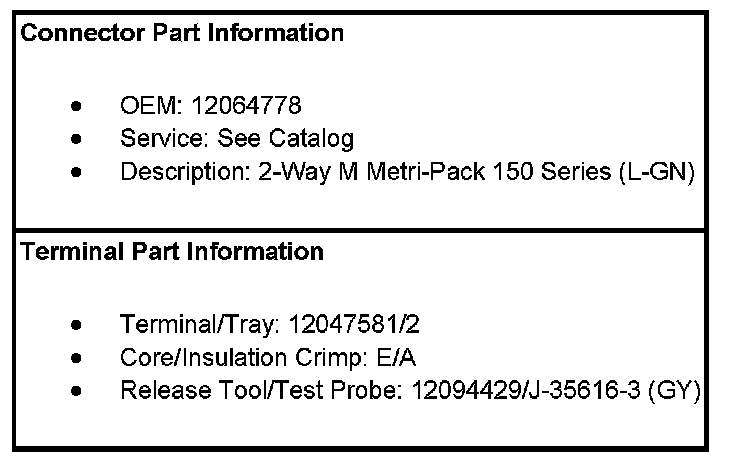

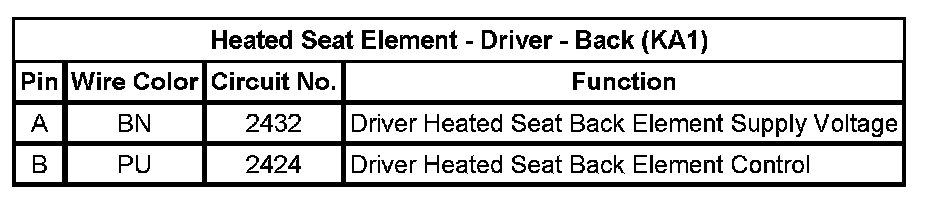

Heated Seat Element - Driver Back (KA1)

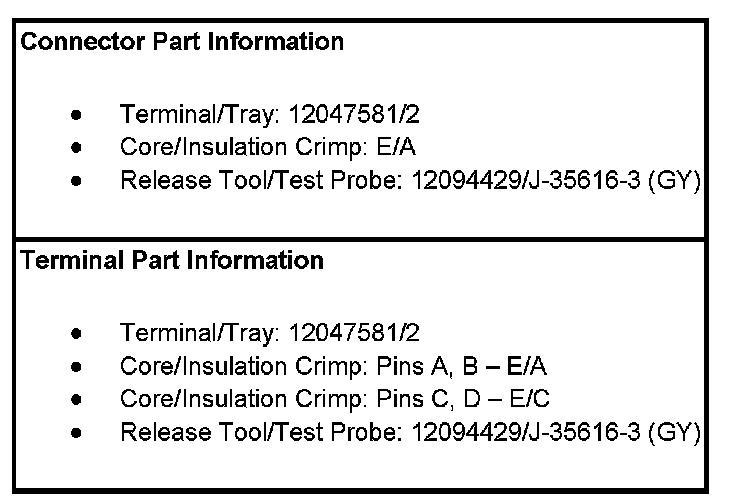

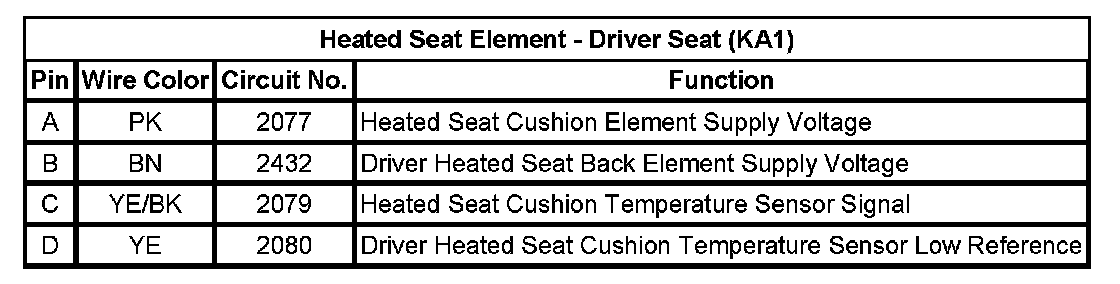

Heated Seat Element - Driver Seat (KA1)

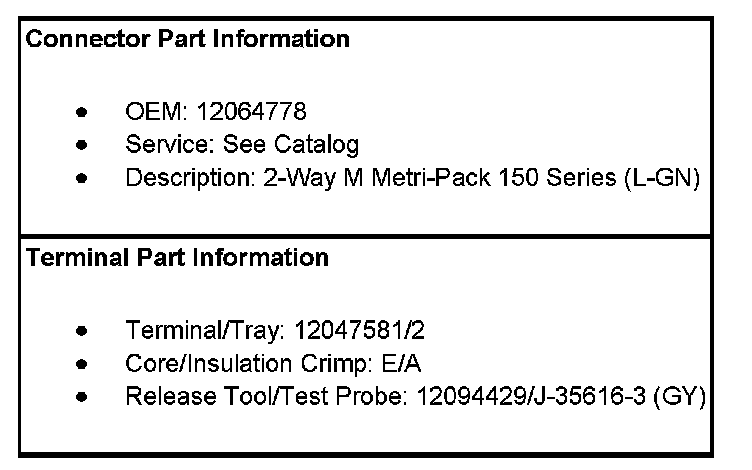

Heated Seat Element - Passenger Back (KA1)

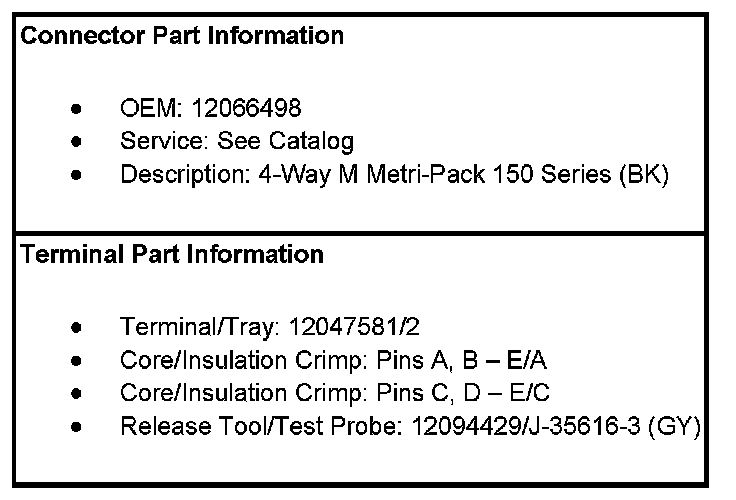

Heated Seat Element - Passenger Seat (KA1)
