Battery Cable Views
Harness Routing Views

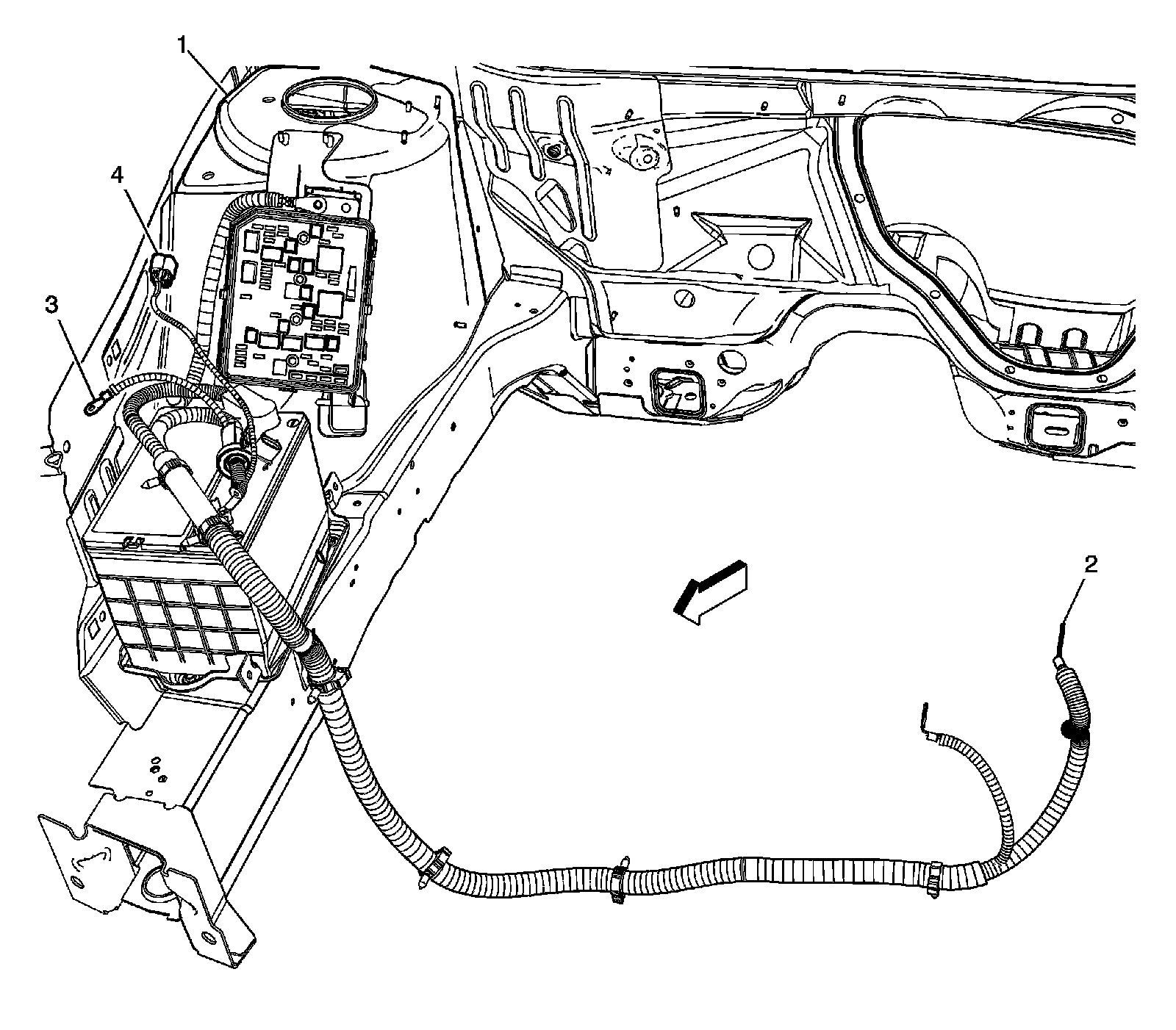

Battery Cable Harness
1
- RF Strut Tower
2
- G111
3
- G102
4
- C105
