Connector Views

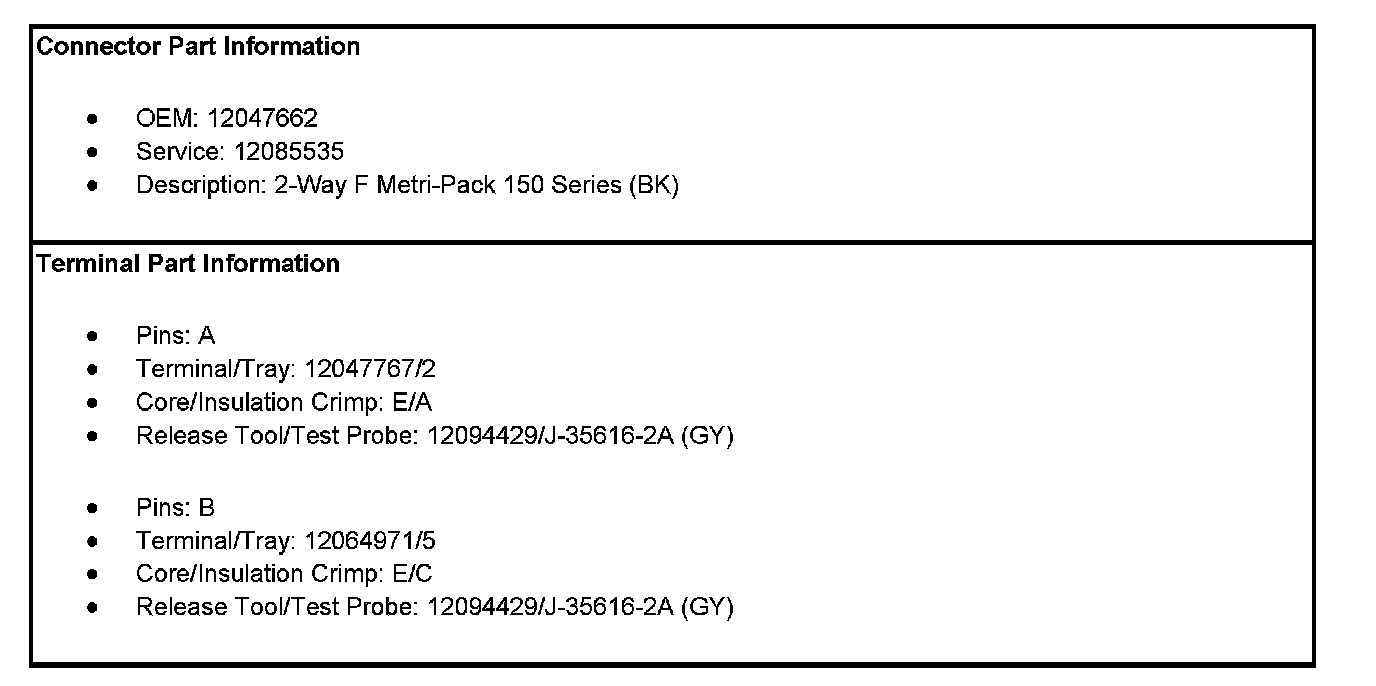

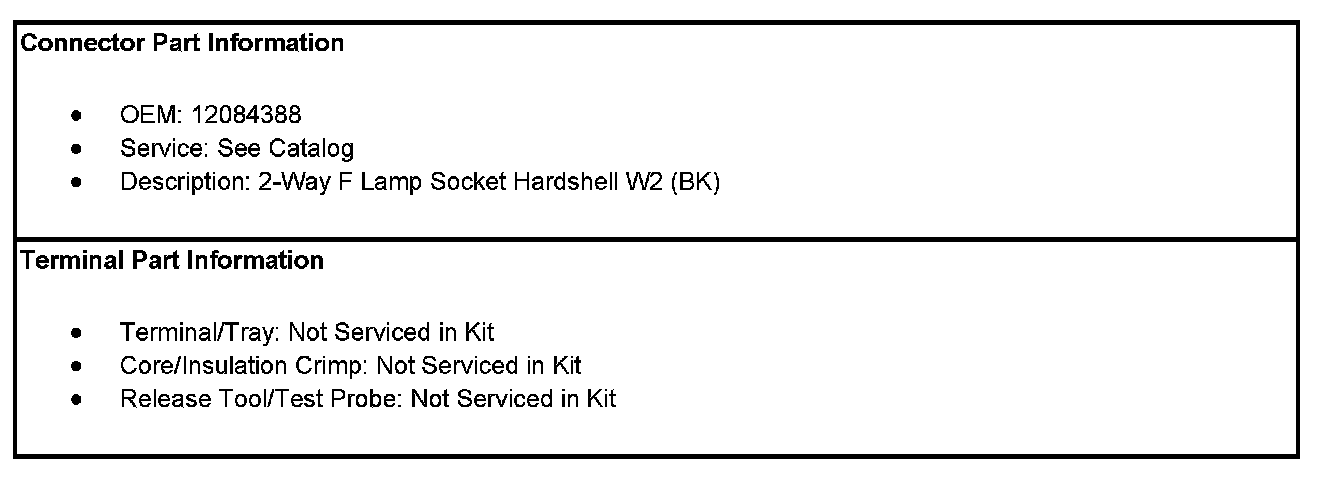

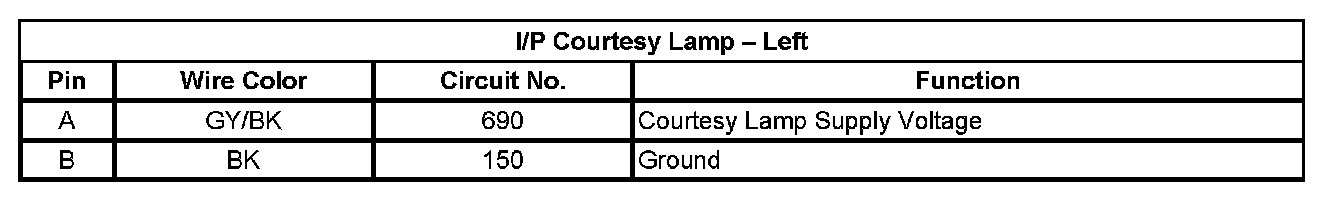

I/P Courtesy Lamp - Left

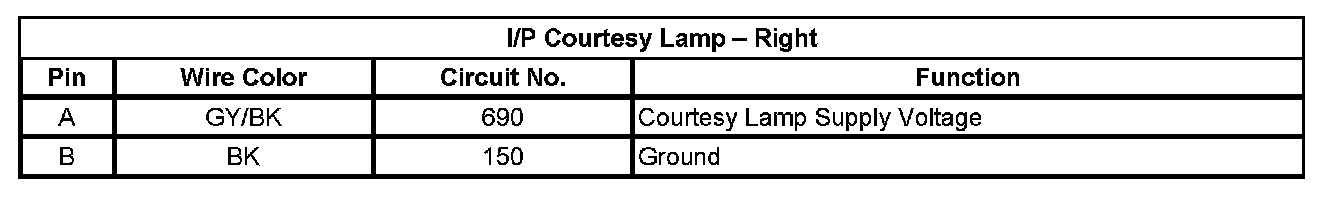

I/P Courtesy Lamp - Right













Rear Compartment Courtesy Lamp
