Home >> Chevrolet >> 2007 >> Monte Carlo V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Diagrams

Dome Lamp: Diagrams

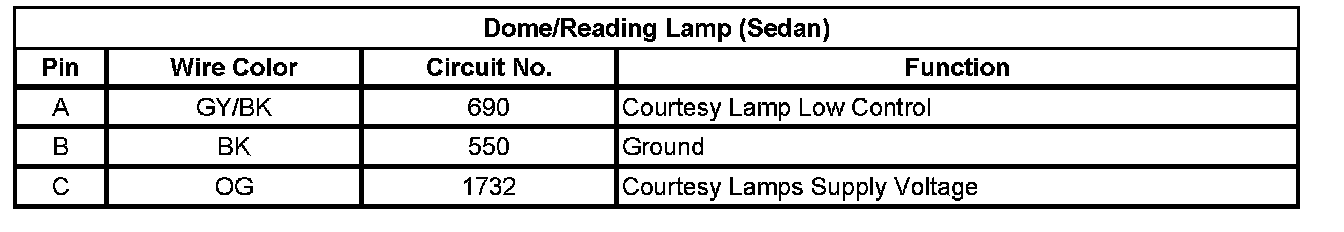

Dome/Reading Lamp (Sedan)
