Sealing Strip Replacement - Front Door Window Belt Outer

Sealing Strip Replacement - Front Door Window Belt Outer (Monte Carlo)

Removal Procedure

1. Remove the outside rearview mirror.

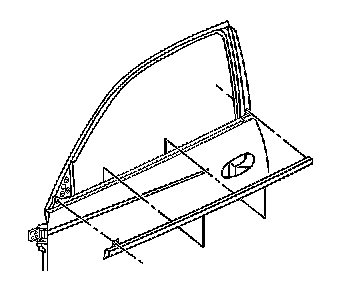

2. Remove the screws from the front door outer belt sealing strip.




3. Remove the front door outer belt sealing strip.

Installation Procedure

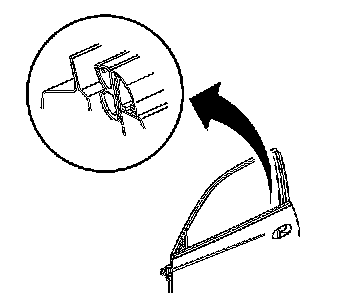

1. Position the front door outer belt sealing strip to the front door pinch-weld flange.




2. Install the front door outer belt sealing strip to the front door pinch-weld flange pressing into place until fully seated.

Notice: Refer to Fastener Notice.




3. Install the front screw to front door outer belt sealing strip.

Tighten the outer belt sealing strip front screw to 2 N.m (18 lb in).

4. Install the screw to the front door outer belt sealing strip.

Tighten the outer belt sealing strip machine rear screw to 5 N.m (9 lb in).

5. Install the outside rearview mirror.
