Home
>>
Chevrolet
>>
2007
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Connector Views
Connector Views

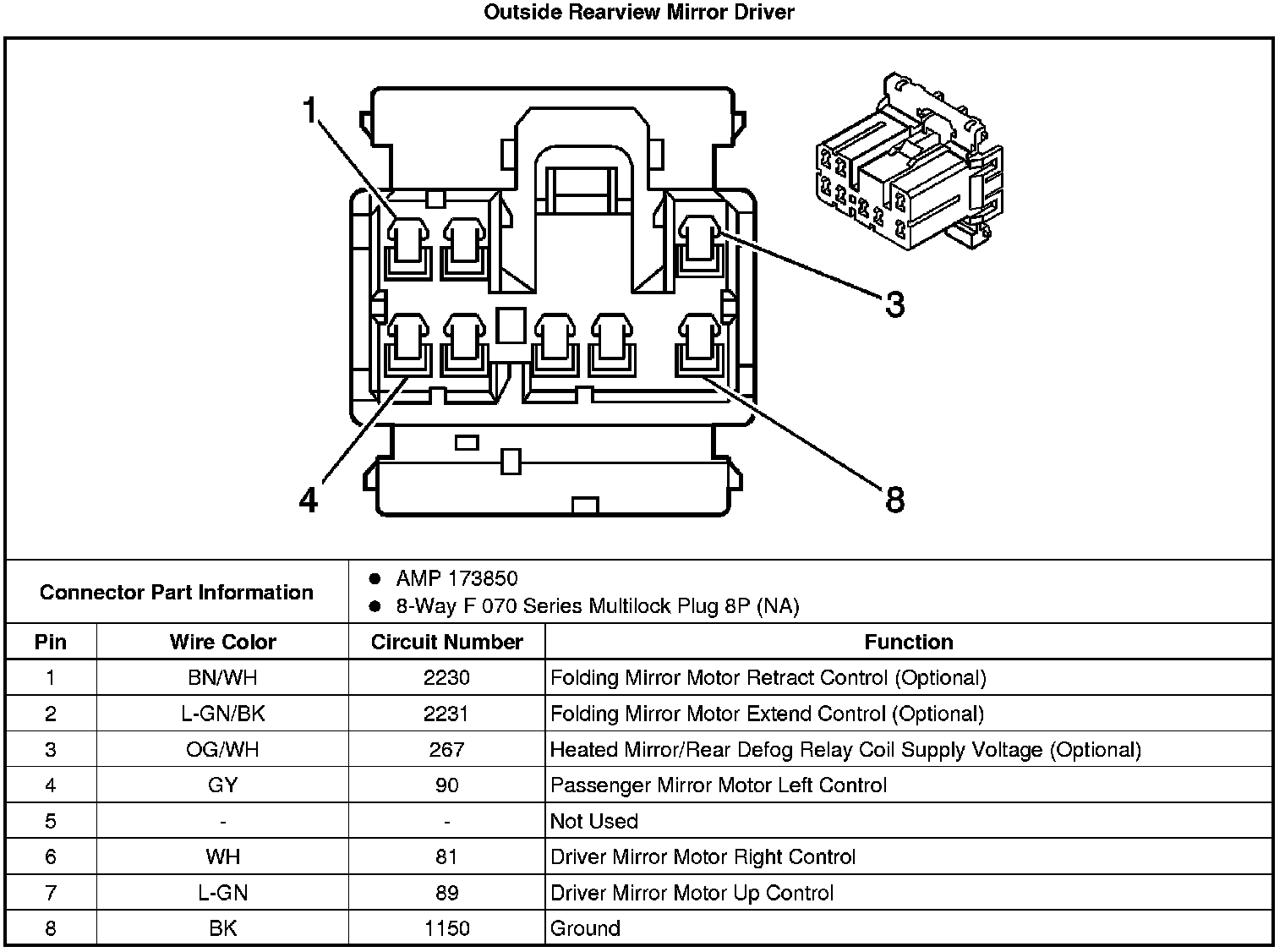

Mirror Connector End Views
