System Diagram



ENGINE CONTROLS SCHEMATICS

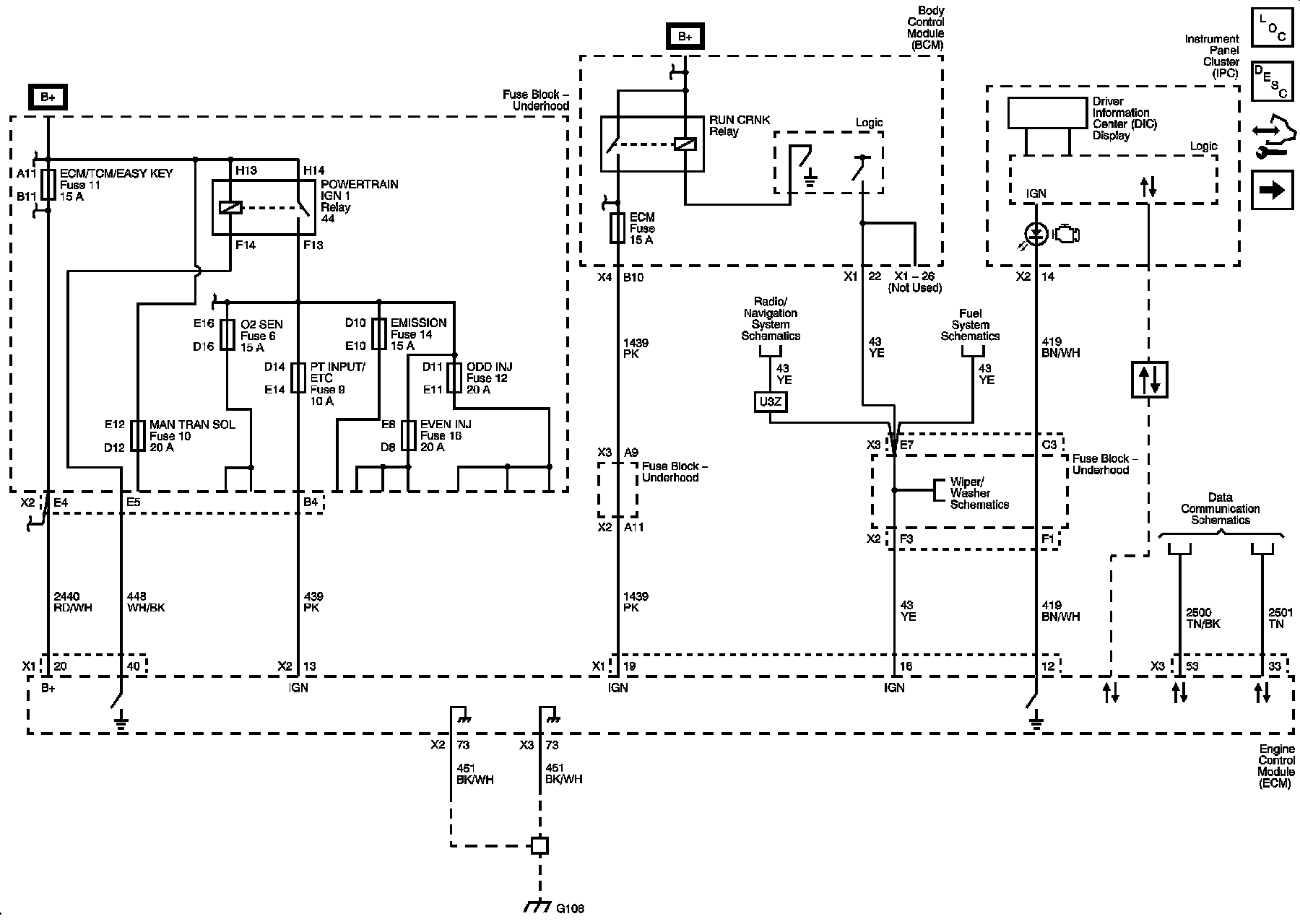

ECM Power, Ground, MIL, and Serial Data

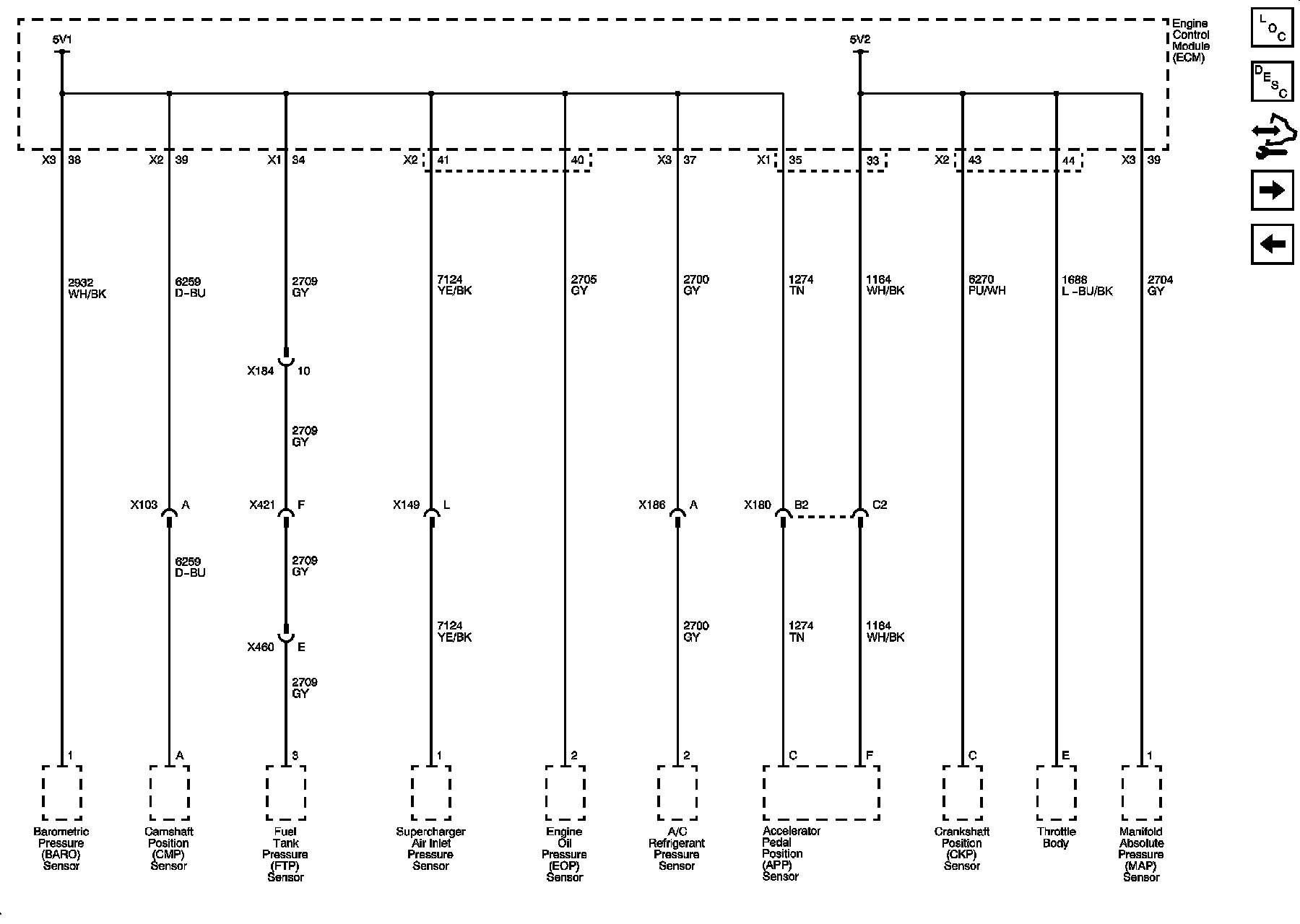

5-Volt Reference Bussing

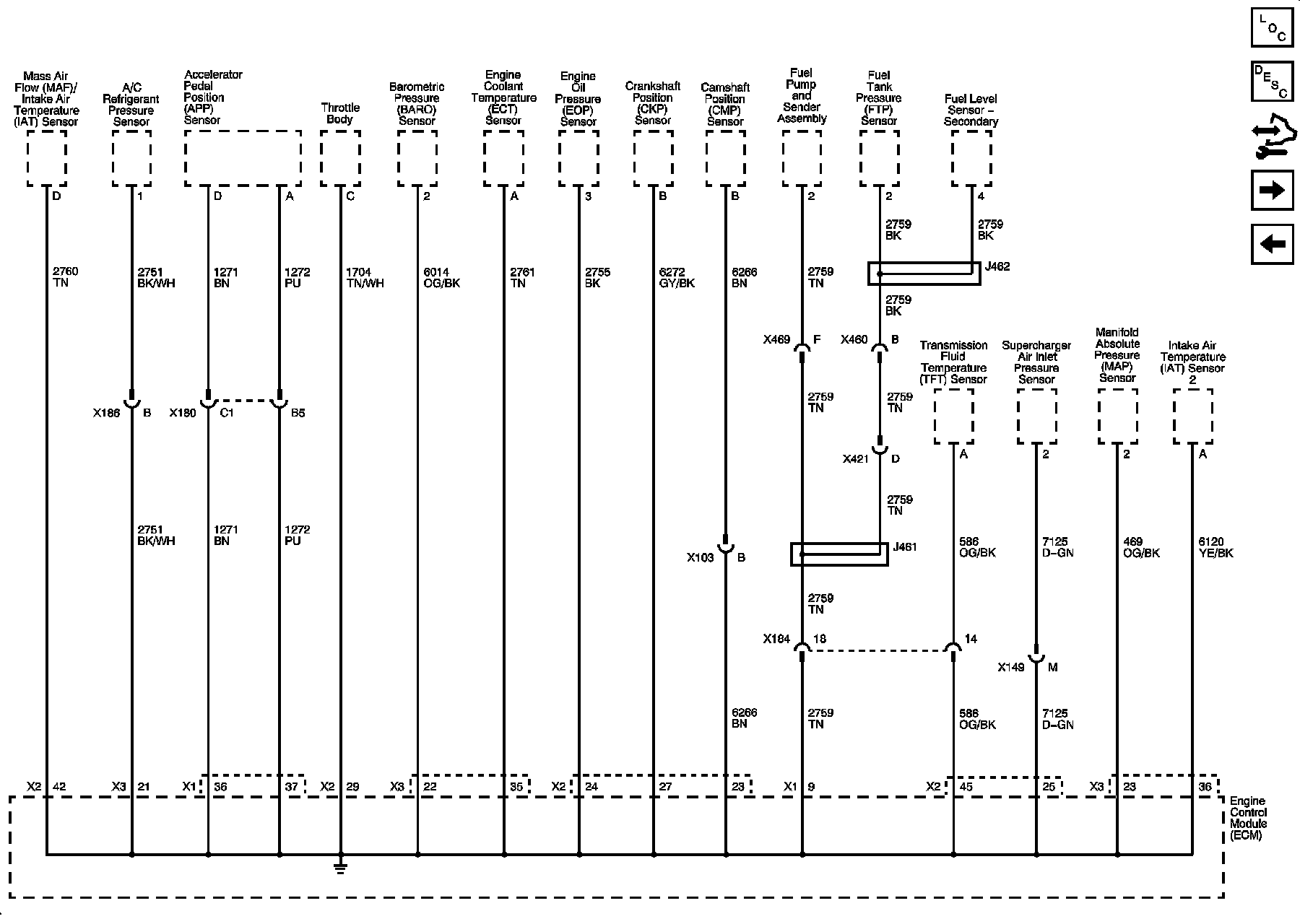

Low Reference Bussing

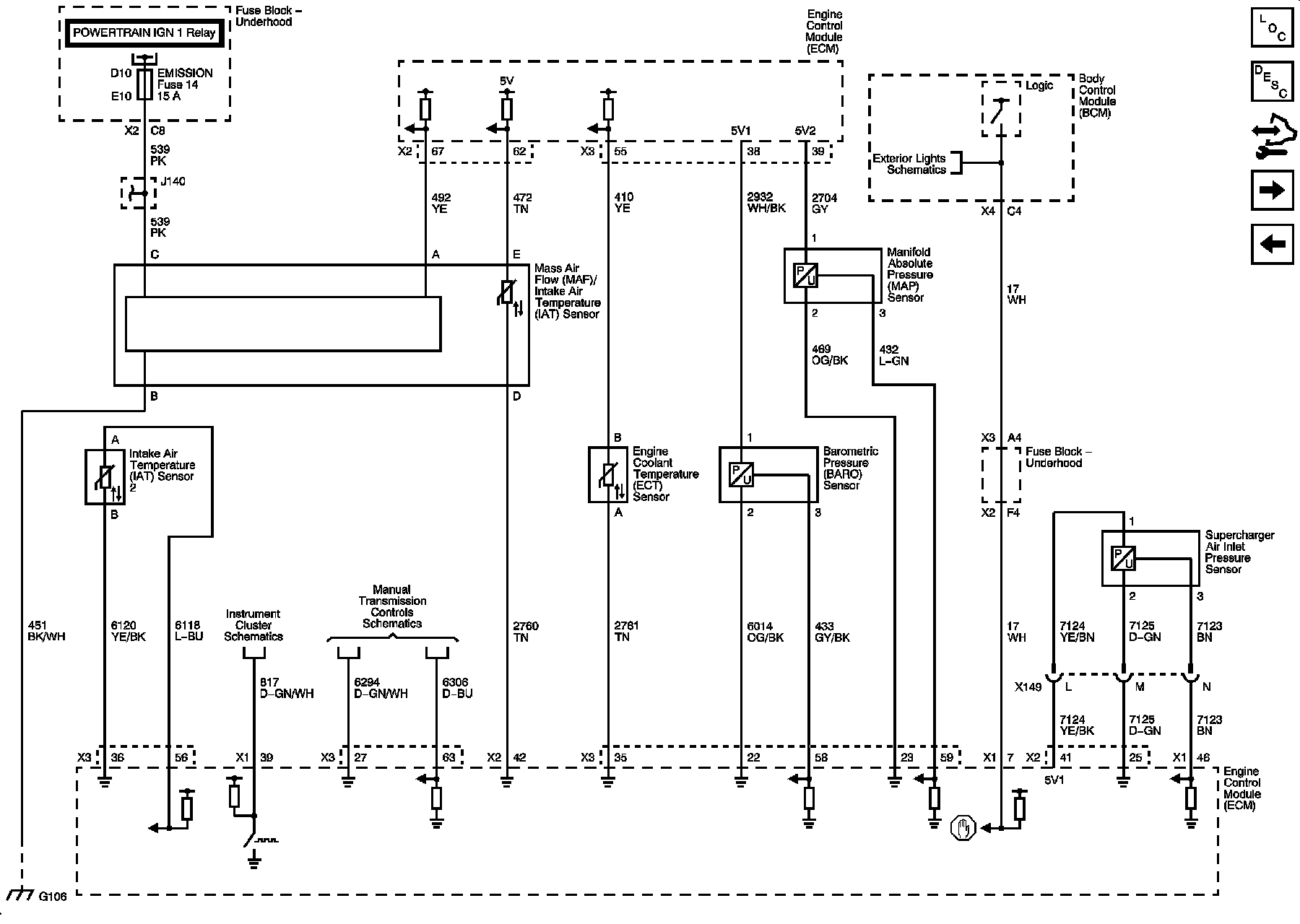

MAF/IAT, MAP, ECT Sensor, Intake Air Temperature (IAT) Sensor 2, Supercharger Air Inlet Pressure Sensor, Supercharger Air Outlet Pressure Sensor

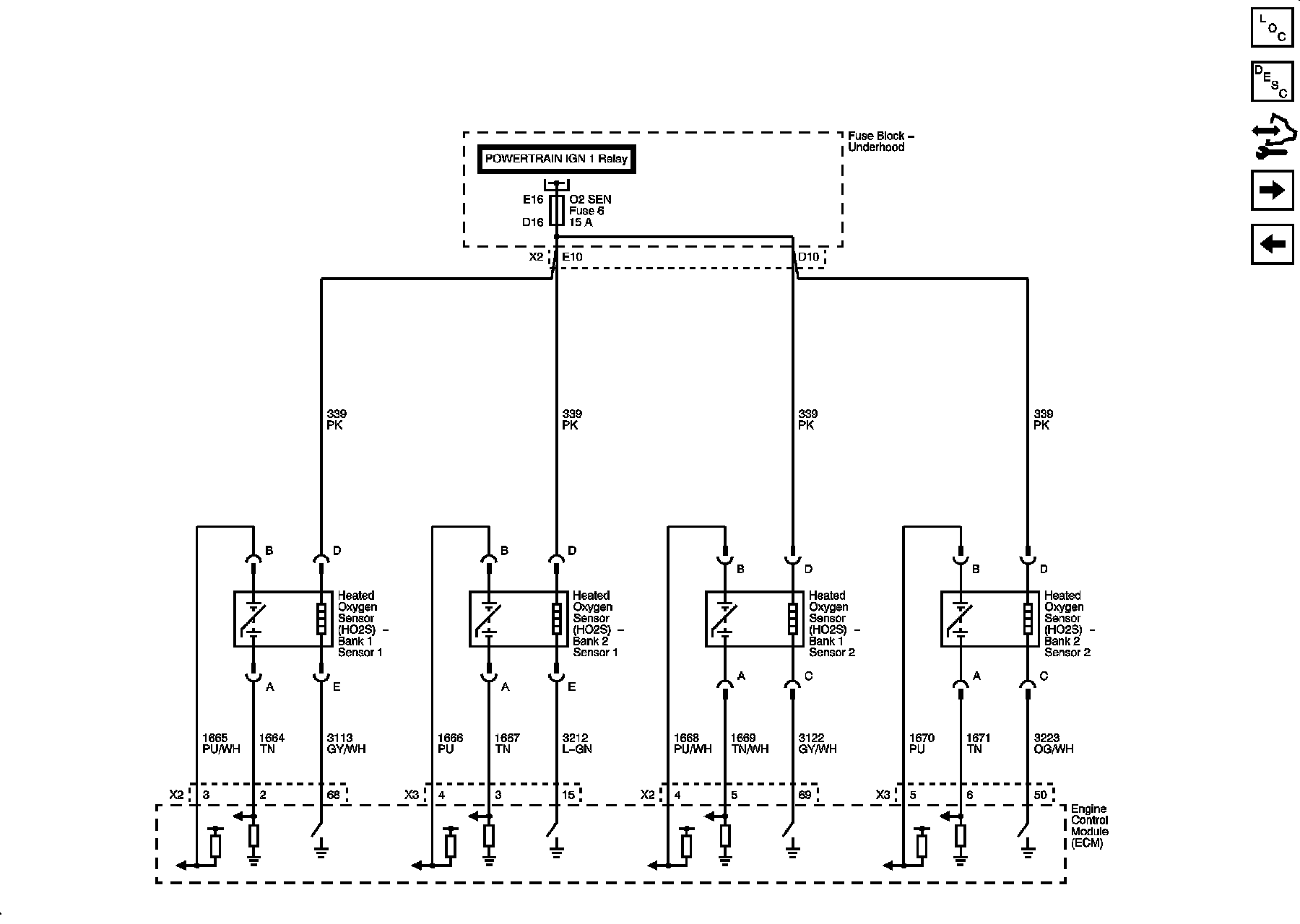

Heated Oxygen Sensors

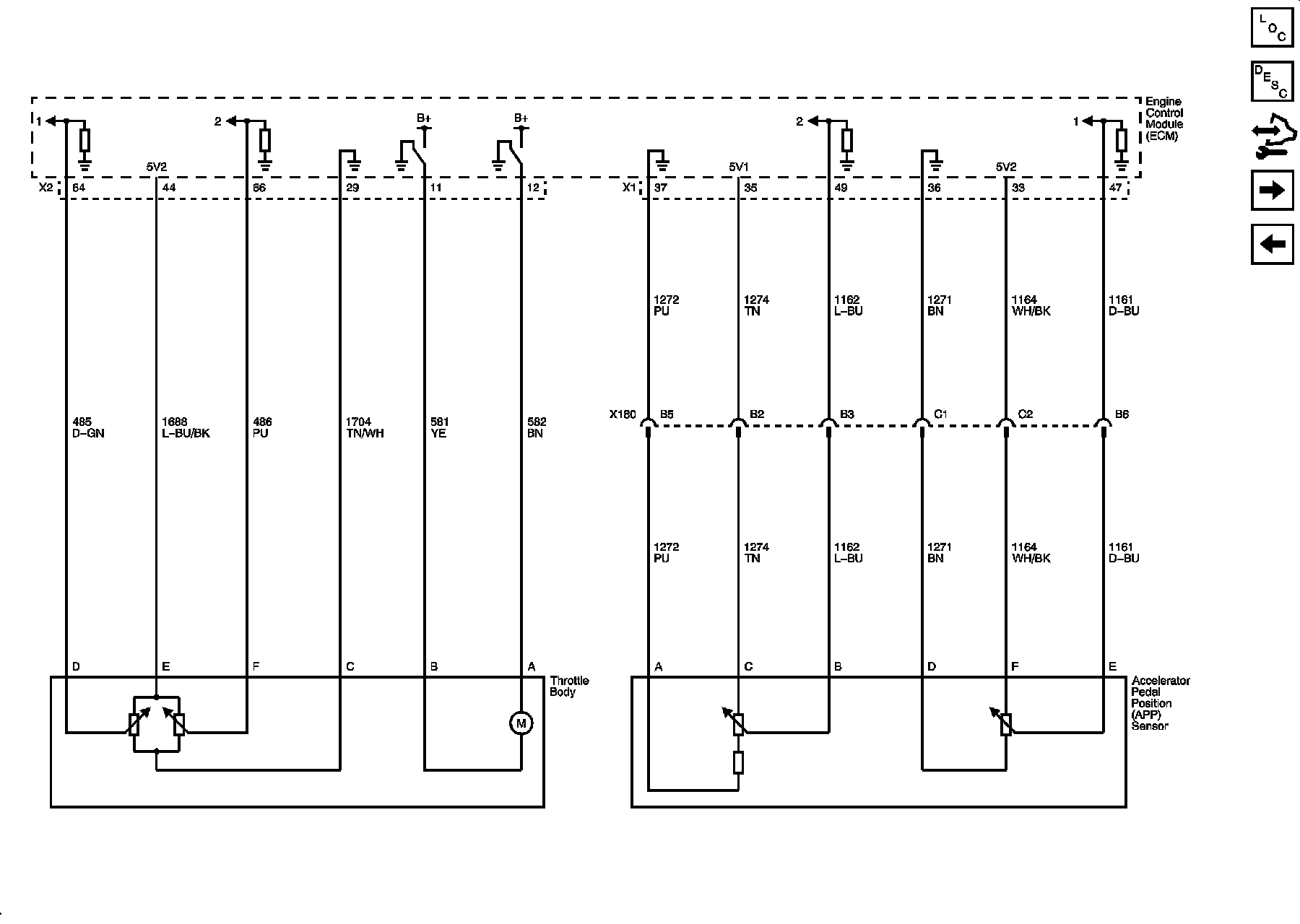

Electronic Throttle Controls







Fuel Injectors

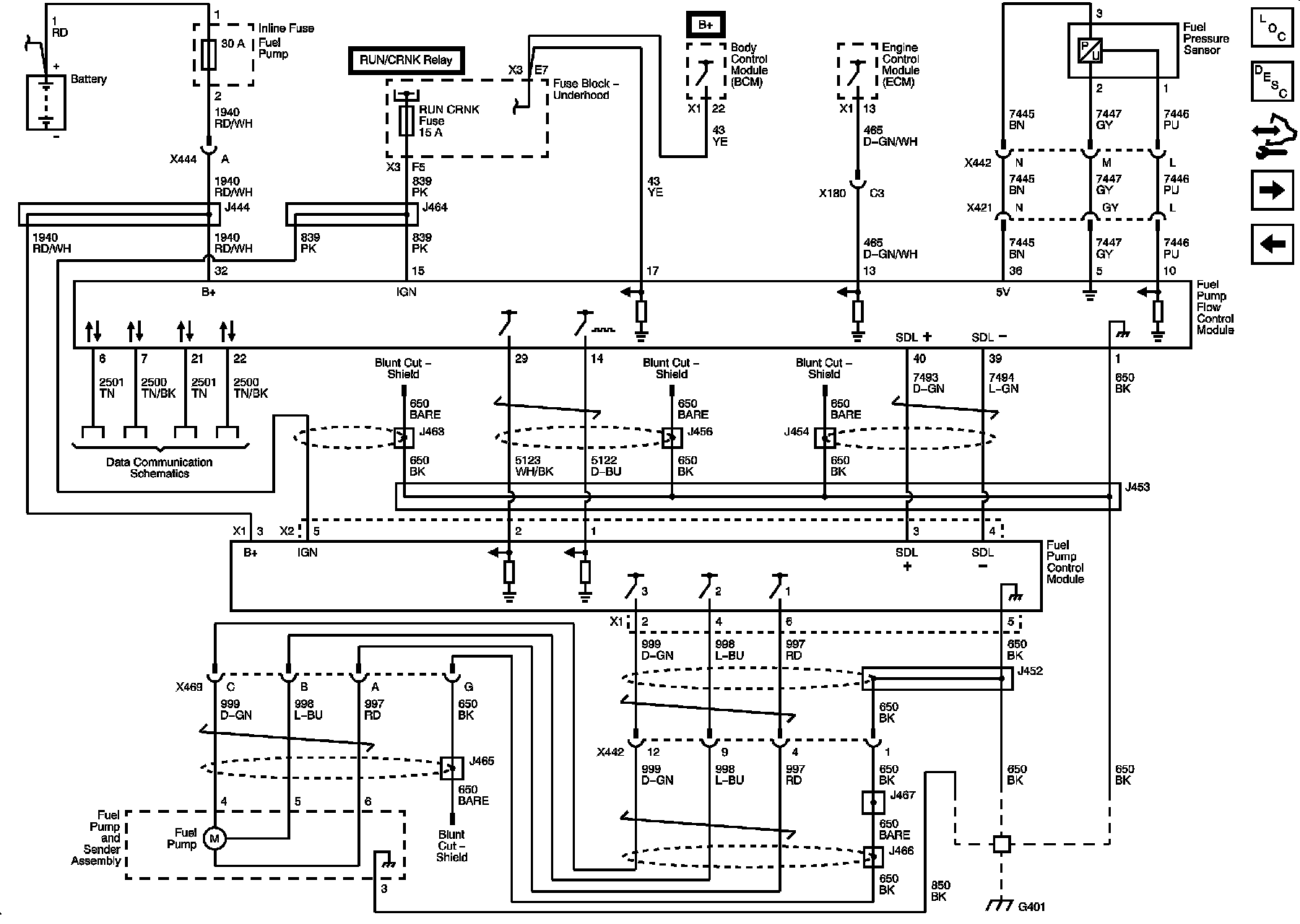

Fuel Pump Controls

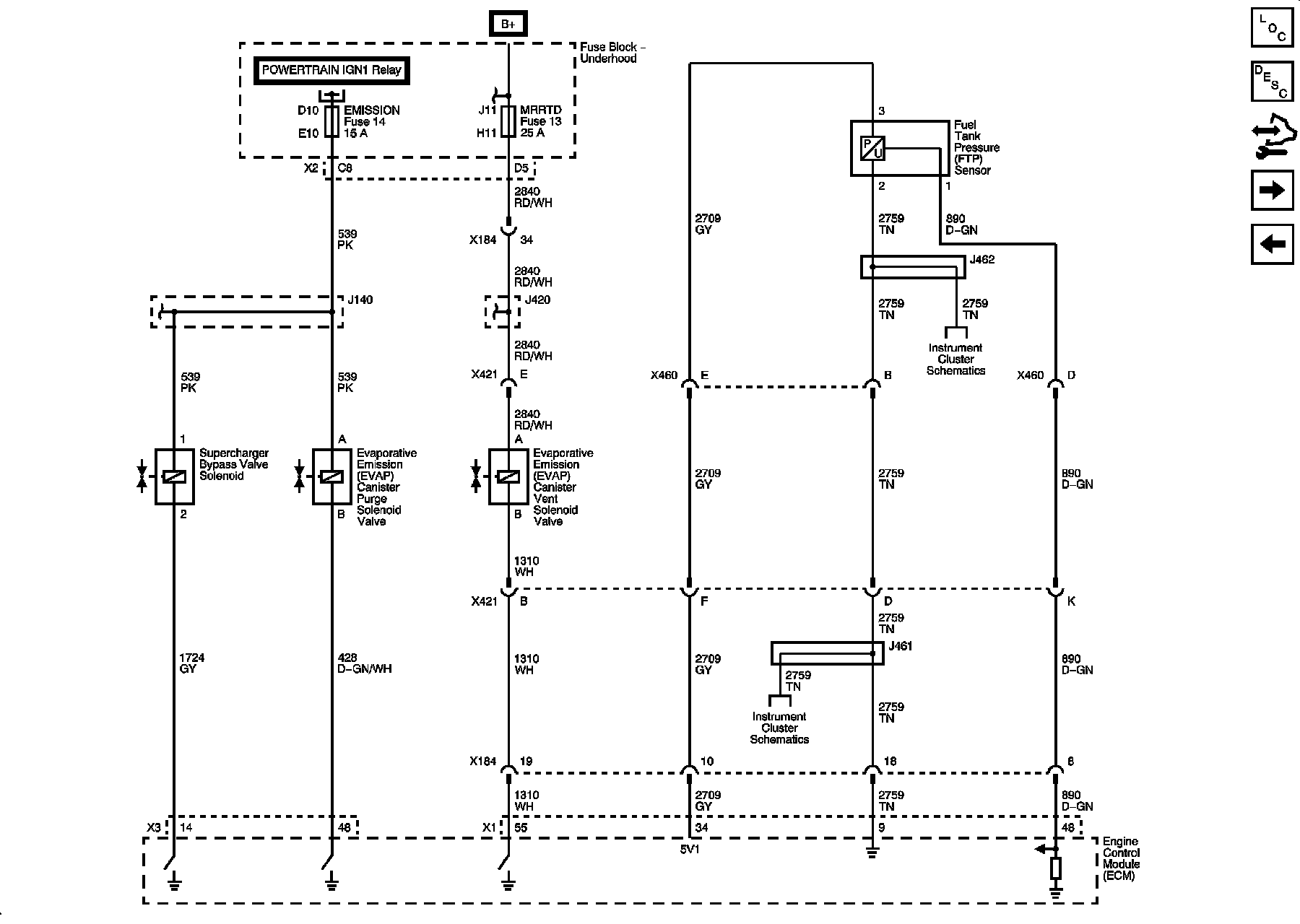

EVAP Solenoids, FTP Sensor, and Supercharger Bypass Valve Solenoid







Ignition Controls Bank 1 (Odd) Ignition Coils

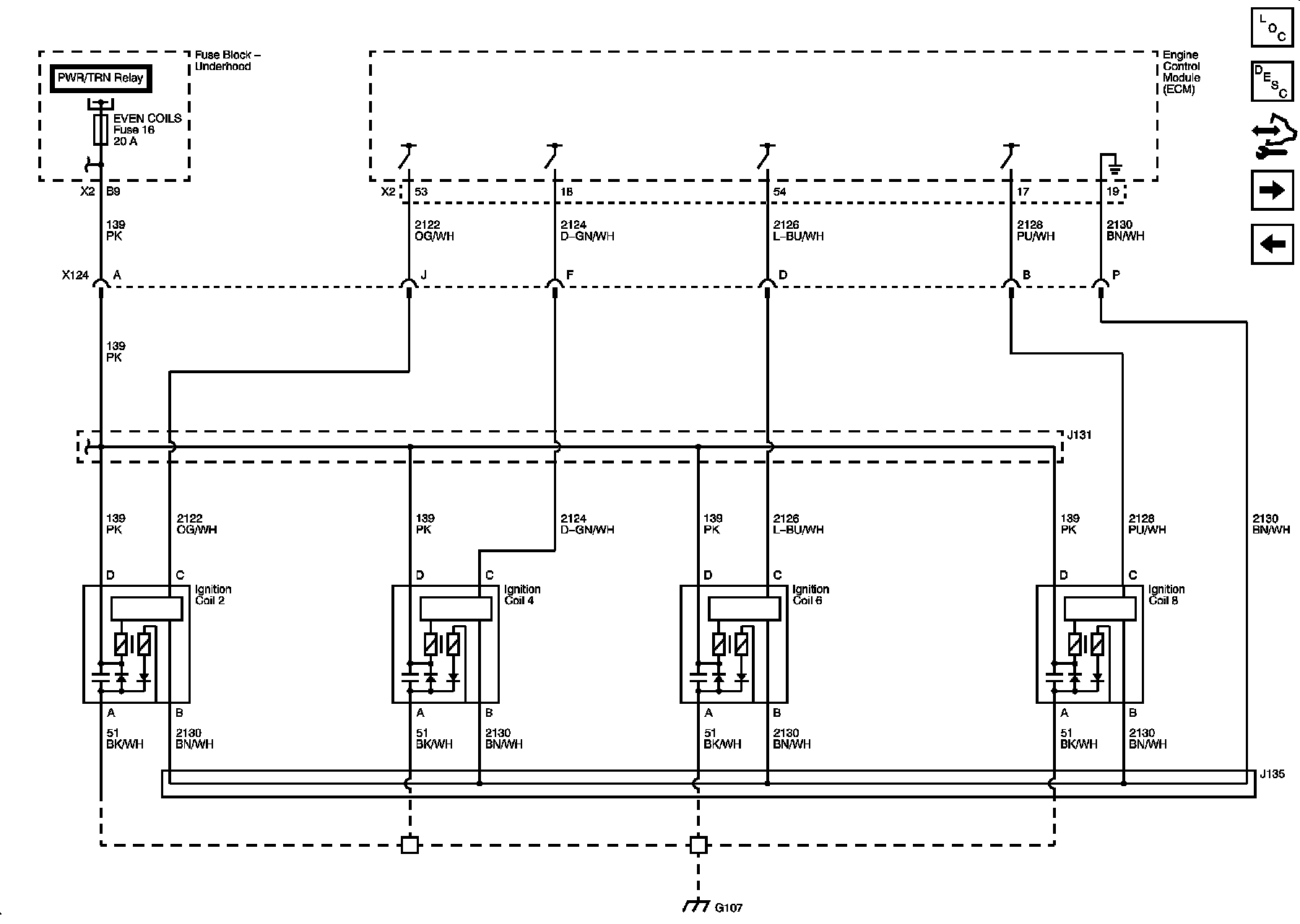

Ignition Controls Bank 2 (Even) Ignition Coils

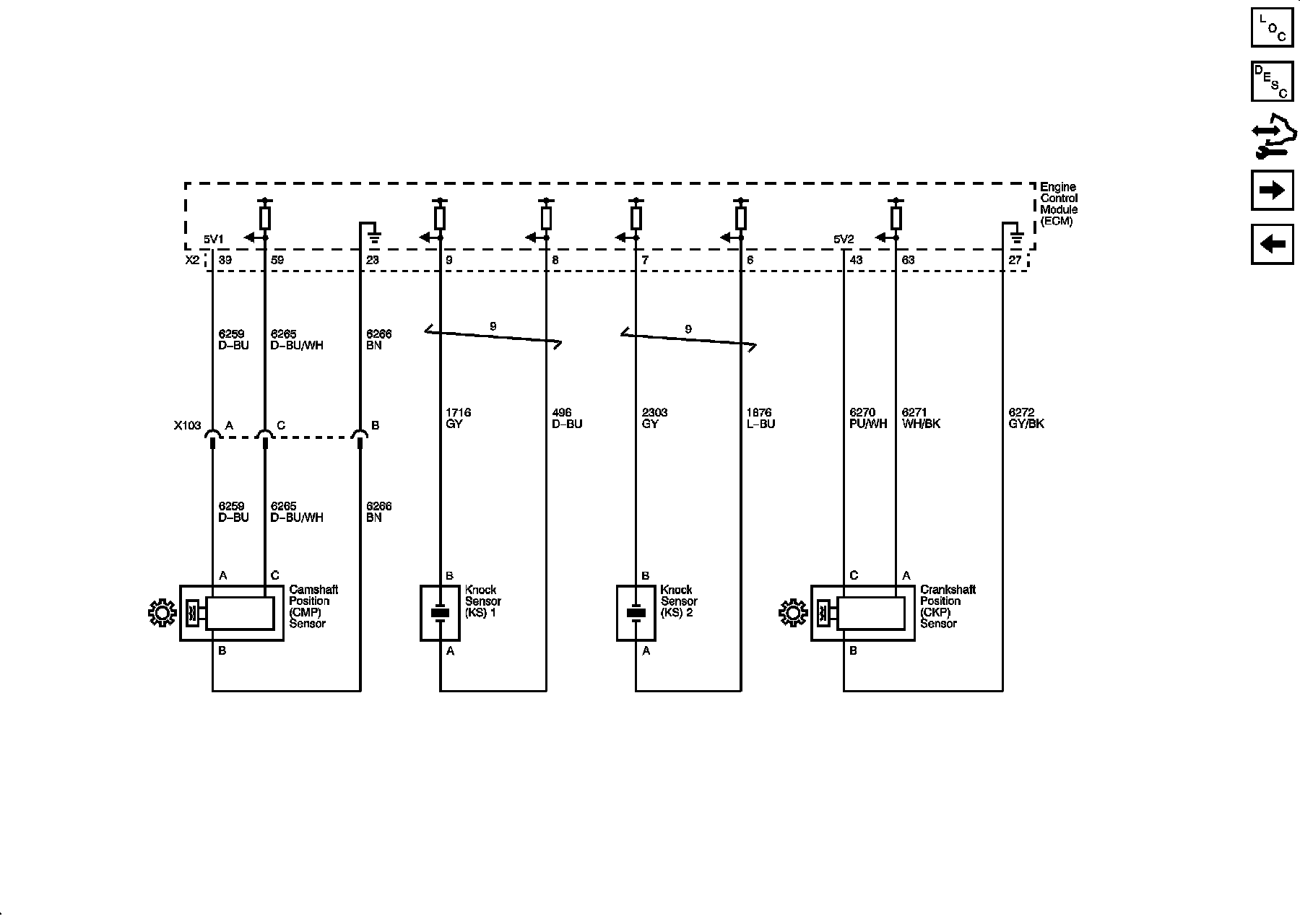

Ignition Controls - CMP, CKP, and KS Sensors







Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
