Barometric Pressure Sensor
Barometric Pressure Sensor

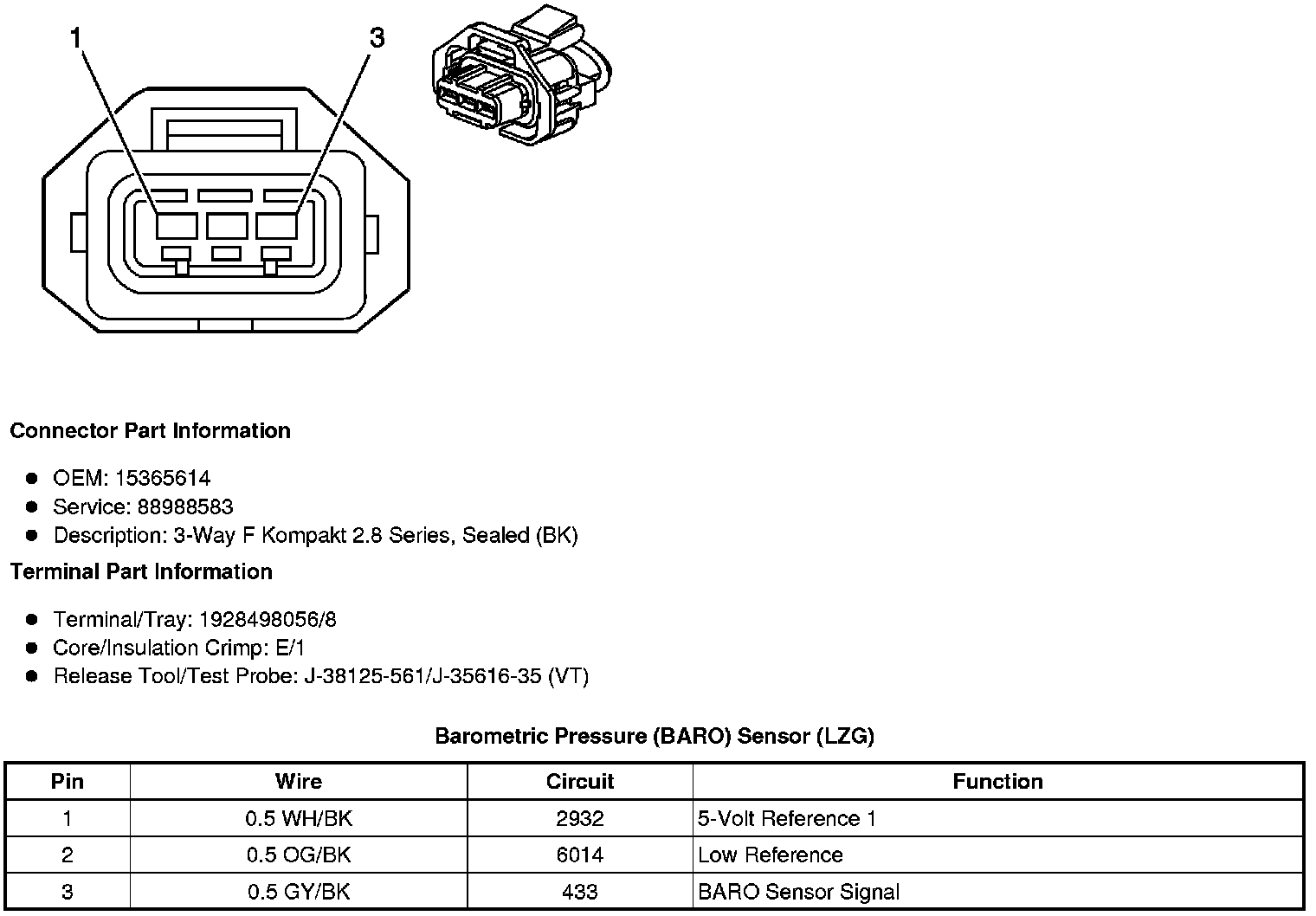

Component Connector End Views
Barometric Pressure (BARO) Sensor (LZG-3.9L Flex Fuel)
