Lifter / Lash Adjuster, Valve
Lifter / Lash Adjuster, Valve

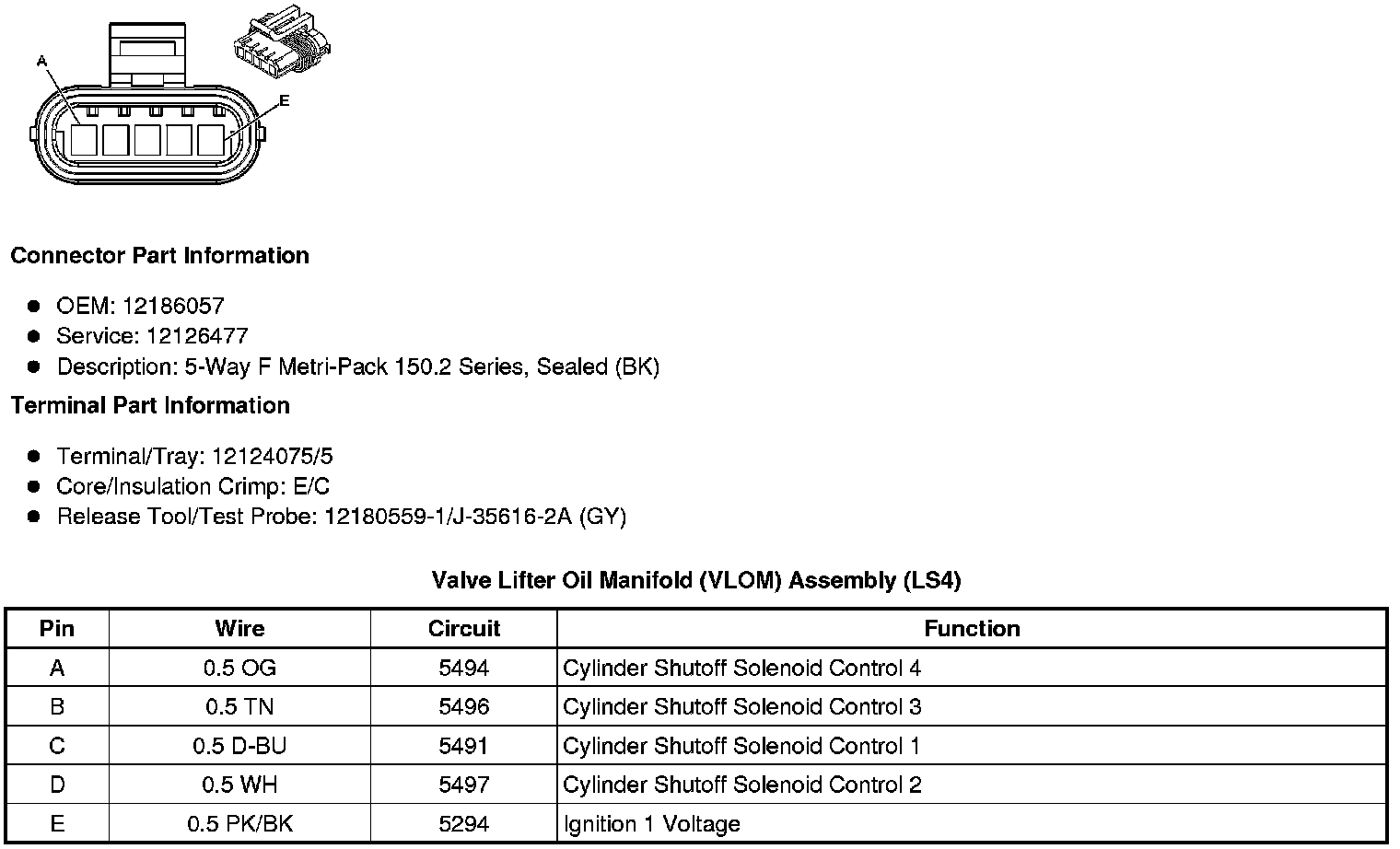

Component Connector End Views
Valve Lifter Oil Manifold (VLOM) Assembly (LS4-5.3L)
