Courtesy Lamp
Component Connector End Views
Rear Compartment
Courtesy Lamp

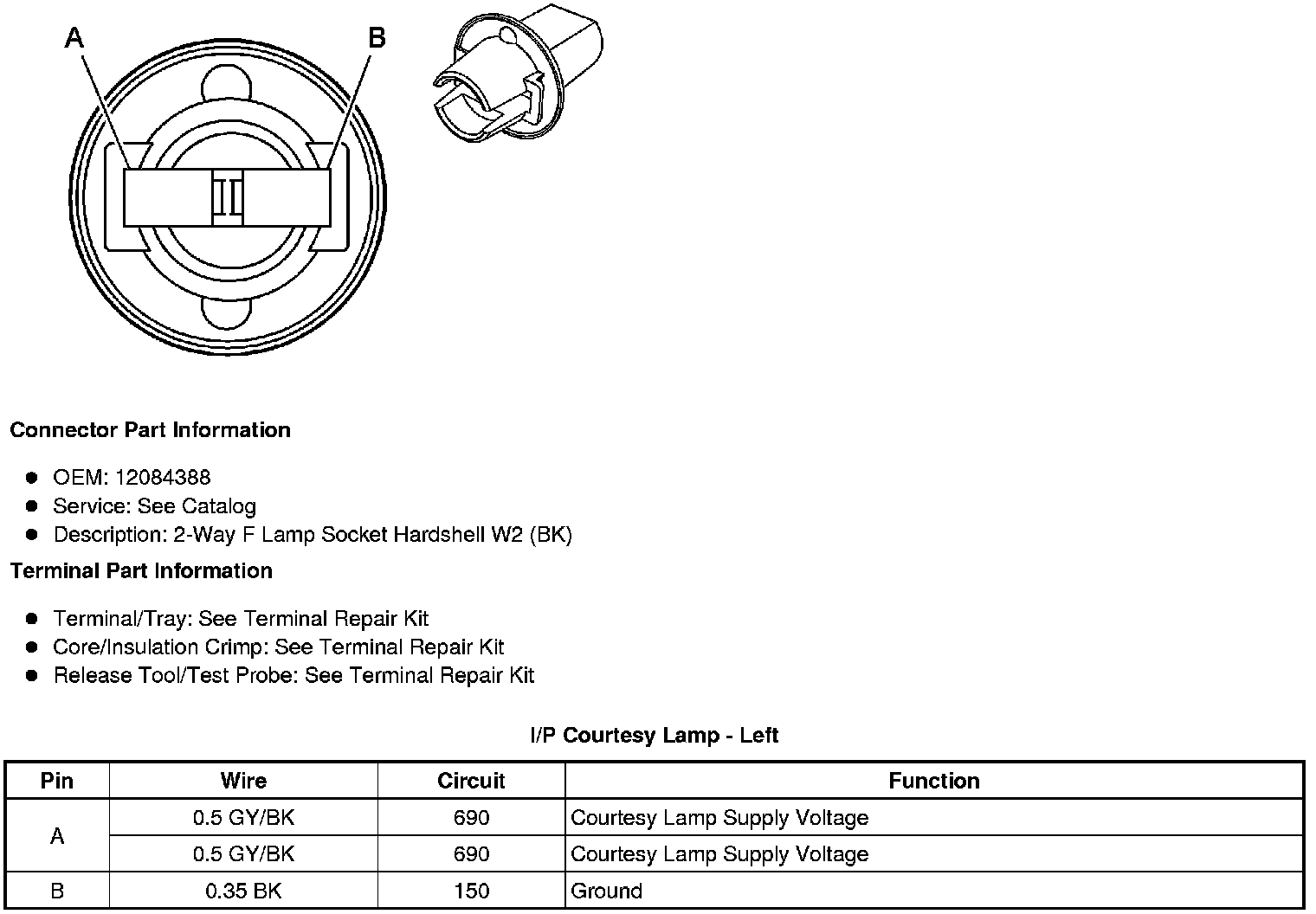

I/P Courtesy Lamp - Left

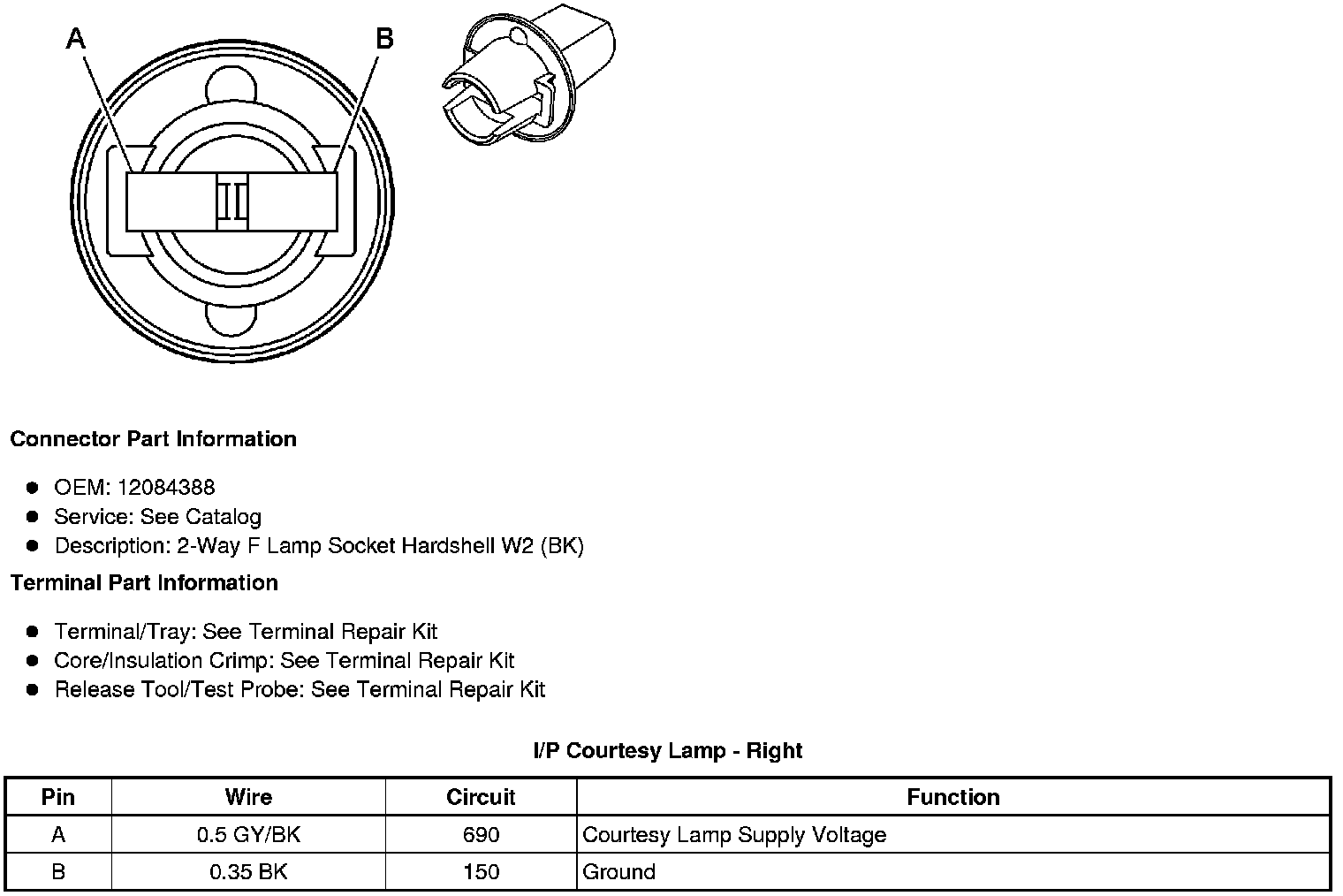

I/P Courtesy Lamp - Right
