Antilock Brakes / Traction Control Systems




Antilock Brake System Schematics (HP7)

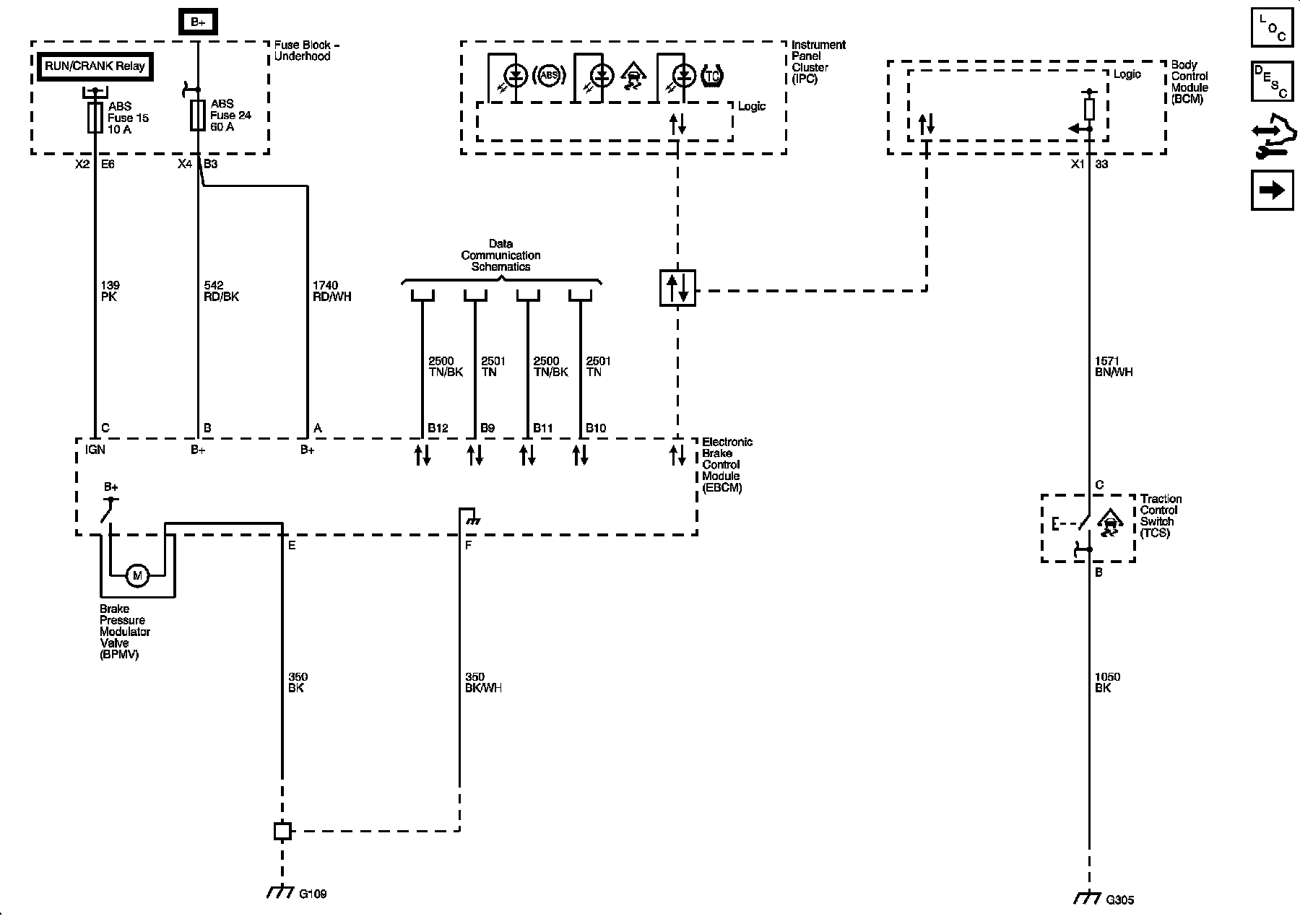

Power, Ground, DLC, Traction Control Switch, Brake Pedal Position Sensor, and Indicators





Wheel Speed Sensors

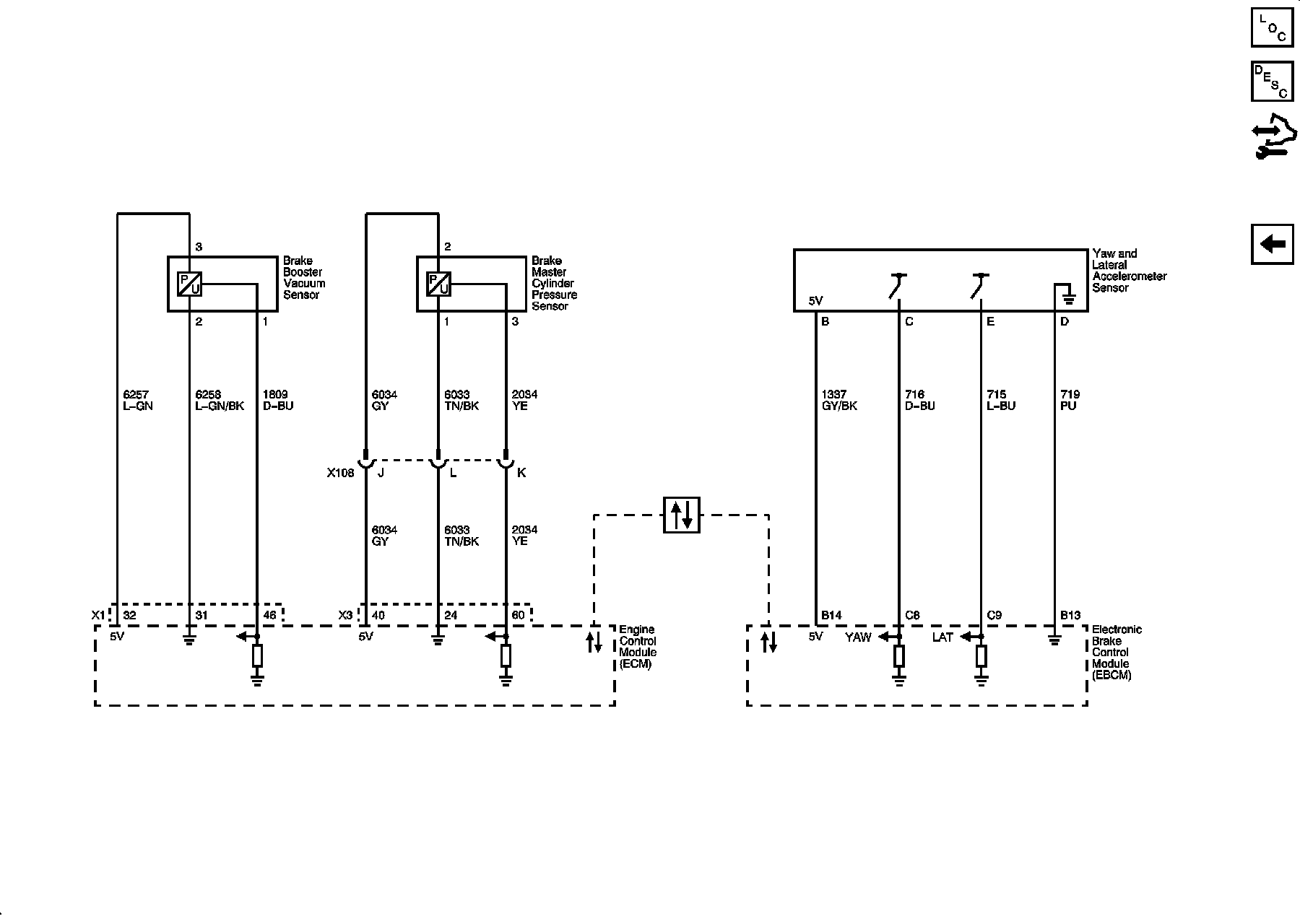

Yaw Rate and Lateral Acceleration Sensor and Brake Fluid Pressure Sensor
