Connector Views
Component Connector End Views

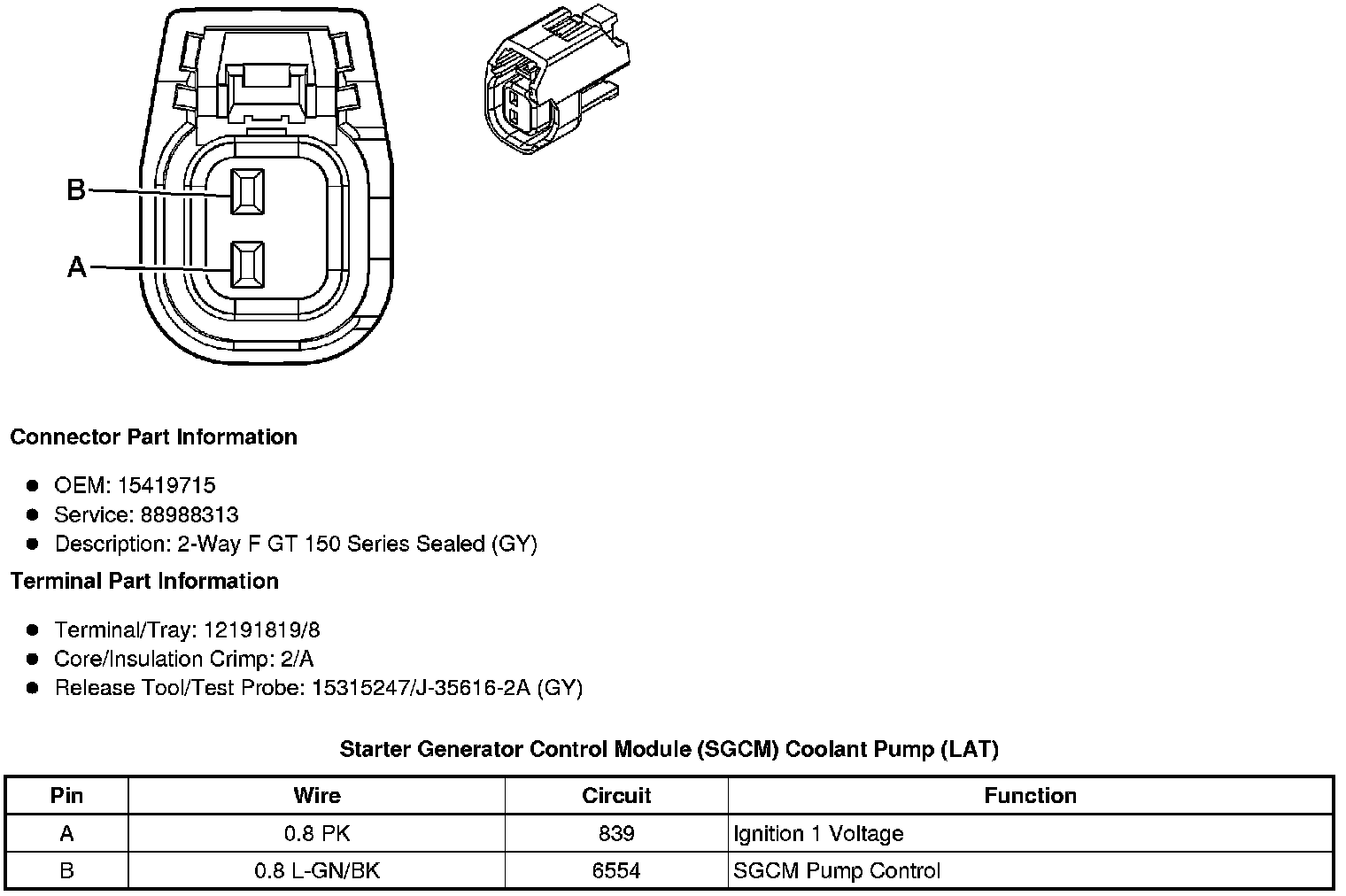

Starter Generator Control Module (SGCM) Coolant Pump (LAT)
