Drive Motor/Generator: Diagrams




Component Connector End Views

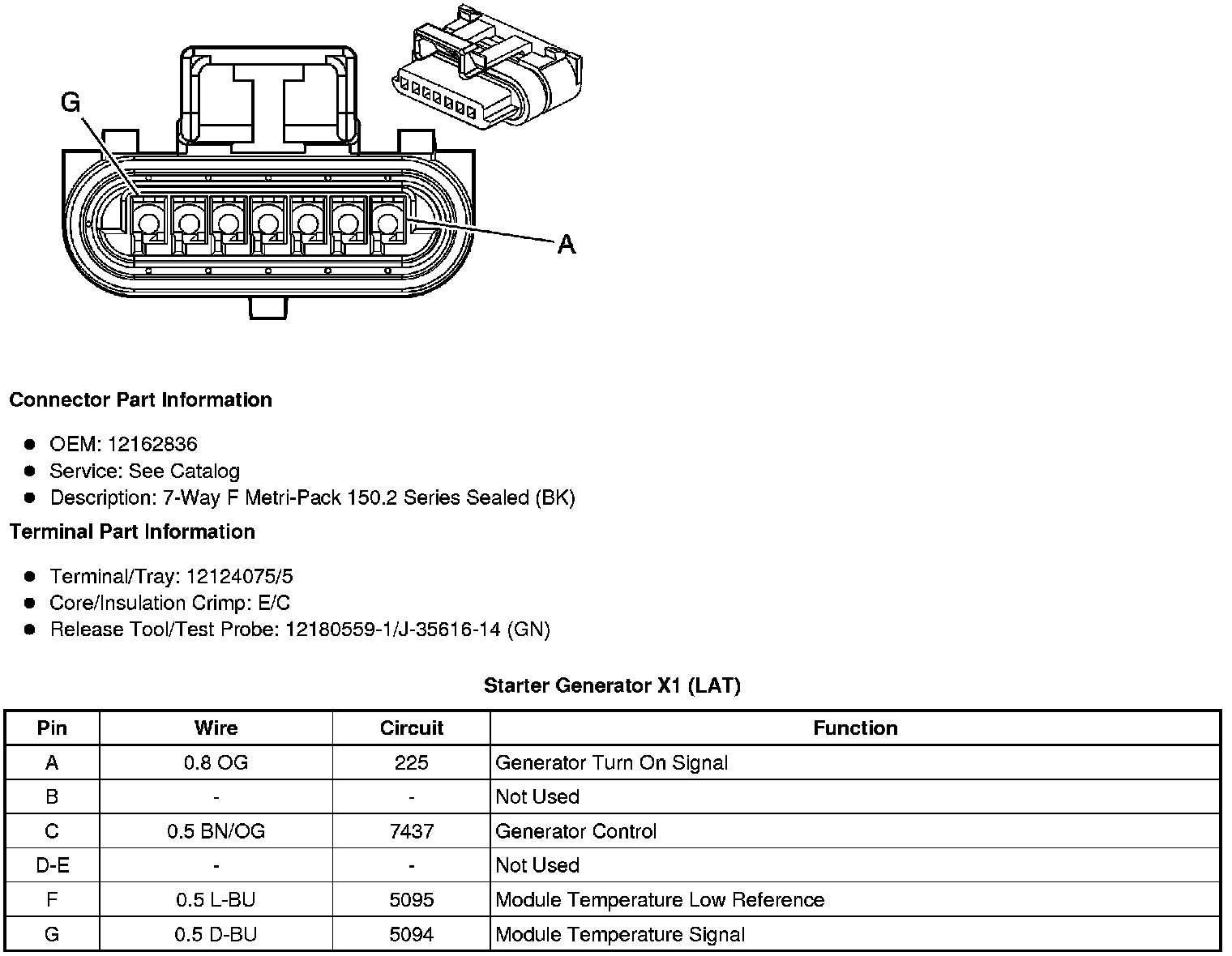

Starter Generator X1 (LAT)

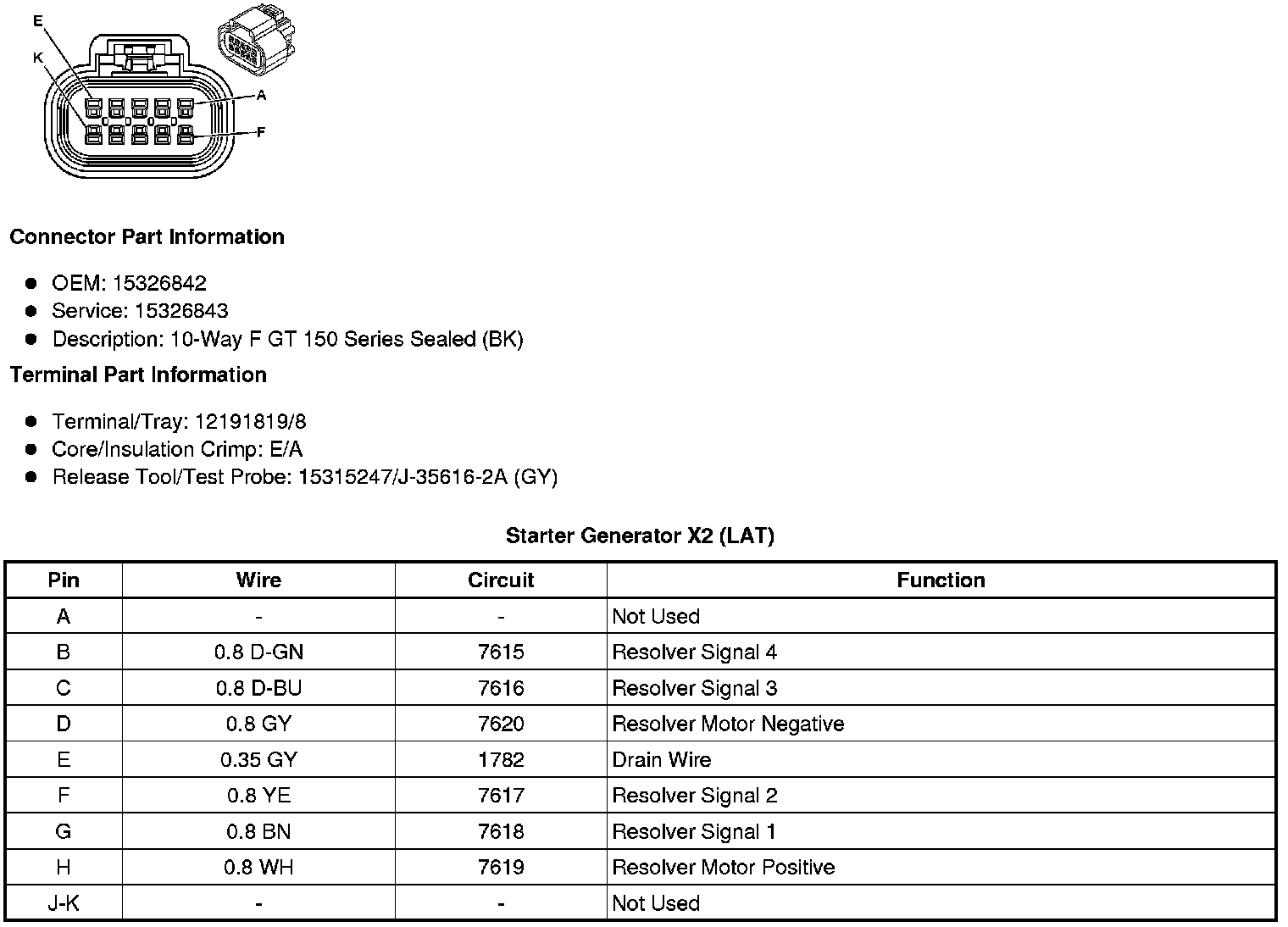

Starter Generator X2 (LAT)

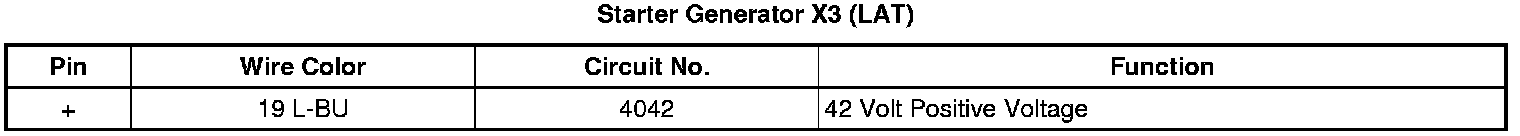

Starter Generator X3 (LAT)










Starter Generator X4 (LAT)
