Tail Lamp: Diagrams
Component Connector End Views

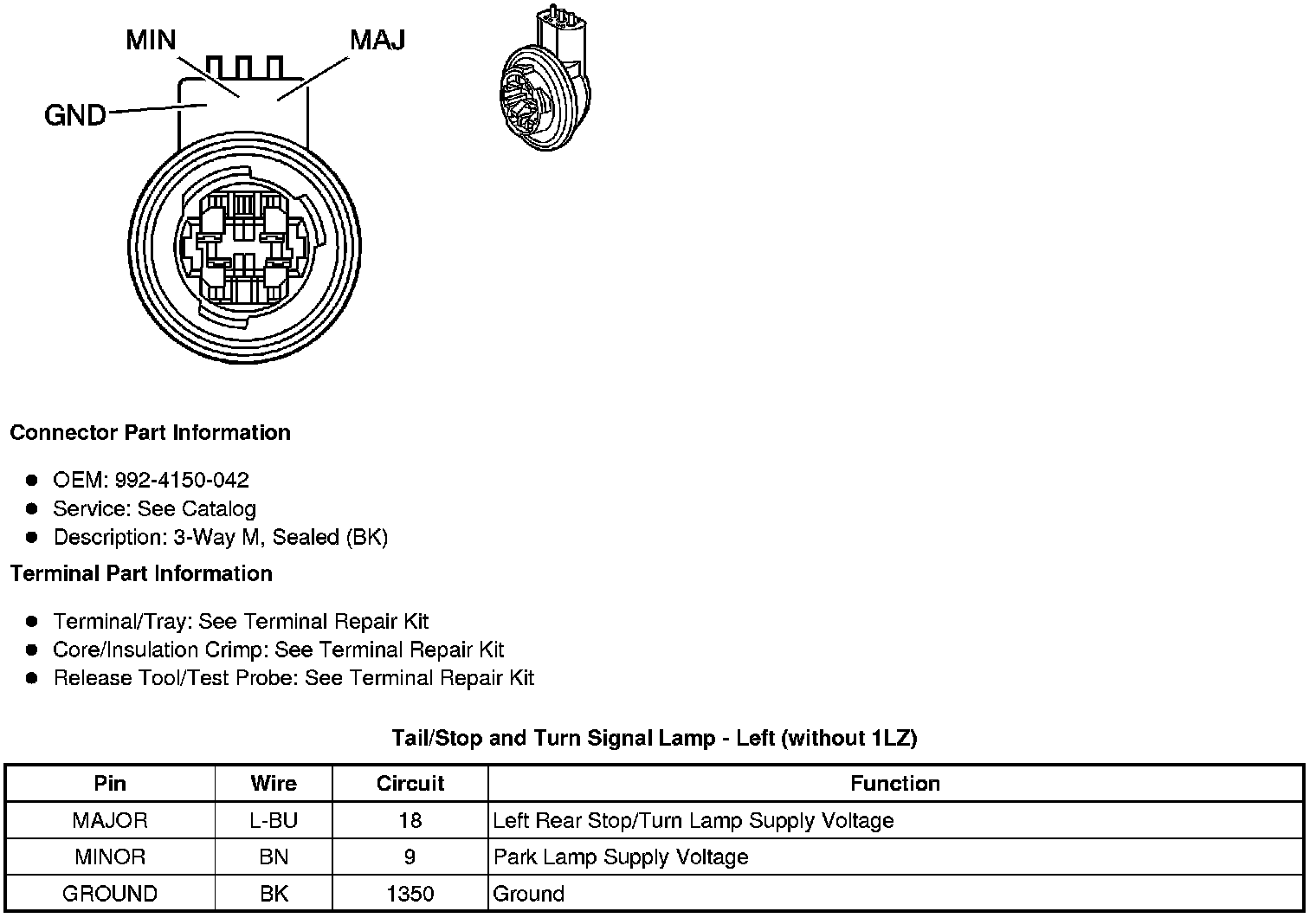

Tail/Stop and Turn Signal Lamp - Left (without 1LZ)

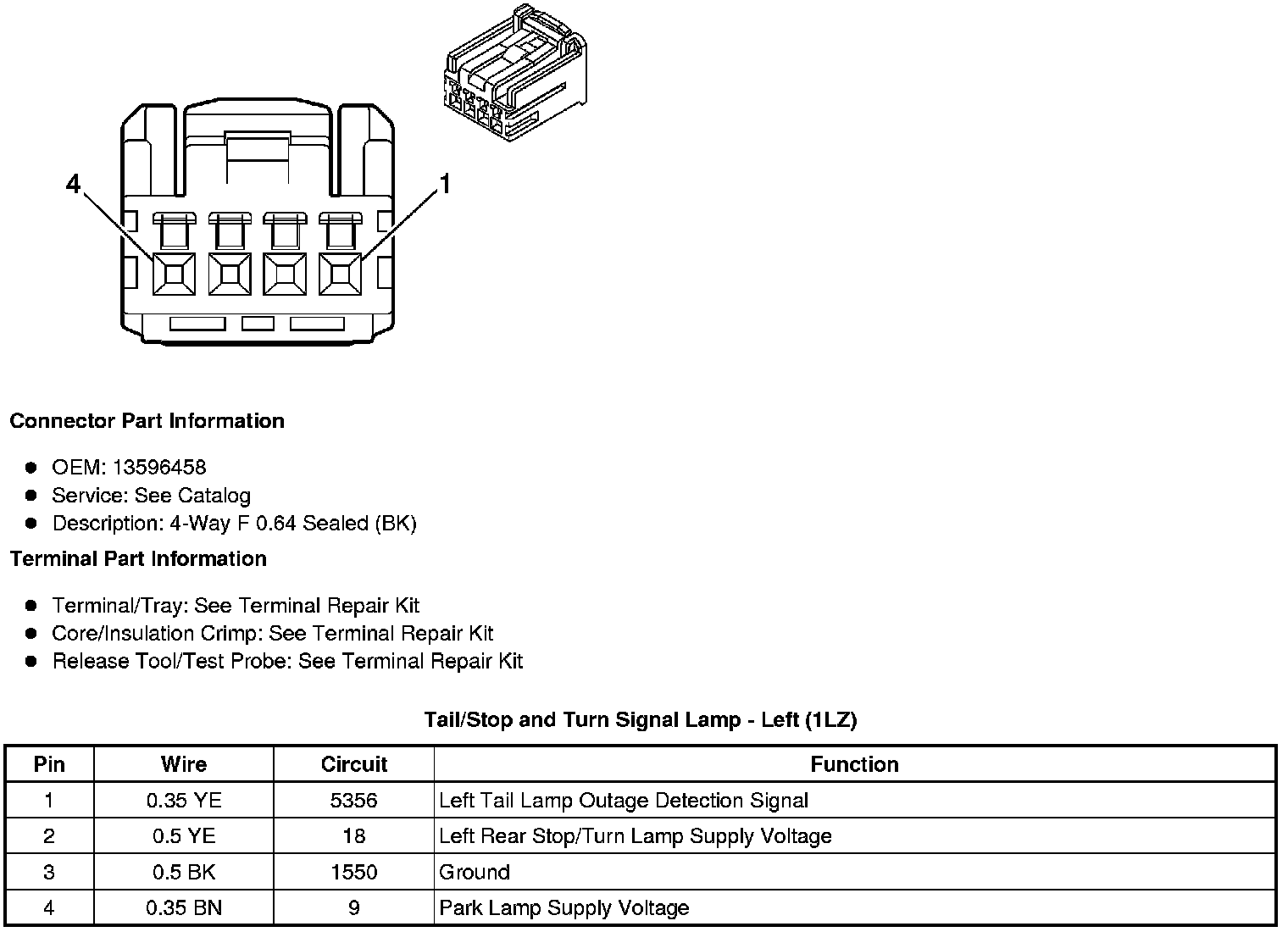

Tail/Stop and Turn Signal Lamp - Left (1LZ)
Tail/Stop and Turn Signal Lamp - Right (without 1LZ)
Tail/Stop and Turn Signal Lamp - Right (1LZ)
Component Connector End Views
Tail/Stop and Turn Signal Lamp - Left (without 1LZ)
Tail/Stop and Turn Signal Lamp - Left (1LZ)
Tail/Stop and Turn Signal Lamp - Right (without 1LZ)
Tail/Stop and Turn Signal Lamp - Right (1LZ)
