Instrument Cluster Head-Up Display Replacement

Instrument Cluster Head-Up Display Replacement

Removal Procedure




1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS3) (Battery Negative Cable Disconnection and Connection) Battery Negative Cable Disconnection and Connection (LS7 or LS9) (Battery Negative Cable Disconnection and Connection).
2. Remove the instrument panel (I/P) assembly. Refer to Instrument Panel Assembly Replacement (Instrument Panel Assembly Replacement).

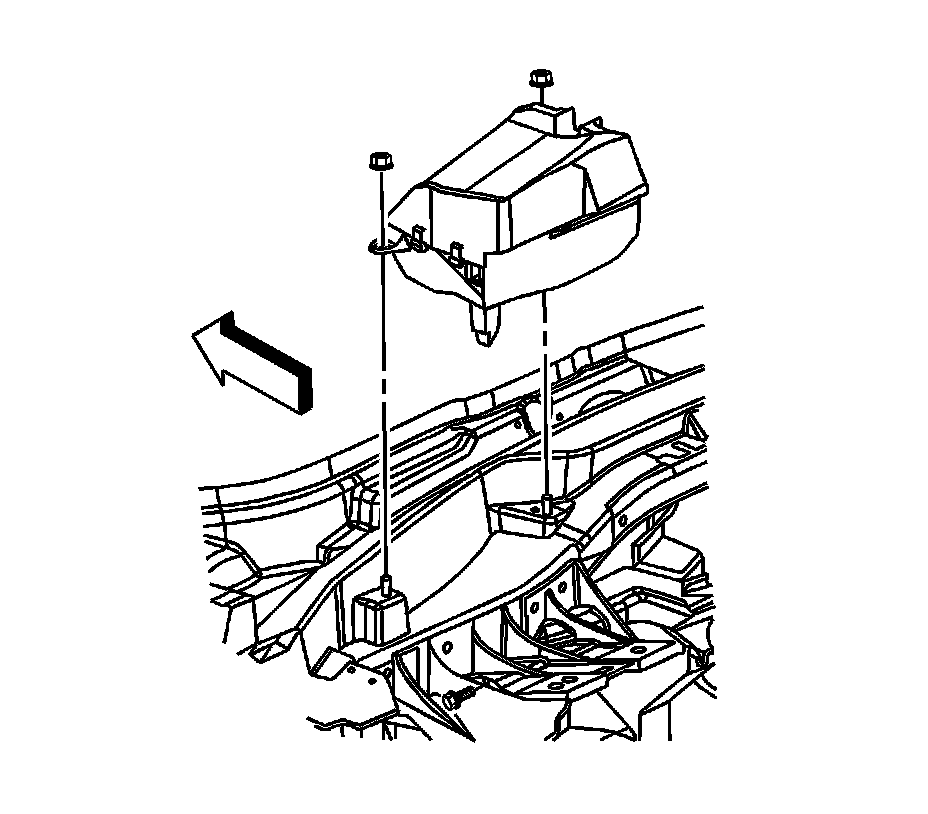

3. Remove the retaining screw that secures the head up display (HUD) to the steering column bracket.
4. Remove the HUD retaining nuts.
5. Remove the HUD from the vehicle.

Installation Procedure




1. Transfer the retaining screw and nut to the replacement HUD.
2. Install the HUD to the vehicle:

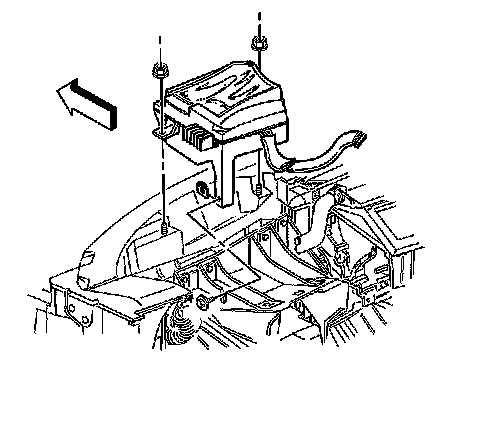

1. Install the HUD onto the dash panel mounting studs.
2. Slide the HUD retaining screw into the slot on the steering column bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the HUD retaining nuts.

Tighten the nuts to 5 Nm (44 lb in).

4. Tighten the screw that retains the HUD to the steering column bracket.

Tighten the screw to 3 Nm (27 lb in).

5. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement (Instrument Panel Assembly Replacement).
6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS3) (Battery Negative Cable Disconnection and Connection) Battery Negative Cable Disconnection and Connection (LS7 or LS9) (Battery Negative Cable Disconnection and Connection).
7. Refer to Control Module References (Programming and Relearning) for programming and setup information.
