Battery Temperature Sensor/Switch, Hybrid Drive




Component Connector End Views

Generator Battery Temperature Sensor 1A and Generator Battery Temperature Sensor 1B (HP7)

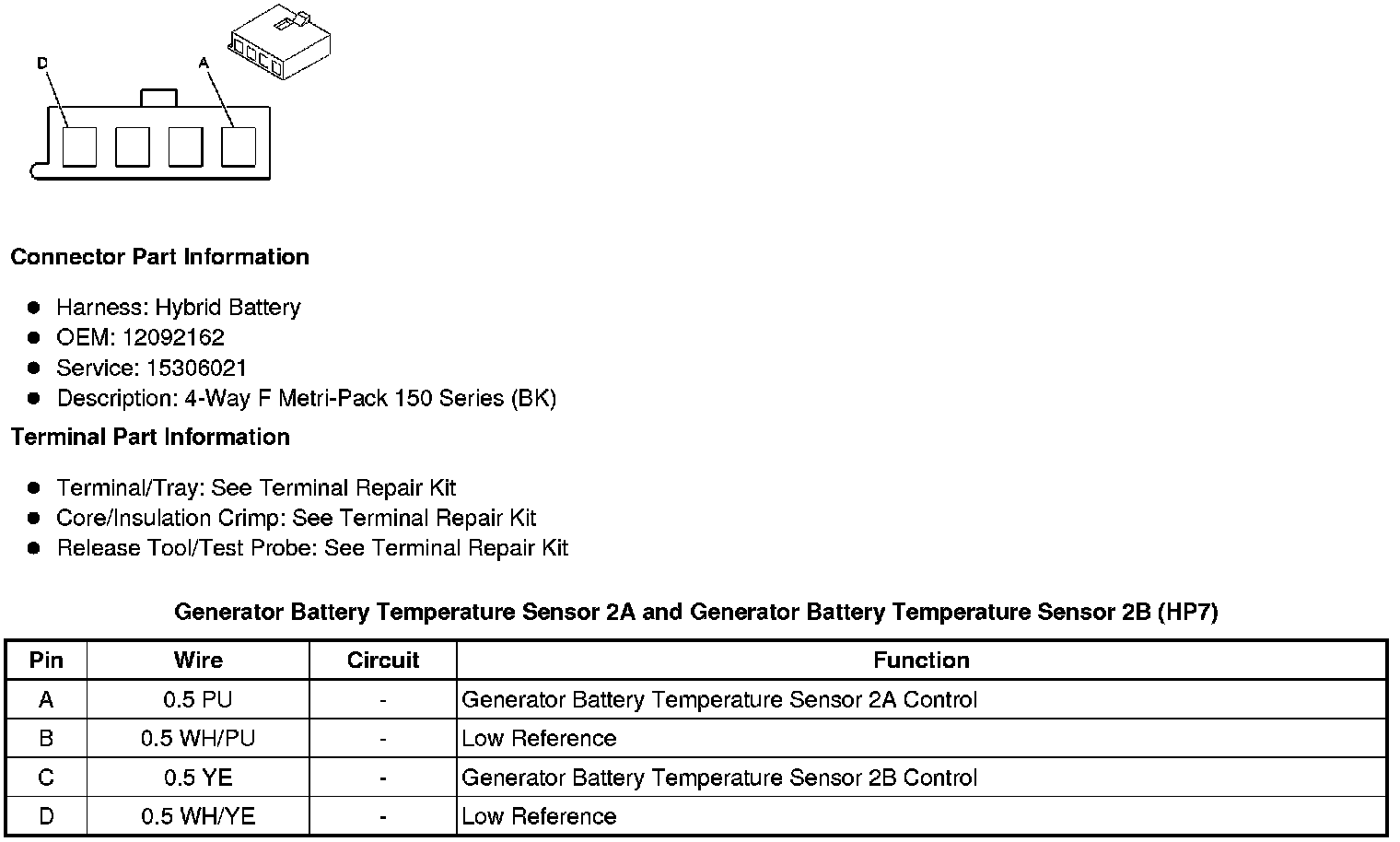

Generator Battery Temperature Sensor 2A and Generator Battery Temperature Sensor 2B (HP7)

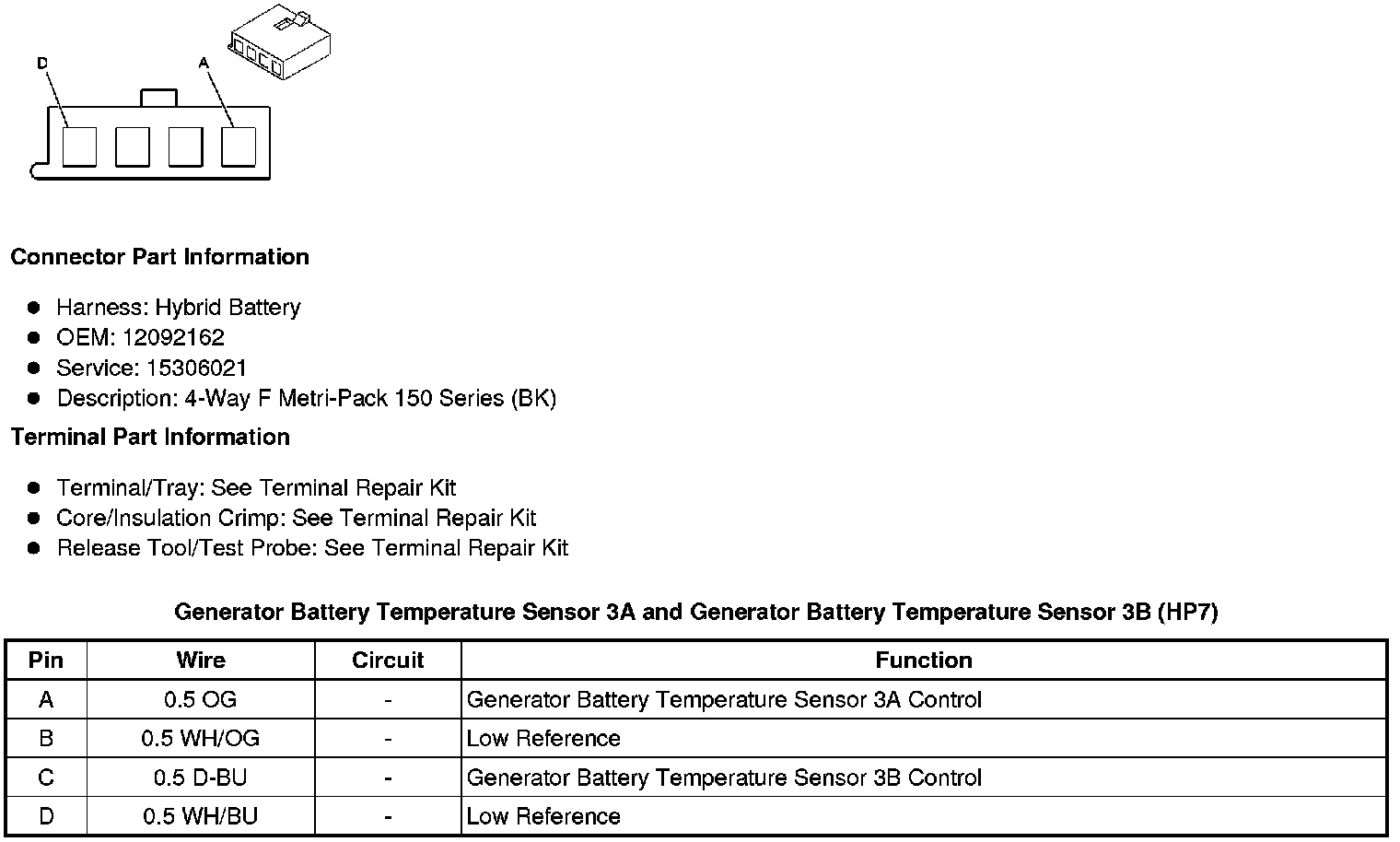

Generator Battery Temperature Sensor 3A and Generator Battery Temperature Sensor 3B (HP7)
