Home >> Chevrolet >> 2010 >> Malibu L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Battery System, Hybrid Drive >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Hybrid Energy Storage Schematics

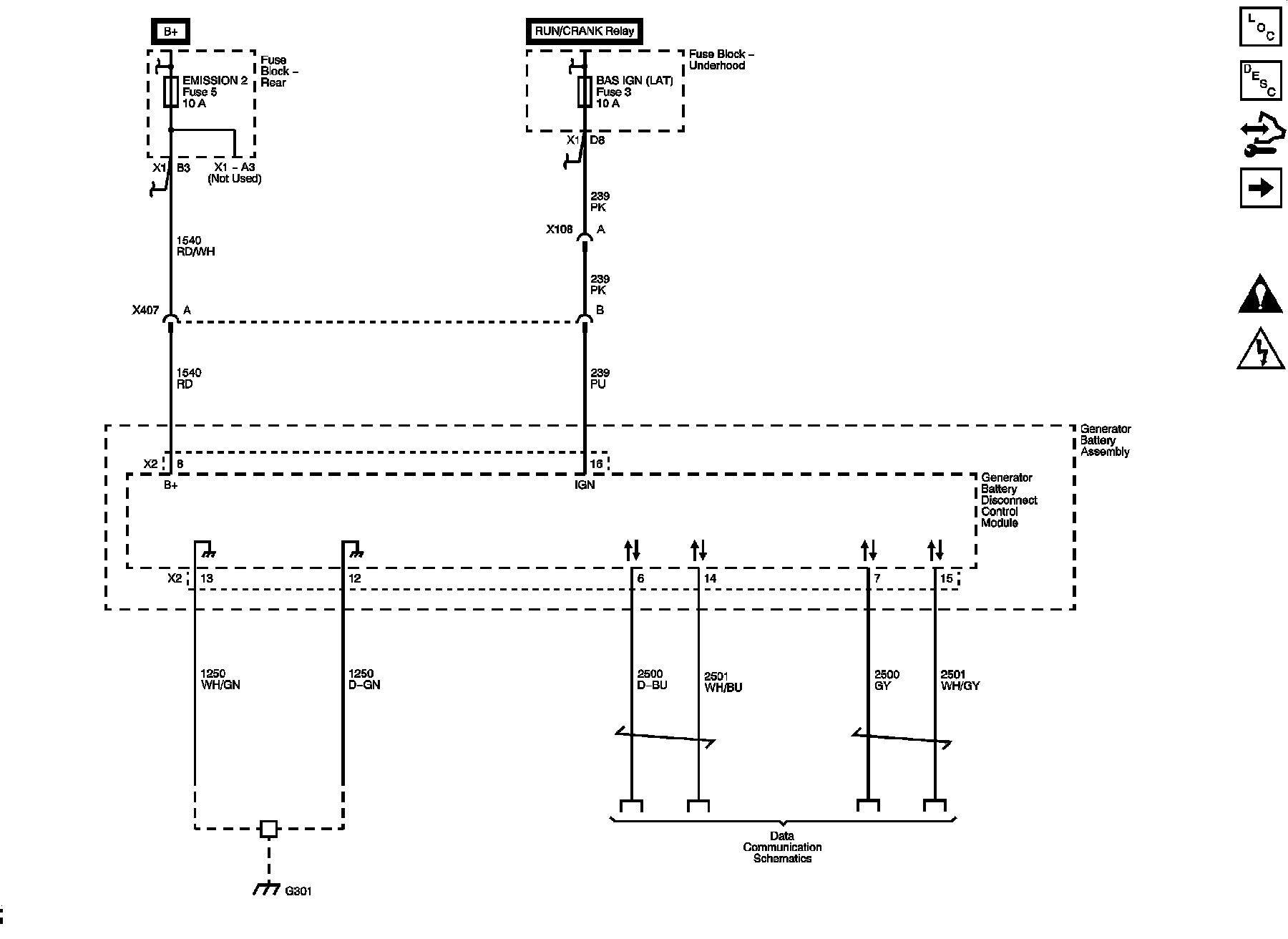

Power, Ground, and Serial Data

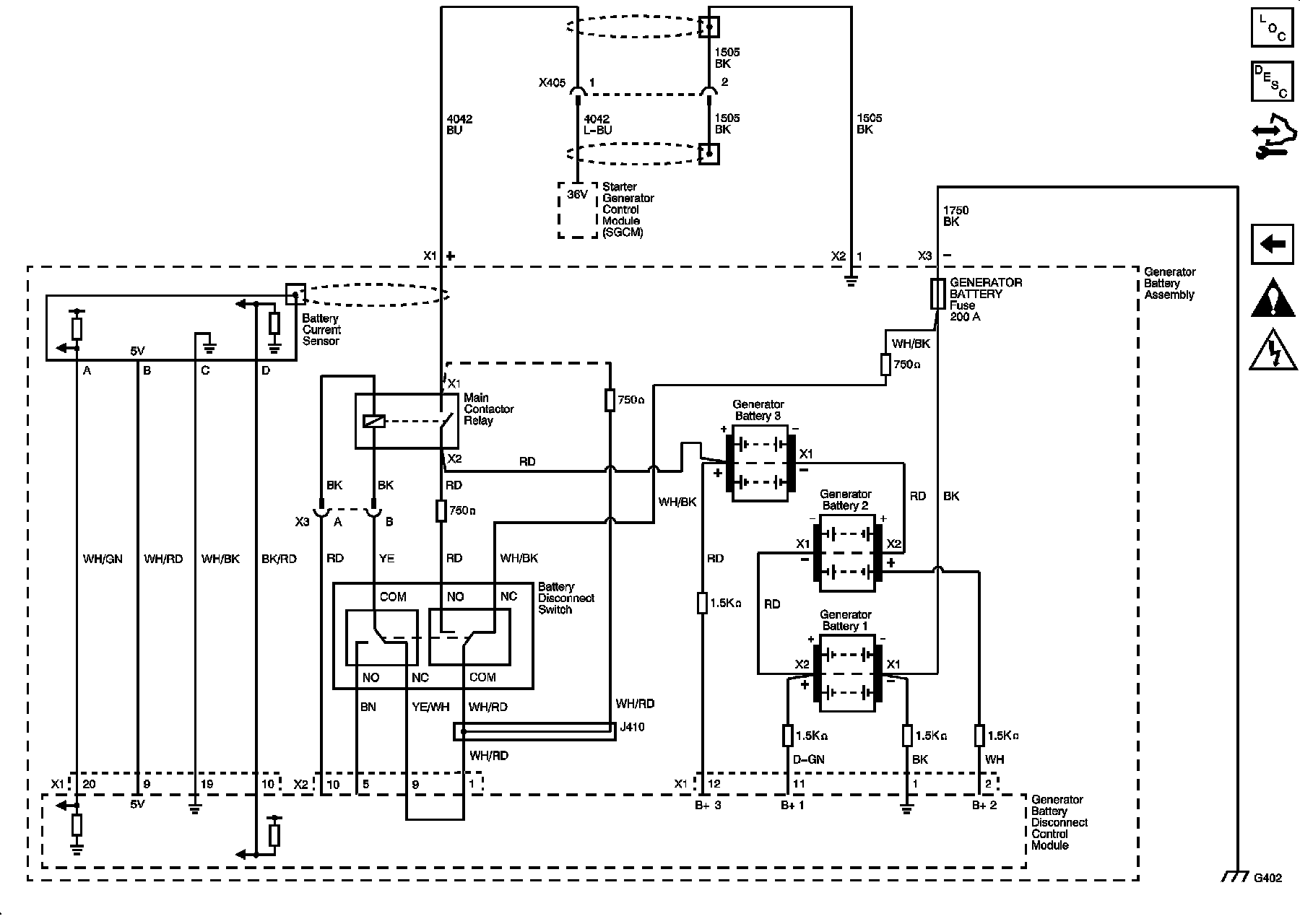

Batteries, Battery Current Sensor, and Battery Disconnect Switch
