Drive Motor/Generator: Diagrams




Component Connector End Views

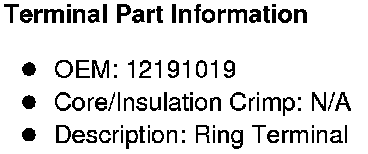

Starter Generator X1 (KY1)

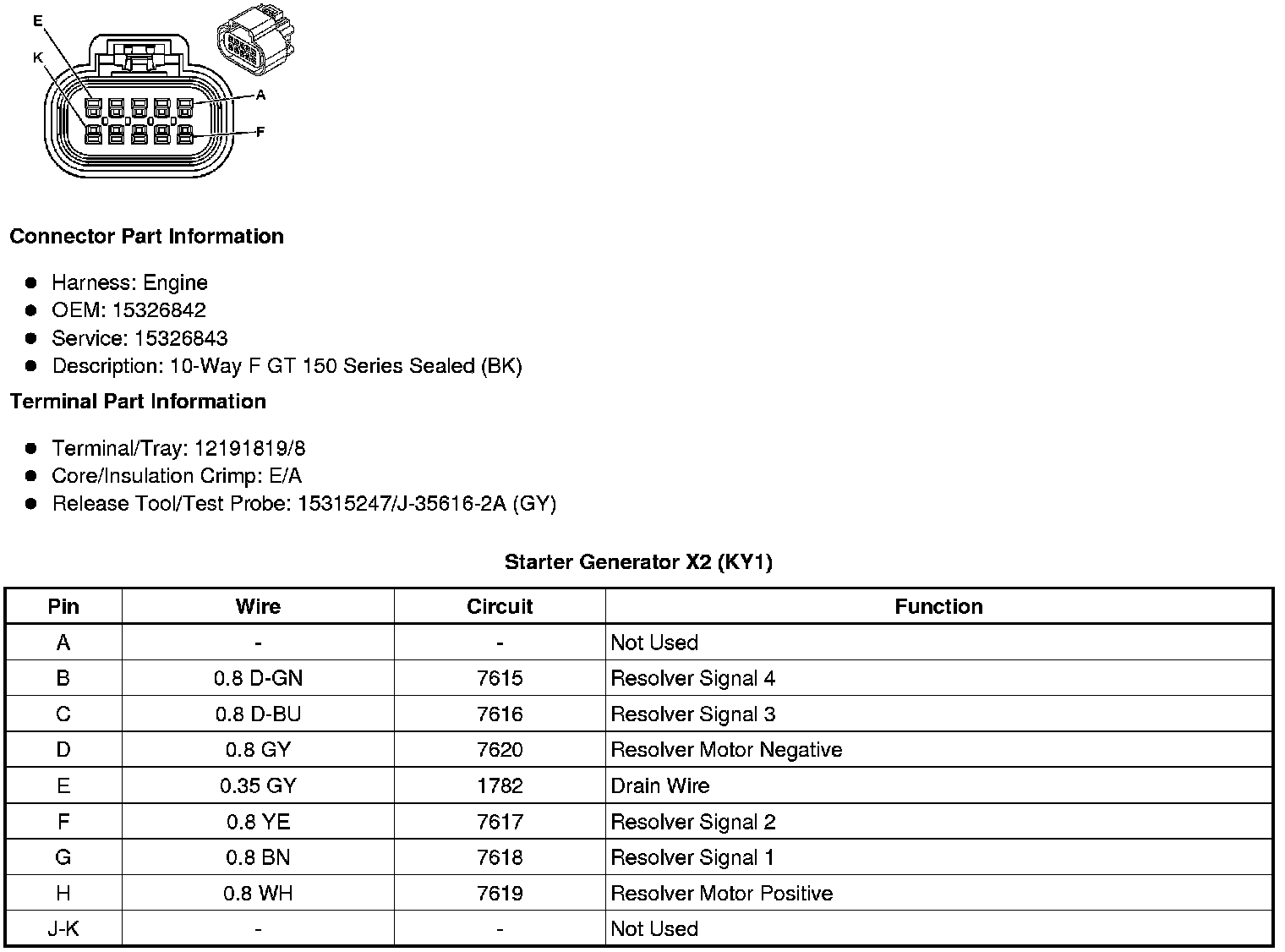

Starter Generator X2 (KY1)





Starter Generator X3 (KY1)

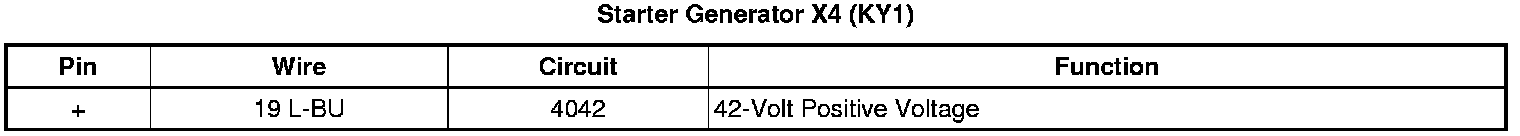

Starter Generator X4 (KY1)
