Exhaust Tail Pipe Flow Control Valve Solenoid
Exhaust Tail Pipe Flow Control Valve Solenoid
Component Connector End Views

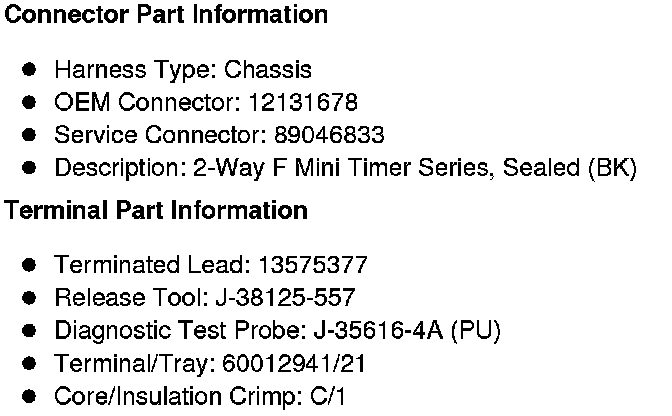

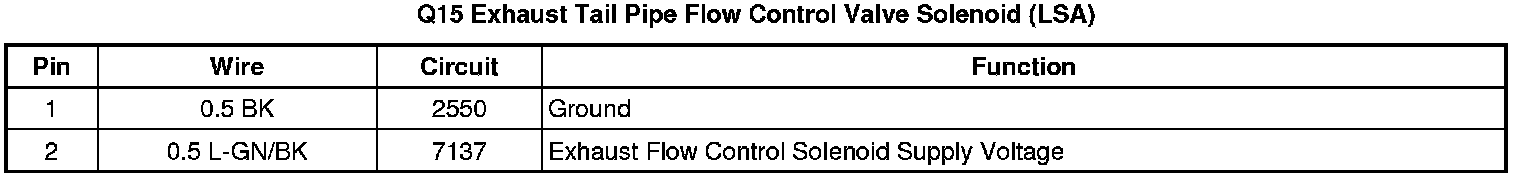

Q15 Exhaust Tail Pipe Flow Control Valve Solenoid (LSA)
