Fuel Injector 1
Fuel Injector 1

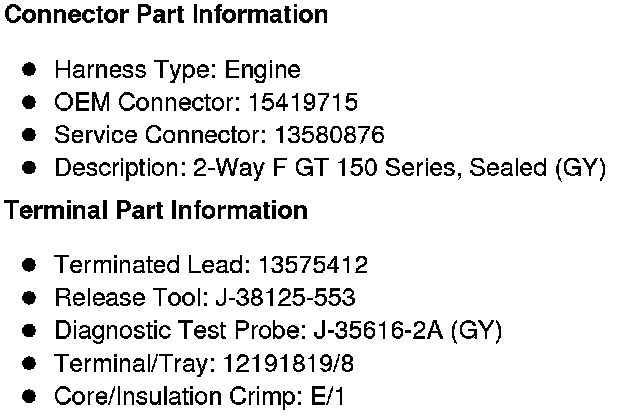

Component Connector End Views

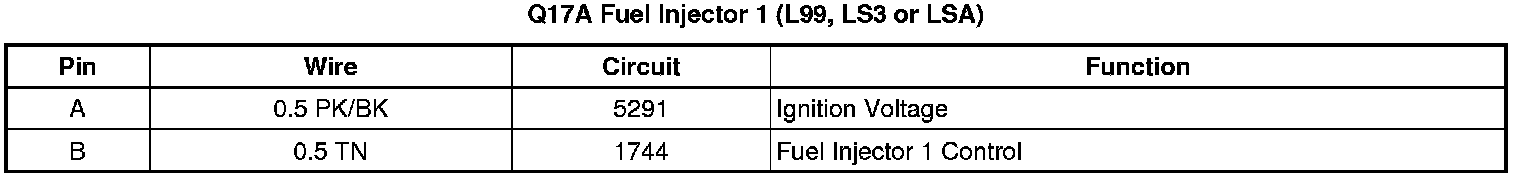

Q17A
Fuel Injector
1 (L99, LS3 or LSA)
