Supercharger Coolant Pump
Supercharger Coolant Pump

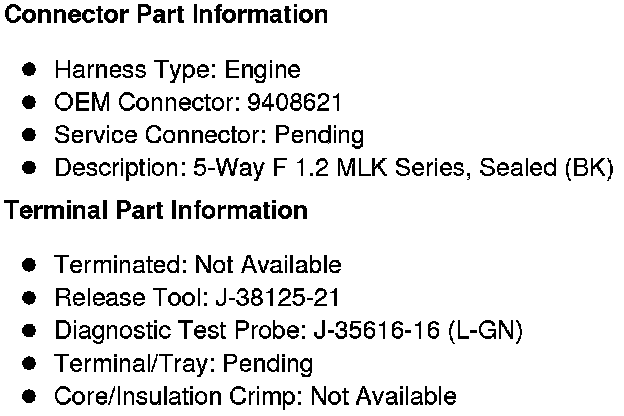

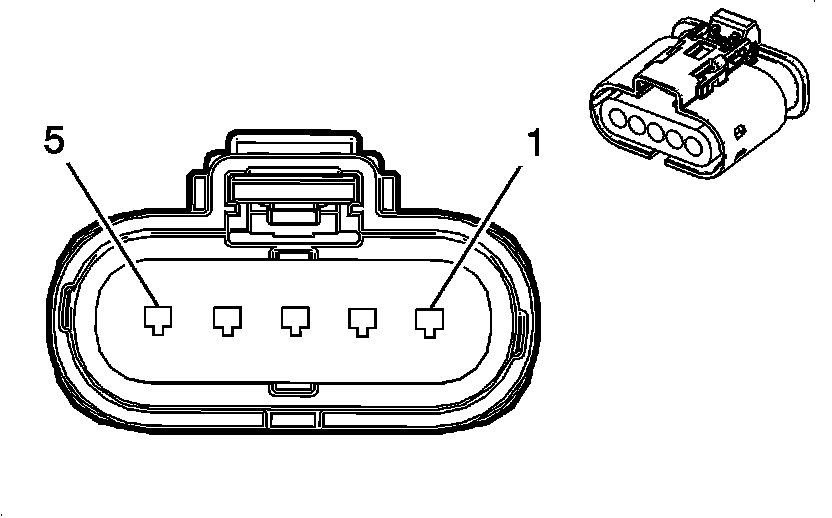

Component Connector End Views

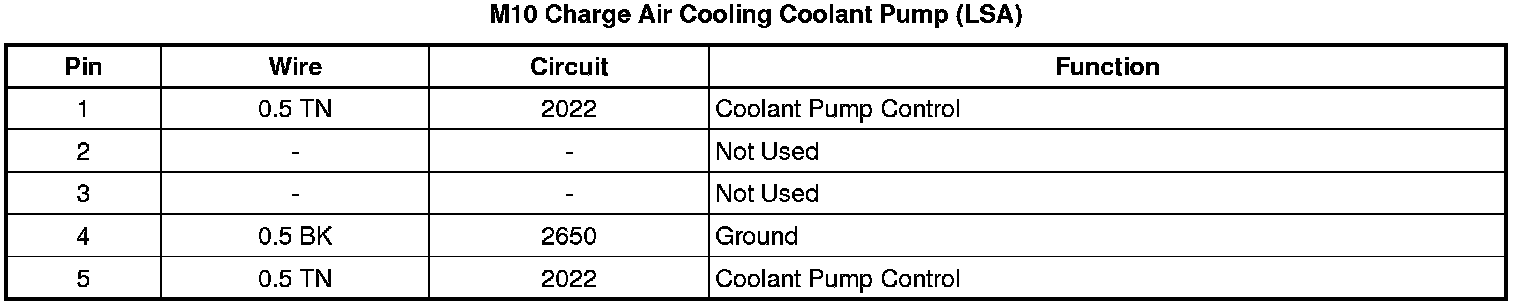

M10 Charge Air Cooling Coolant Pump (LSA)
