Engine Oil Pressure Sensor




Component Connector End Views

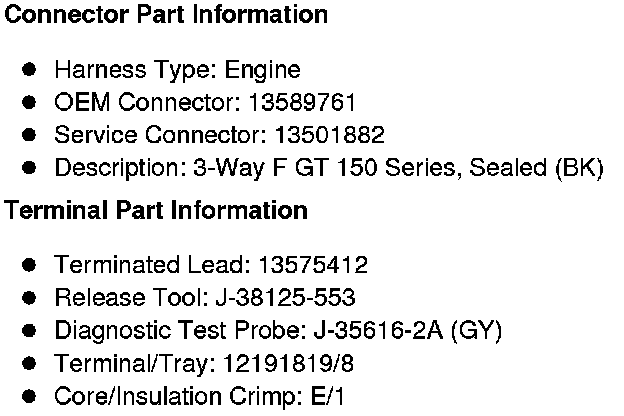

B37B Engine Oil Pressure Sensor (L99, LS3 or LSA)
