Fuel Injector 6
Fuel Injector 6

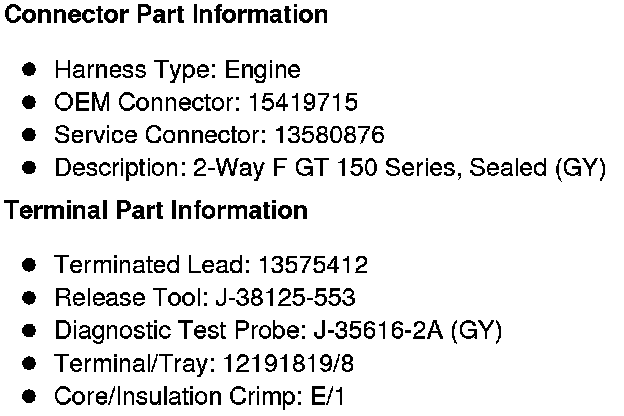

Component Connector End Views

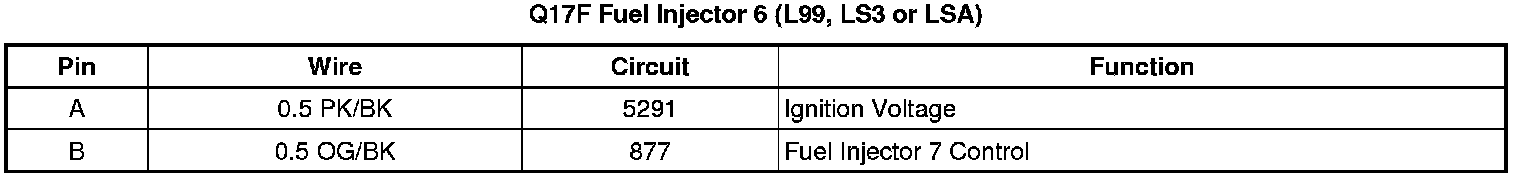

Q17F
Fuel Injector
6 (L99, LS3 or LSA)
