Ignition Coil
>>
Ignition Coil 2
Ignition Coil 2

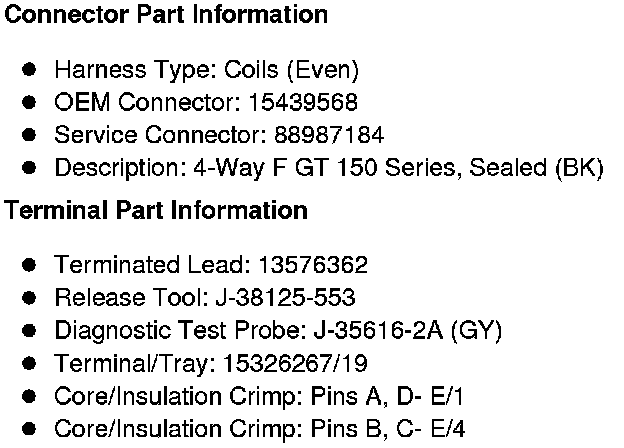

Component Connector End Views

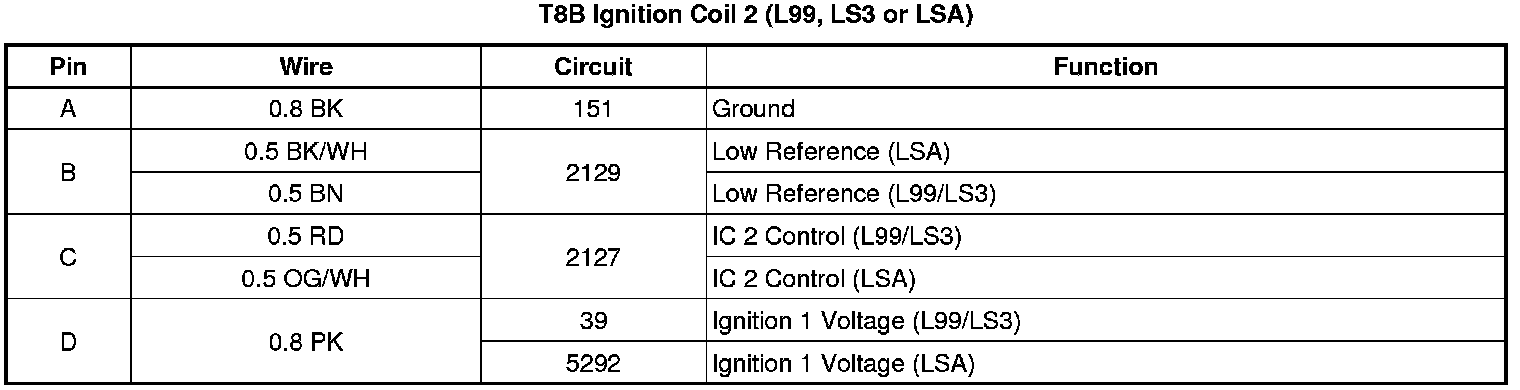

T8B
Ignition Coil
2 (L99, LS3 or LSA)
