Ignition Coil
>>
Ignition Coil 6
Ignition Coil 6

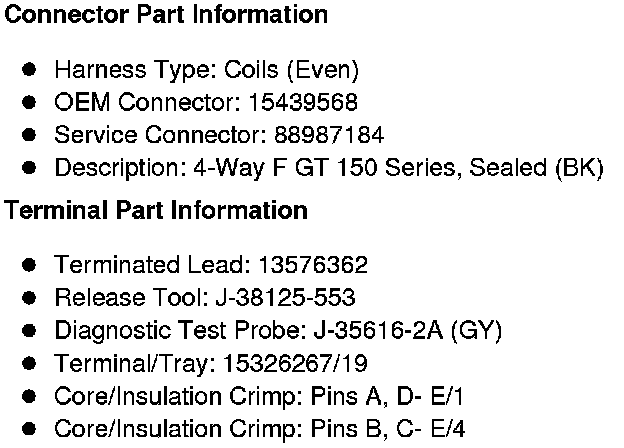

Component Connector End Views

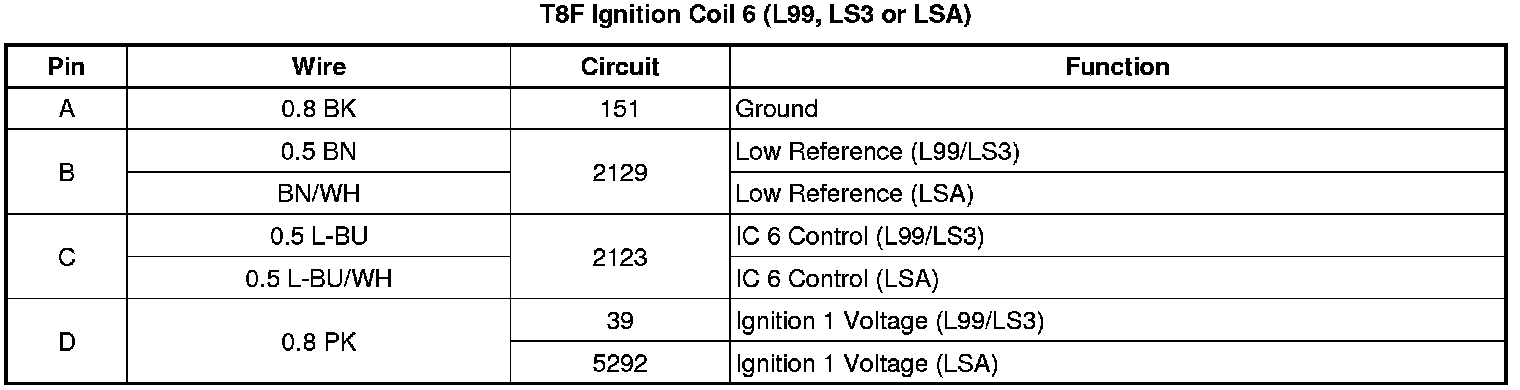

T8F
Ignition Coil
6 (L99, LS3 or LSA)
