Engine Oil Level and Temperature Sensor
Engine Oil Level and Temperature Sensor
Component Connector End Views

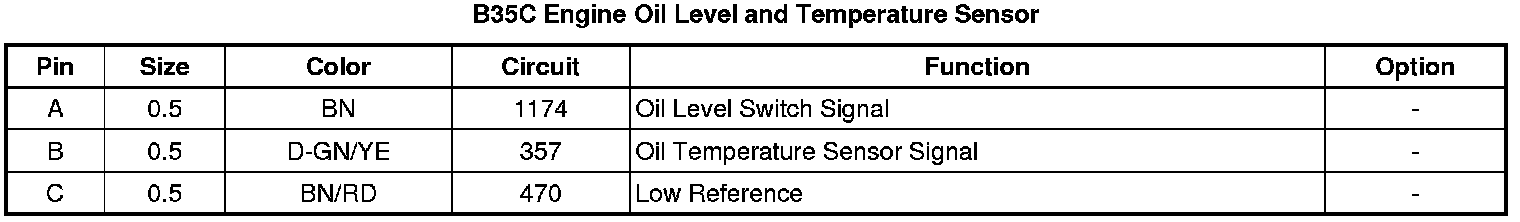

B35C Engine Oil Level and Temperature Sensor
