Parking Brake Release Switch
>>
Park Brake Switch (JFA)
Park Brake Switch (JFA)

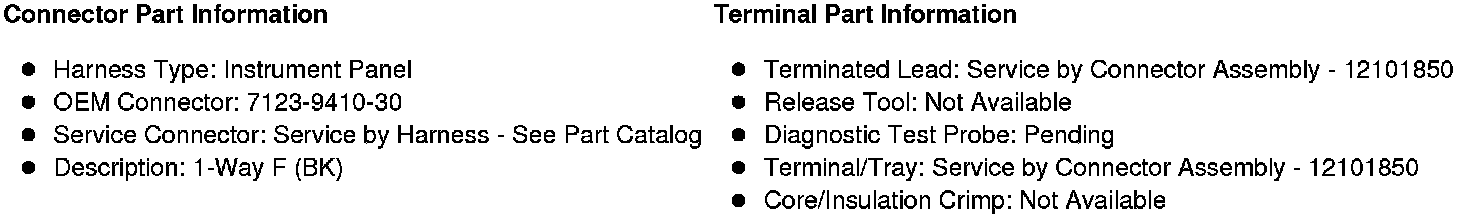

Component Connector End Views

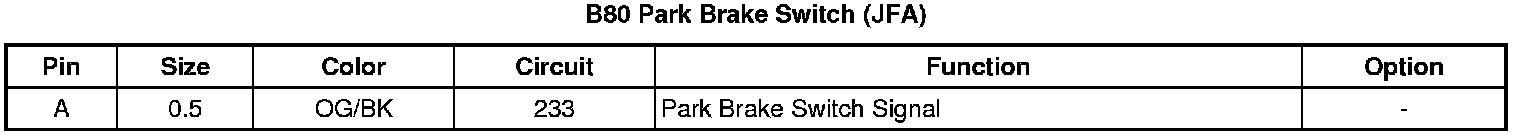

B80 Park Brake Switch (JFA)
