System Diagram

Automatic Transmission Controls Schematics

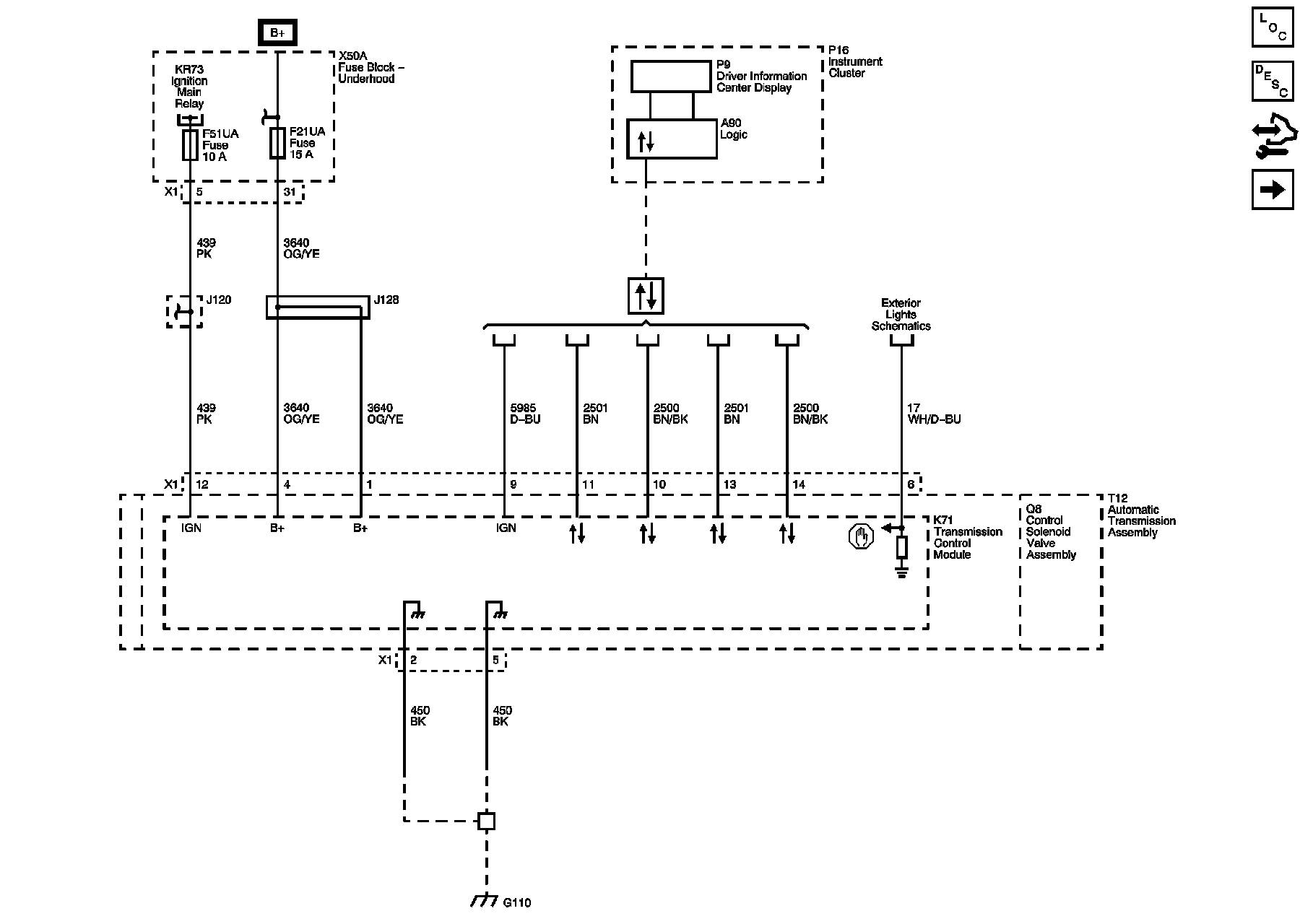

Module Power, Ground, Data Communications, MIL, and Brake Signal

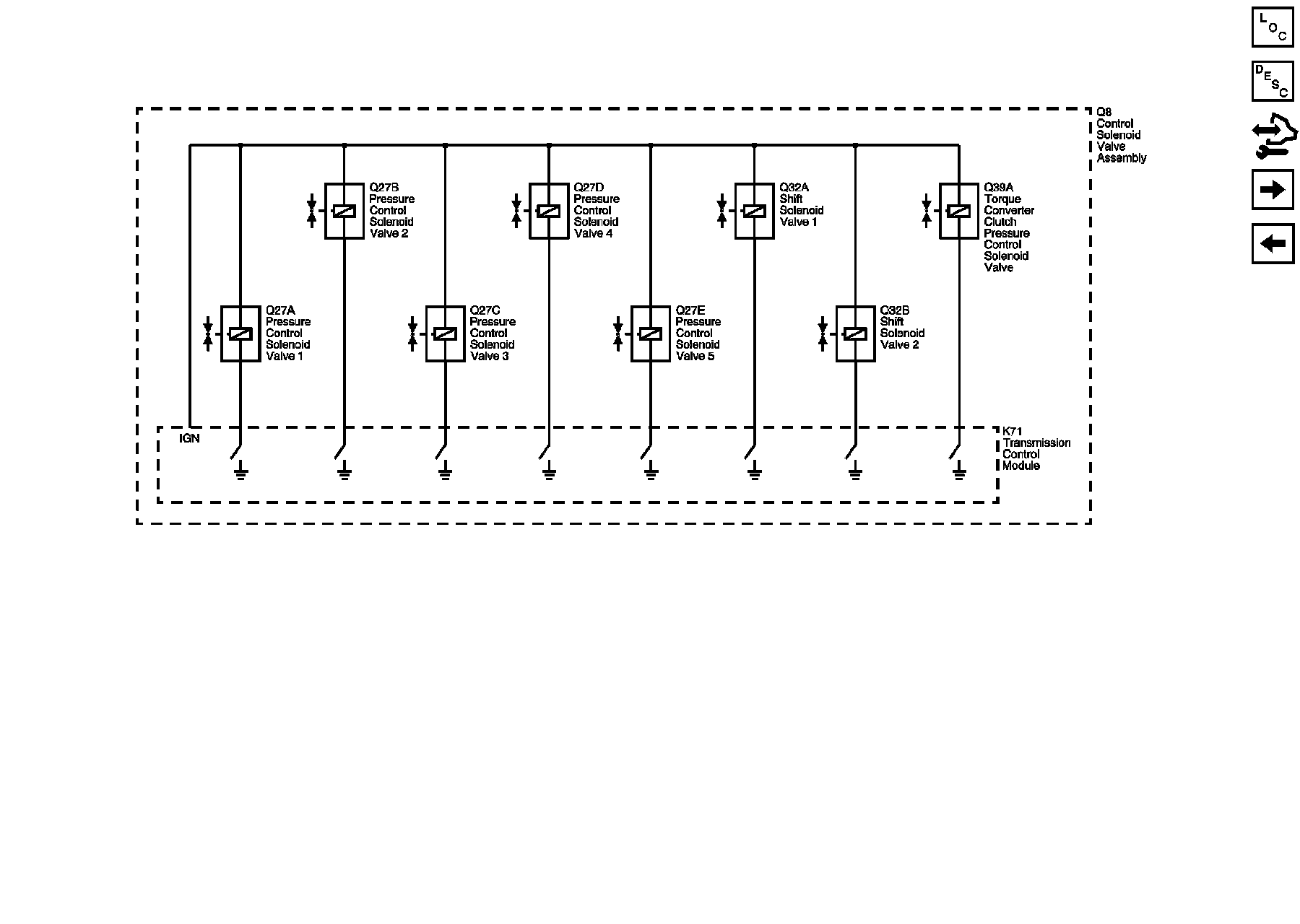

Pressure and Shift Controls

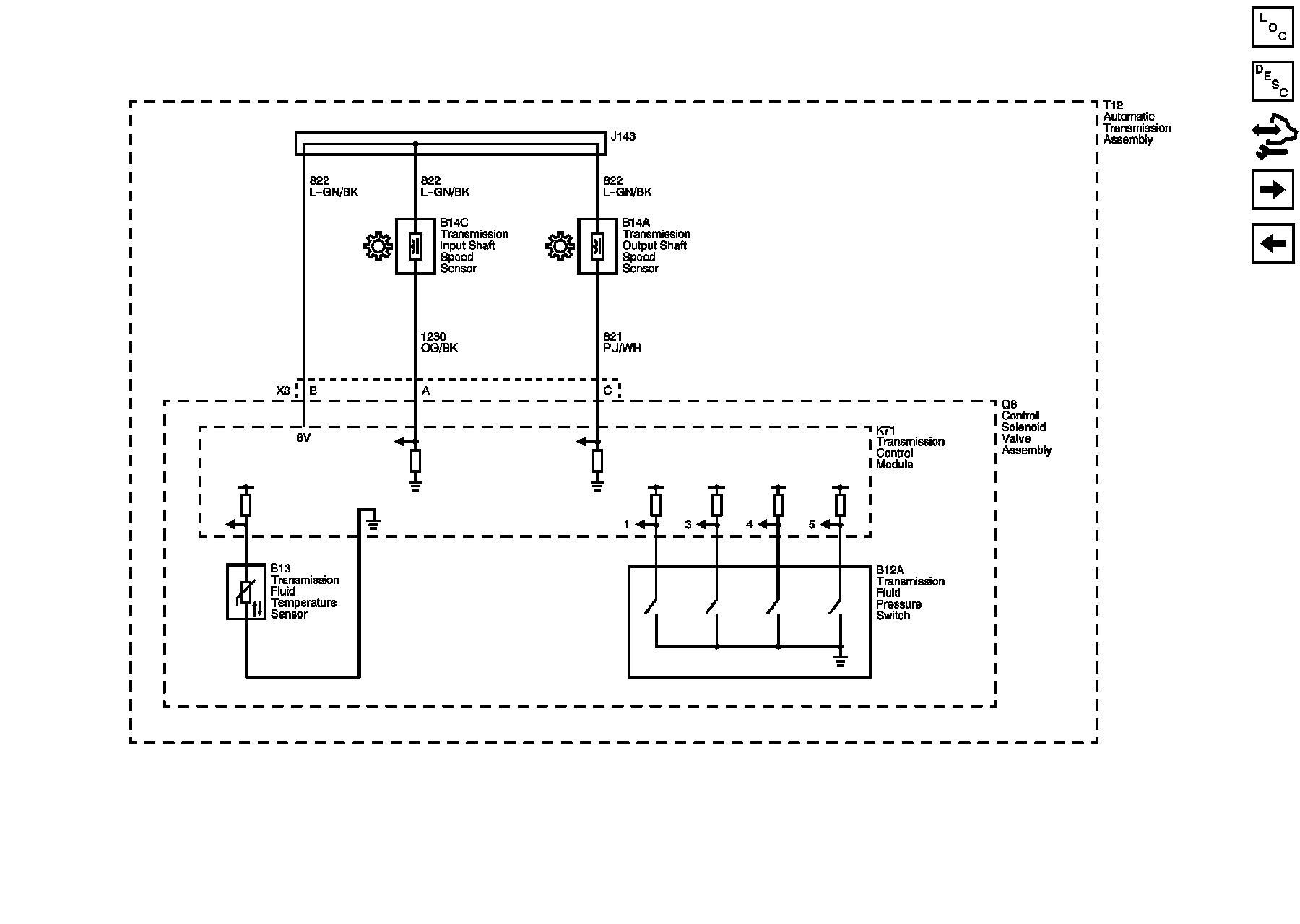

Fluid Controls and Speed Sensors

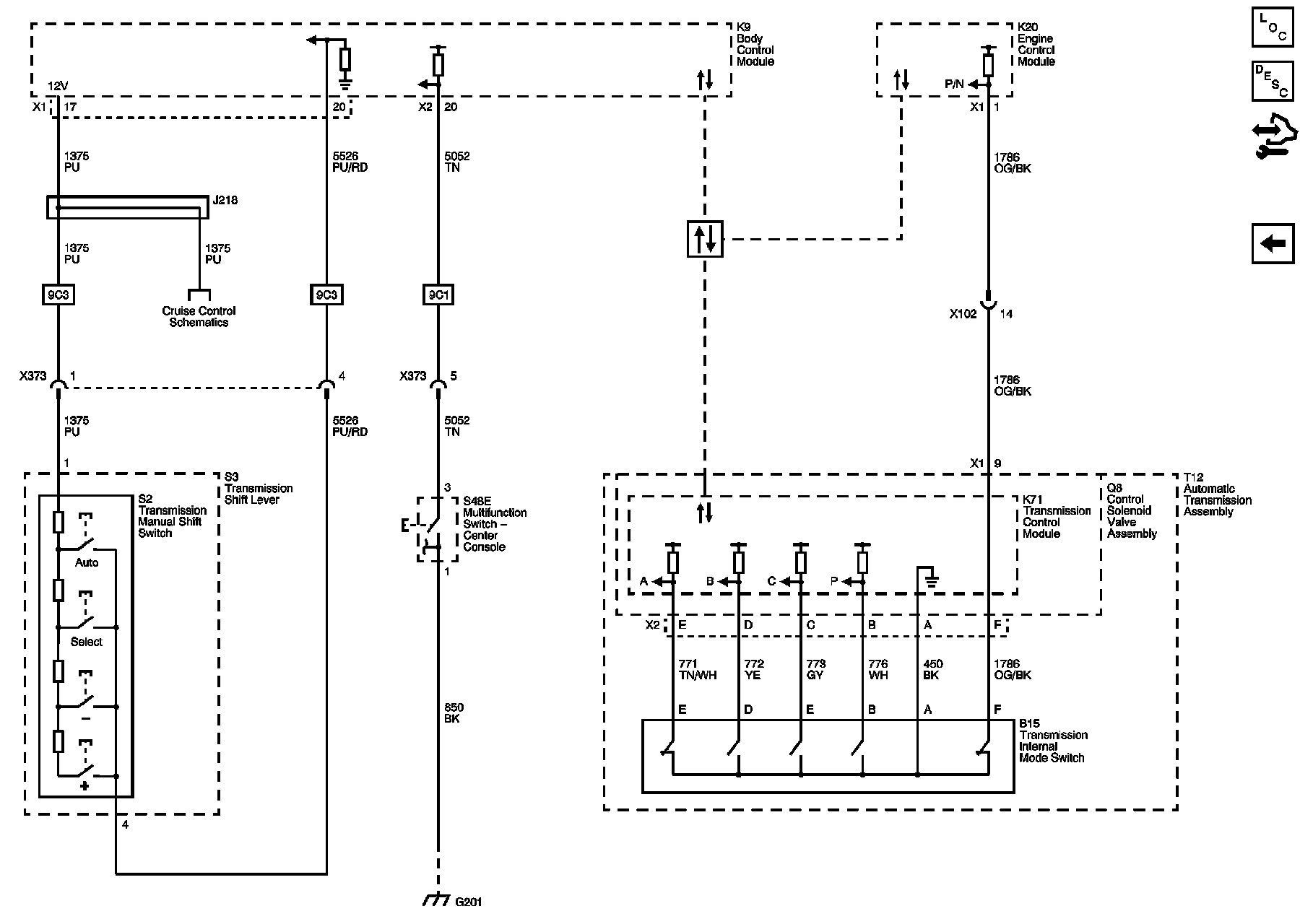

Internal Mode Switch and Tap Up/Tap Down Switch
