Power Seat Components

Passenger Compartment/Roof Component Views

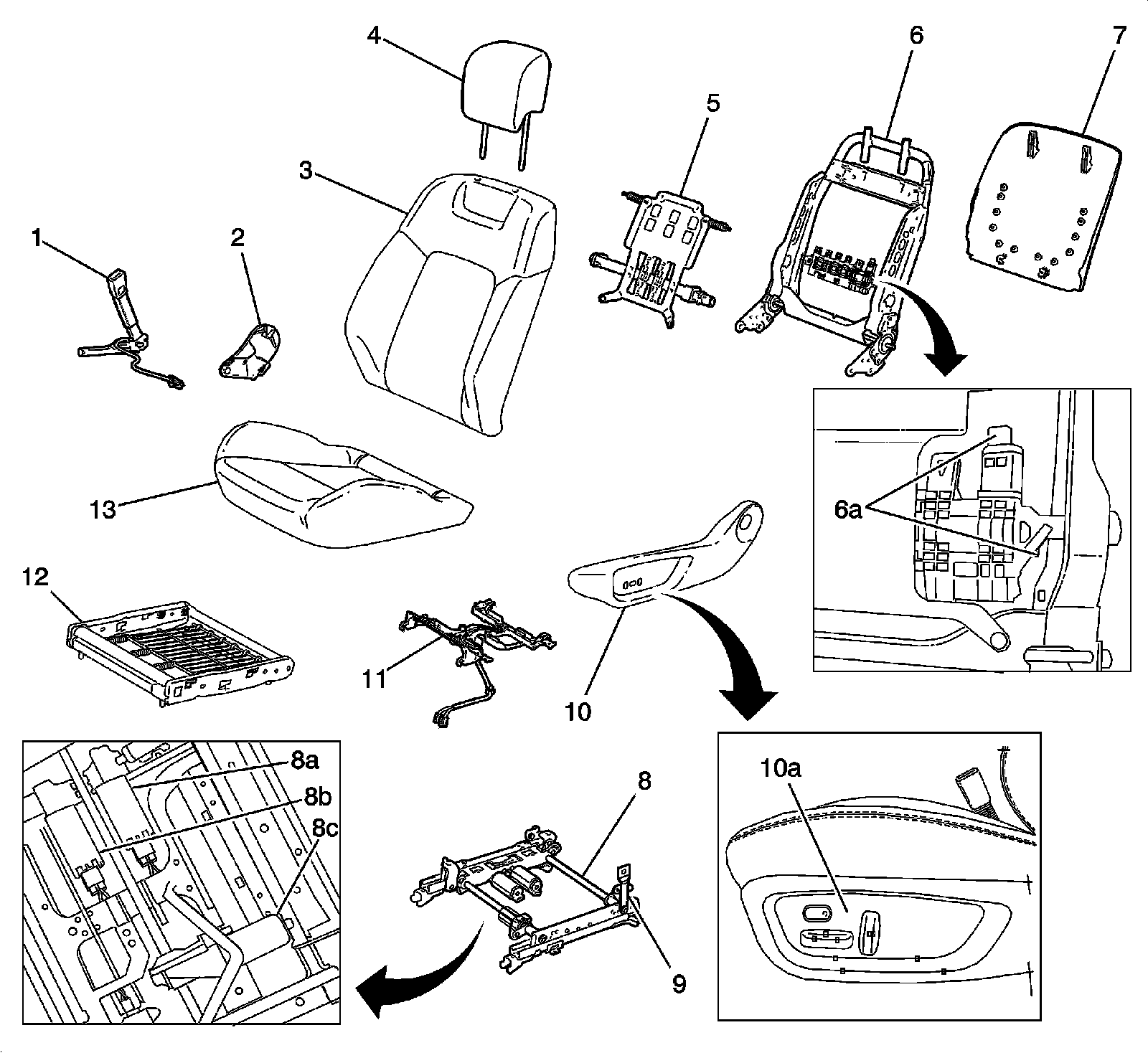

Power Seat Components





1 - Seat Belt Buckle

2 - Front Seat Cushion Inner Trim Panel

3 - Front Seat Back Cover Pad

4 - Front Seat Head Restraint

5 - Lumber Adjuster Support

6 - Front Seat Back Frame

6a - M53D Seat Lumbar Support Motor - Driver

7 - Front Seat Back Trim

8 - Front Seat Adjuster

8a - M55D Seat Rear Vertical Motor - Driver

8b - M50D Seat Front Vertical Motor - Driver

8c - M56D Seat Recline Motor - Driver

9 - F113D Seat Belt Anchor Pretensioner - Driver

10 - Front Seat Cushion Outer Trim Panel

10a - S64D Seat Adjuster Switch - Driver

11 - Front Seat Cable Tray

12 - Front Seat Cushion Pad Frame

13 - Front Seat Cushion Pad
