Heating and Air Conditioning
Sensor Resistance Table

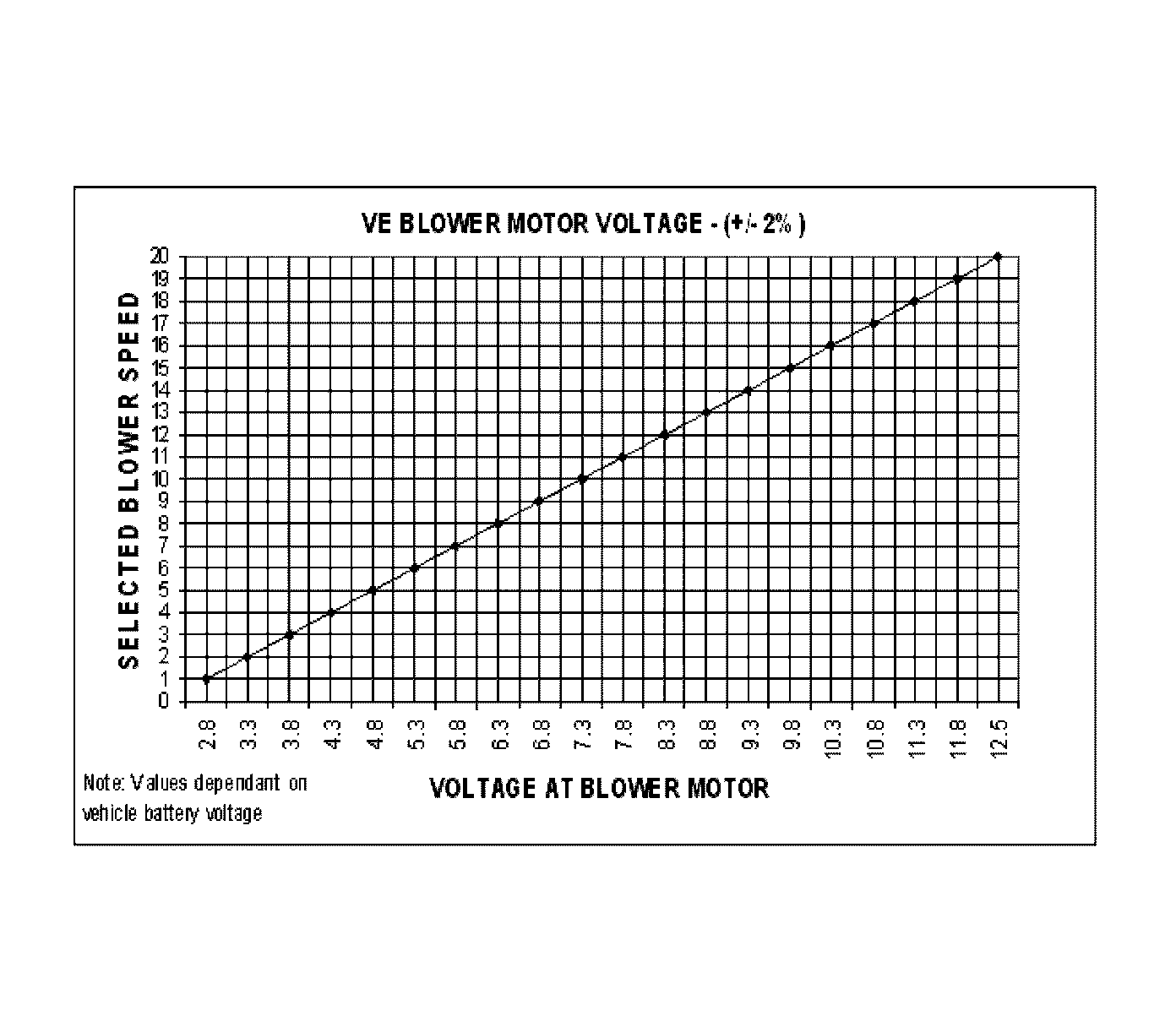

Blower Fan Speeds- Speed/Voltage Comparison
Inside Air Temperature Sensor- Temperature/Resistance Comparison
Evaporator Sensor- Temperature/Resistance Comparison

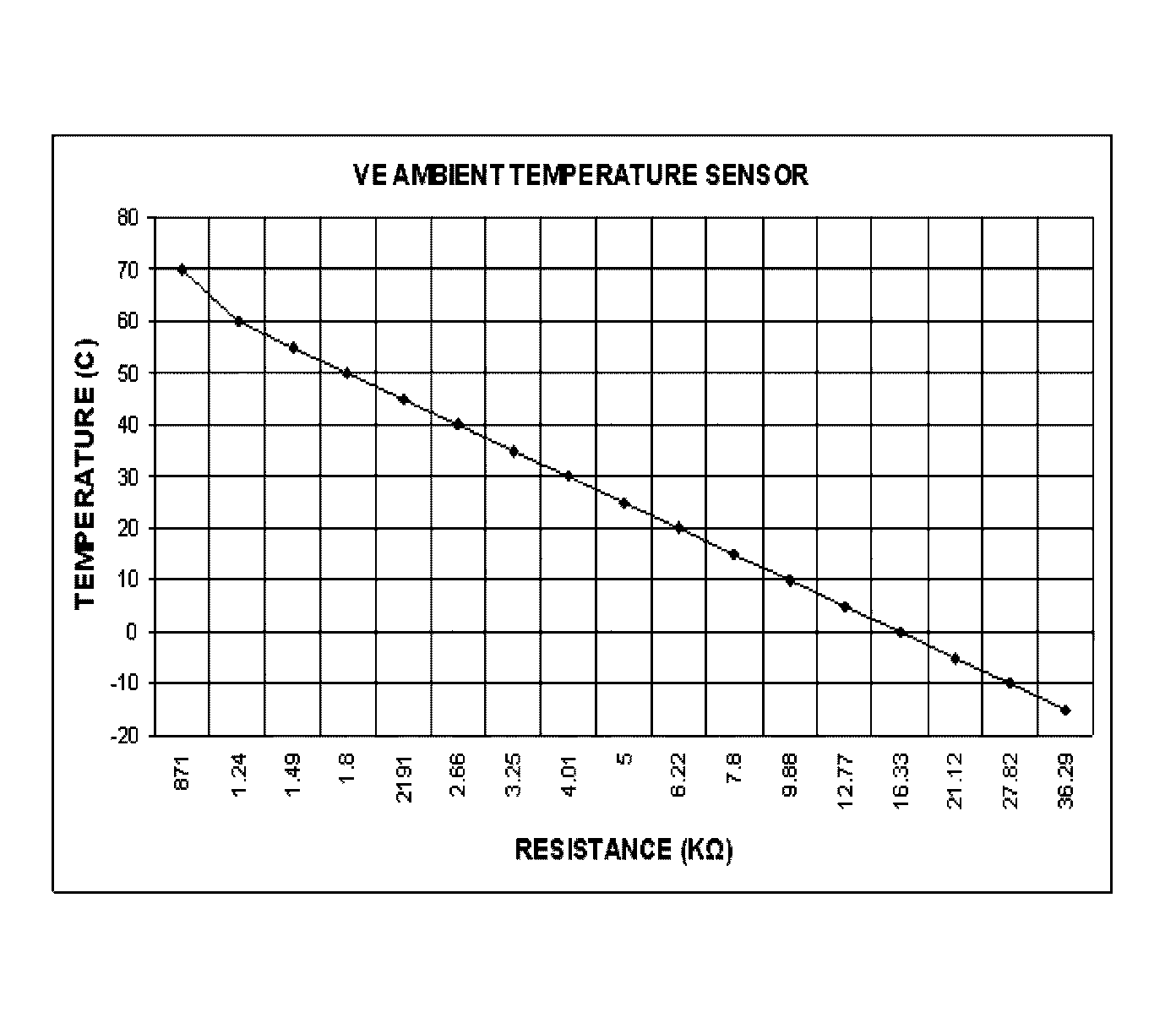

Ambient Air Temperature Sensor- Temperature/Resistance Comparison

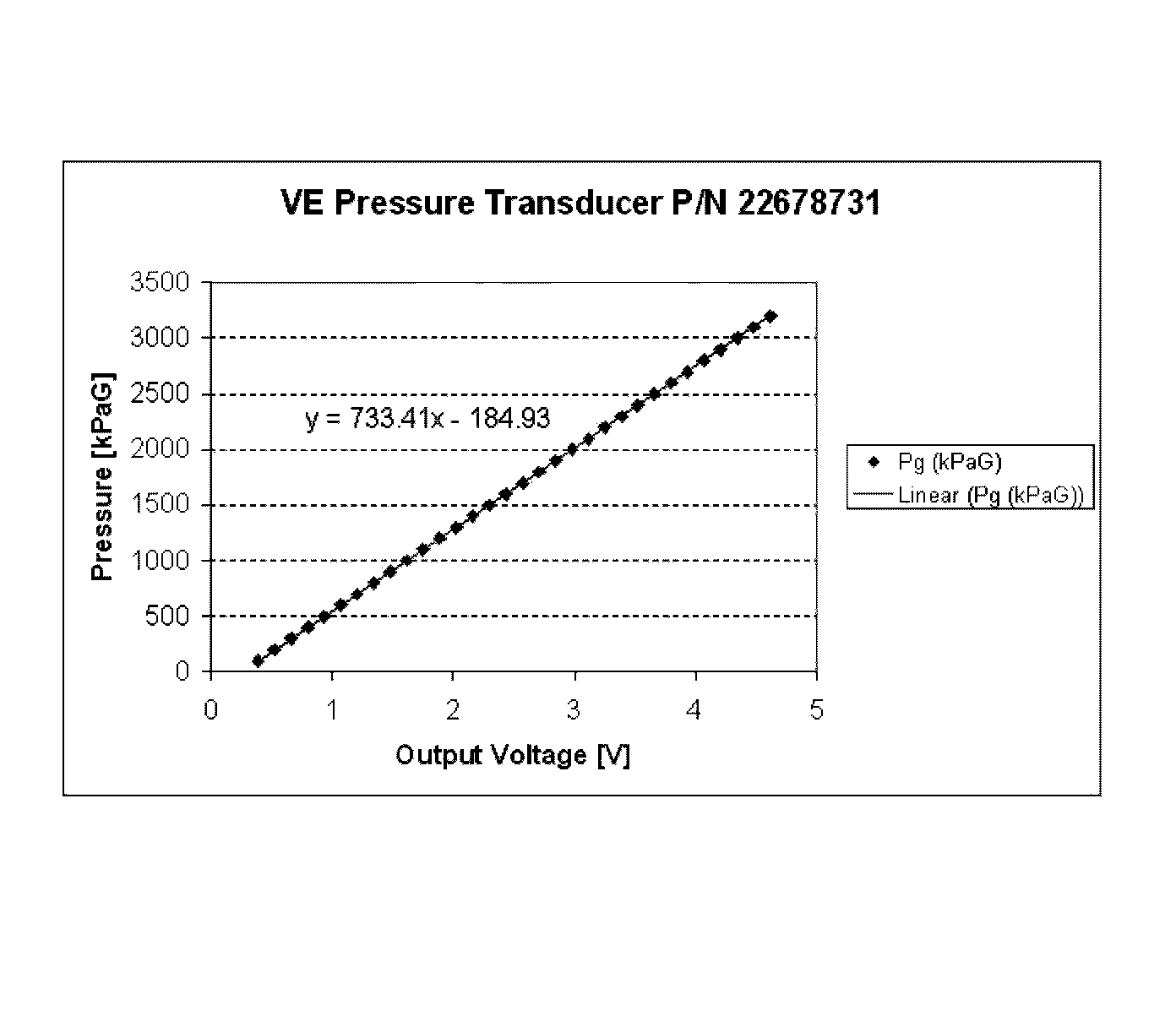

Pressure Transducer- Pressure/Voltage Comparison
Compressor ECVD- Current/Suction Pressure Comparison
