B2645
DTC B2645
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category
DTC Descriptors
DTC B2645 03
-
Ambient Light Sensor Circuit Voltage Below Threshold
DTC B2645 07
-
Ambient Light Sensor Circuit Voltage Above Threshold

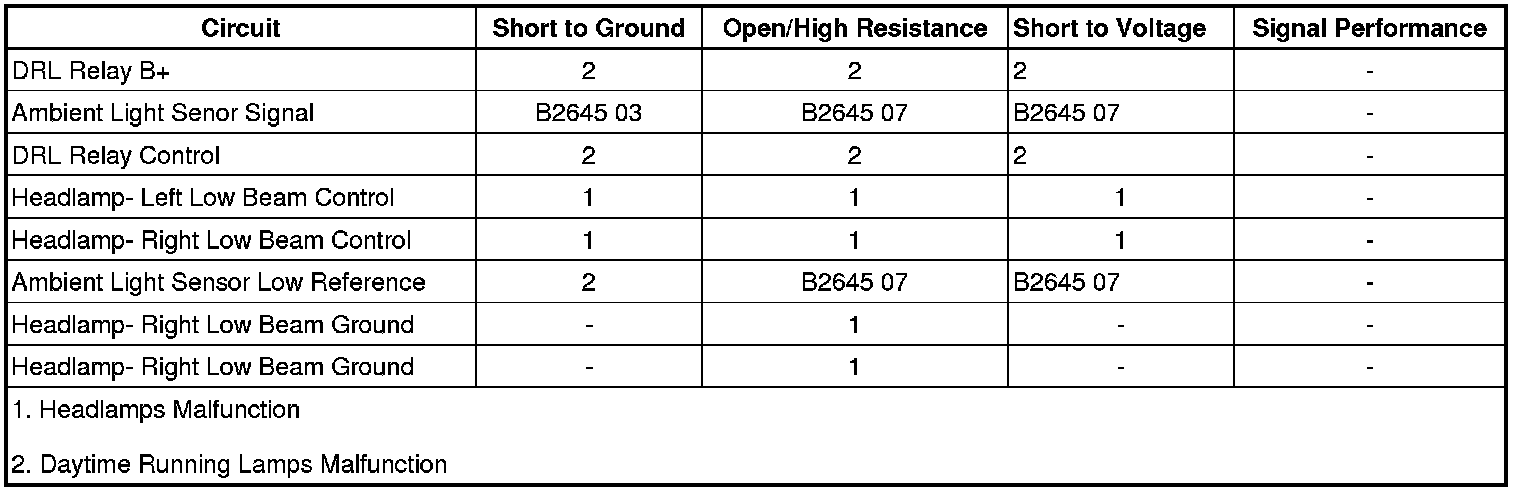

Diagnostic Fault Information
Circuit/System Description
The ambient light/sun load sensor is used to monitor outside lighting conditions. The ambient light sensor provides a voltage signal that will vary between 0.2 and 4.9 V depending on outside lighting conditions. The body control module (BCM) provides a 5 V reference signal to the ambient light sensor and the HVAC control module provides a low reference ground. The BCM monitors the ambient light sensor signal circuit to determine if outside lighting conditions are correct for either daytime running lights (DRL) or automatic lamp control (ALC) when the headlamp switch is in the AUTO position. In daylight conditions the BCM will command the DRLs ON. The DRLs consists on the low beam headlamps illuminated at reduced intensity. During low light conditions the BCM will command the low beam headlamps ON. Any function or condition that turns on the headlamps will cancel DRL operation.
Conditions for Running the DTC
Battery voltage must be between 9-16 volts.
Conditions for Setting the DTC
DTC B2645 03
The BCM detects a short to ground in the ambient light sensor signal circuit.
DTC B2645 07
The BCM detects a short to voltage or an open/high resistance in the ambient light sensor signal circuit.
Actions Taken When the DTC Sets
* Automatic lamp control (ALC) is inoperative.
* The BCM defaults to low light status and commands the low beam headlamps ON.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.
Reference Information
Schematic Reference
Headlights/Daytime Running Lights (DRL) Schematics Headlights/Daytime Running Lights (DRL) Schematics
Connector End View Reference
Component Connector End Views Fuel Pump and Level Sensor Assembly
Description and Operation
Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the B10B ambient light/sunload sensor.
2. Ignition ON, verify that a test lamp illuminates between the low reference circuit terminal C and B+.
• If the test lamp does not illuminate, test the low reference circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K33 HVAC control module.
3. Ignition ON, verify the scan tool Ambient Light Sensor parameter is greater than 4.65 volts.
• If less than the specified range, test the signal circuit terminal D for a short to ground. If the circuit tests normal, replace the K9 body control module.
4. Install a 3 A fused jumper wire between the signal circuit terminal D and the low reference circuit terminal C. Verify the scan tool Ambient Light Sensor parameter is less than 0.196 volts.
• If greater than the specified range, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K9 body control module.
5. If all circuits test normal, replace the B10B ambient light/sunload sensor.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Sunload and Twilight Sentinel Sensor Replacement Service and Repair
* Control Module References Control Module References for BCM or HVAC control module replacement, setup, and programming
