B2976
DTC B2976
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B2976 00
-
Driver Door Ajar Circuit

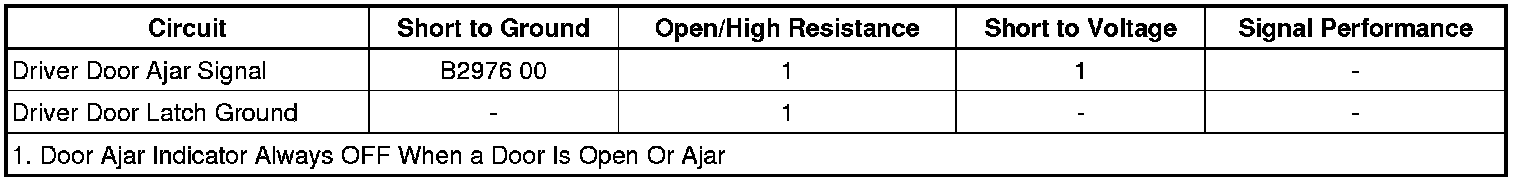

Diagnostic Fault Information
Circuit/System Description
The body control module (BCM) supplies a 12 V signal to the door latches. When a door is open, the switch within the door latch closes providing a ground path for the ajar signal which causes to voltage to drop to 0 V The BCM will detect the voltage drop and then communicates this status to the instrument panel cluster (IPC) via a serial data message. The IPC, upon receipt of this serial data message, will illuminate the ajar icon.
Conditions for Running the DTC
The system voltage is 9-16 V.
Conditions for Setting the DTC
The BCM detects a short to ground in the driver door ajar circuit for greater than 10 minutes.
Action Taken When the DTC Sets
The door ajar indicator is continuously illuminated
Conditions for Clearing the DTC
* The DTC will be current for as long as the fault is present.
* When the fault is no longer present, the DTC will become a history DTC.
* A history DTC will clear after 50 ignition cycles.
Reference Information
Schematic Reference
Door Lock/Indicator Schematics Door Lock/Indicator Schematics
Connector End View Reference
Component Connector End Views Fuel Pump and Level Sensor Assembly
Description and Operation
Door Ajar Indicator Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
Ignition ON, observe the scan tool Driver Door Ajar Sw parameter while opening and closing the driver door. The parameter should change between Door Closed and Door Ajar.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the A23D door latch assembly-driver.
2. Test for less than 10 ohms between the ground circuit terminal 8 and ground.
• If greater than the specified range, test the ground circuit for an open/high resistance.
3. Ignition ON, verify the scan tool Driver Door Ajar Sw parameter is Door Closed.
• If not the specified value, test the signal circuit terminal 6 for a short to ground. If the circuit tests normal, replace the K9 BCM.
4. Install a 3 A fused jumper wire between the signal circuit terminal 6 and the ground circuit terminal 8. Verify the scan tool Driver Door Ajar Sw parameter is Door Ajar.
• If not the specified value, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K9 BCM.
5. If all circuits test normal, test or replace the A23D door latch assembly-driver.
Component Testing
1. Ignition OFF, disconnect the harness connector at the A23D door latch assembly-driver.
2. With the switch in the open position, test for infinite resistance between the signal terminal 6 and the ground terminal 8.
• If not the specified value, replace the A23D door latch assembly-driver.
3. With the switch in the closed position, test for less than 2 ohms between the signal terminal 6 and the ground terminal 8.
• If not the specified value, replace the A23D door latch assembly-driver.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Front Side Door Latch Replacement Service and Repair
* Control Module References Control Module References for BCM replacement, programming and setup
