Engine: Locations
Disassembled Views (L76, L77)
Intake Manifold/Upper Engine
1 - Positive Crankcase Ventilation (PCV) Tube - Dirty Air
2 - Evaporative Emission (EVAP) Canister Purge Tube
3 - EVAP Canister Purge Solenoid Valve
4 - EVAP Canister Purge Tube
5 - EVAP Purge Valve Bracket
6 - Bolt
7 - Fuel Rail Ground Strap
8 - Bolt
9 - Fuel Rail with Injectors
10 - Manifold Absolute Pressure (MAP) Sensor Bolt
11 - Manifold Absolute Pressure (MAP) Sensor
12 - Seal
13 - Bolt
14 - Throttle Body
15 - Throttle Body Gasket
16 - Intake Manifold
17 - Bolt
18 - Fuel Injection Fuel Rail Stop Bracket
19 - Seal
20 - Intake Manifold Gasket
21 - Engine Coolant Air Bleed Plug
22 - Oil Pressure Sensor
23 - Washer
24 - Bolt
25 - Filter
26 - O-ring
27 - Valve Lifter Oil Manifold
28 - Valve Lifter Oil Manifold Gasket
29 - Engine Block
30 - Seal
31 - Engine Coolant Air Bleed Pipe
32 - Bolt

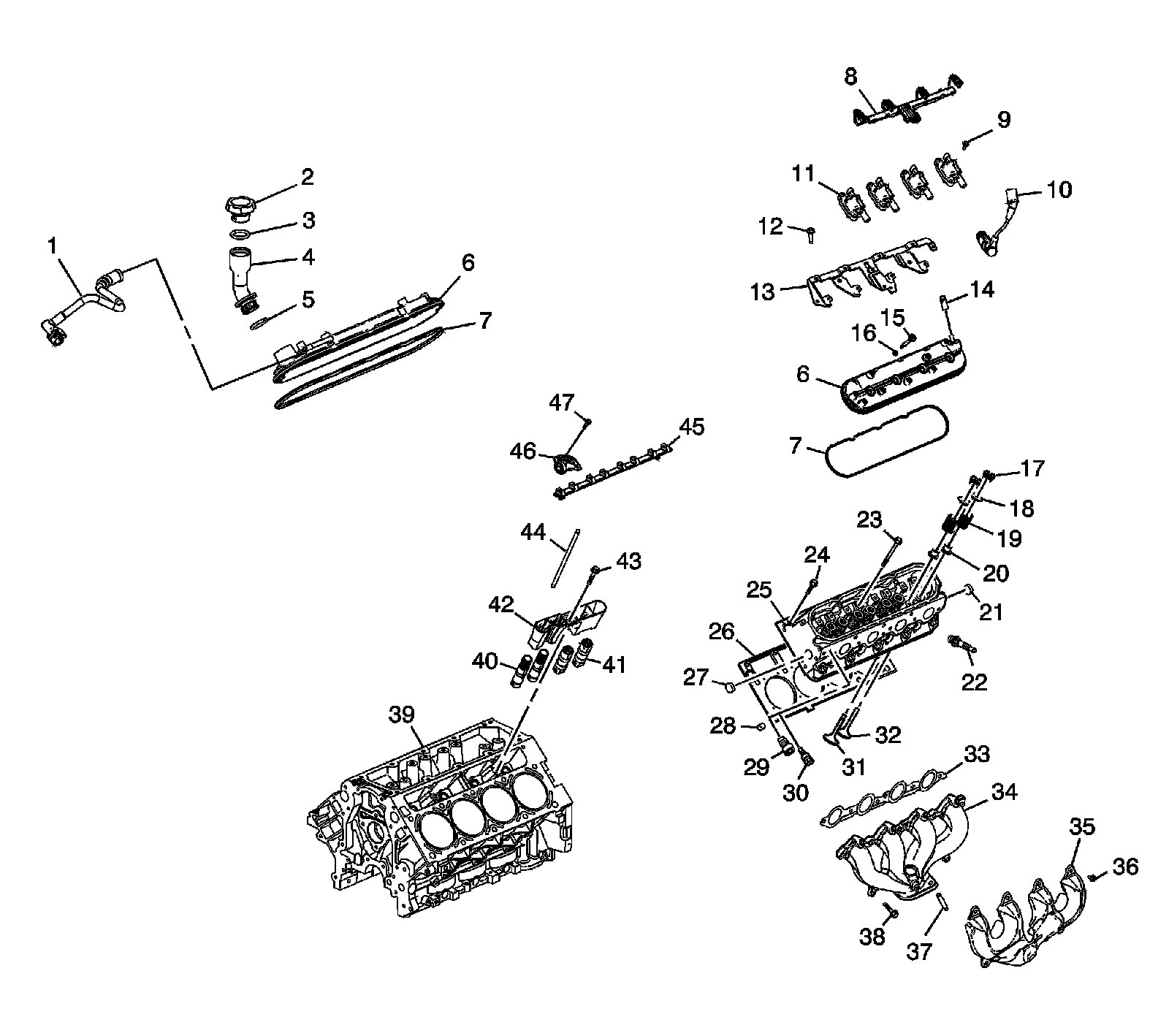

Cylinder Head/Upper Engine
1 - Positive Crankcase Ventilation (PCV) Hose - Fresh Air
2 - Oil Fill Cap
3 - O-ring
4 - Oil Fill Tube
5 - O-ring
6 - Valve Rocker Arm Cover
6 - Valve Rocker Arm Cover
7 - Valve Rocker Arm Cover Gasket
7 - Valve Rocker Arm Cover Gasket
8 - Ignition Coil Wire Harness Assembly
9 - Bolt
10 - Spark Plug Wire
11 - Ignition Coil
12 - Bolt
13 - Ignition Coil Bracket
14 - Bolt
15 - Bolt Grommet
16 - Valve Stem Key
17 - Valve Spring Cap
18 - Valve Spring
19 - Valve Stem Oil Seal
20 - Core Hole Plug
21 - Spark Plug
22 - Cylinder Head Bolt - M11
23 - Cylinder Head Bolt - M8
24 - Cylinder Head
25 - Cylinder Head Gasket
26 - Core Hole Plug
27 - Cylinder Head Locating Pin
28 - Cylinder Head Plug
29 - Coolant Temperature Sensor (CTS)
30 - Exhaust Valve
31 - Intake Valve
32 - Exhaust Manifold Gasket
33 - Exhaust Manifold
34 - Exhaust Manifold Heat Shield
35 - Bolt
36 - Stud
37 - Bolt
38 - Engine Block
39 - Valve Lifter - Active Fuel Management
40 - Valve Lifter - Non-Active Fuel Management
41 - Valve Lifter Guide
42 - Bolt
43 - Pushrod
44 - Valve Rocker Arm Pivot Support
45 - Valve Rocker Arm
46 - Bolt

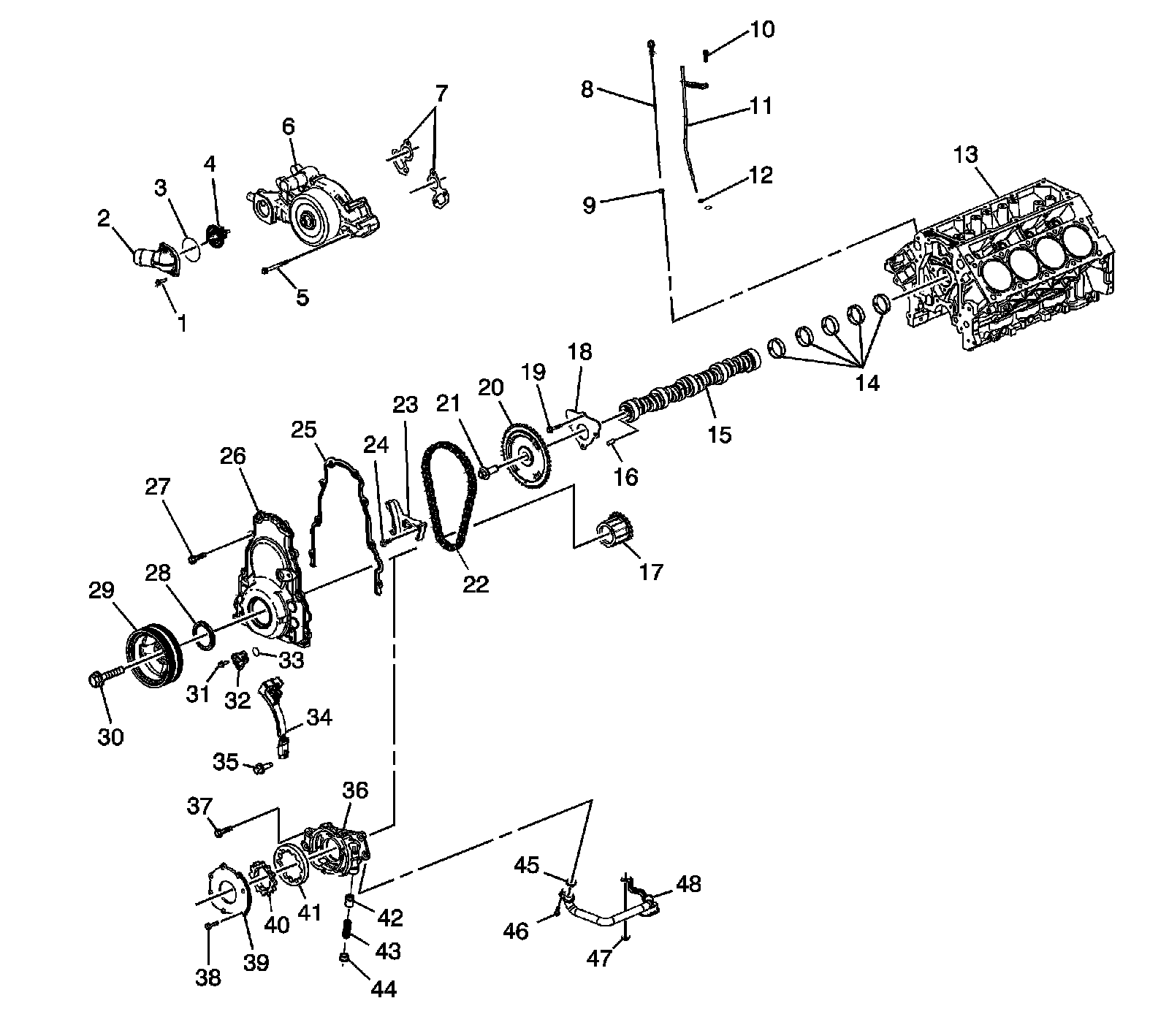

Front of Engine
1 - Bolt
2 - Water Inlet Housing
3 - O-Ring
4 - Thermostat
5 - Bolt
6 - Water Pump
7 - Water Pump Gasket
8 - Oil Level Indicator
9 - O-Ring
10 - Bolt
11 - Oil Level Indicator Tube
12 - O-Ring
13 - Engine Block
14 - Camshaft Bearings
15 - Camshaft
16 - Camshaft Sprocket Locating Pin
17 - Crankshaft Sprocket
18 - Camshaft Retainer
19 - Bolt
20 - Camshaft Sprocket
21 - Bolt
22 - Timing Chain
23 - Timing Chain Tensioner
24 - Bolt
25 - Engine Front Cover Gasket
26 - Engine Front Cover
27 - Bolt
28 - Crankshaft Front Oil Seal
29 - Crankshaft Balancer
30 - Crankshaft Balancer Bolt
31 - Bolt
32 - Camshaft Position (CMP) Sensor
33 - O-Ring
34 - CMP Sensor Wire Harness
35 - Bolt
36 - Oil Pump Housing
37 - Bolt
38 - Bolt
39 - Oil Pump Housing Cover
40 - Oil Pump Drive Gear
41 - Oil Pump Driven Gear
42 - Oil Pump Pressure Relief Valve
43 - Spring
44 - Oil Pump Housing Plug
45 - O-Ring
46 - Bolt
47 - Nut
48 - Oil Pump Screen

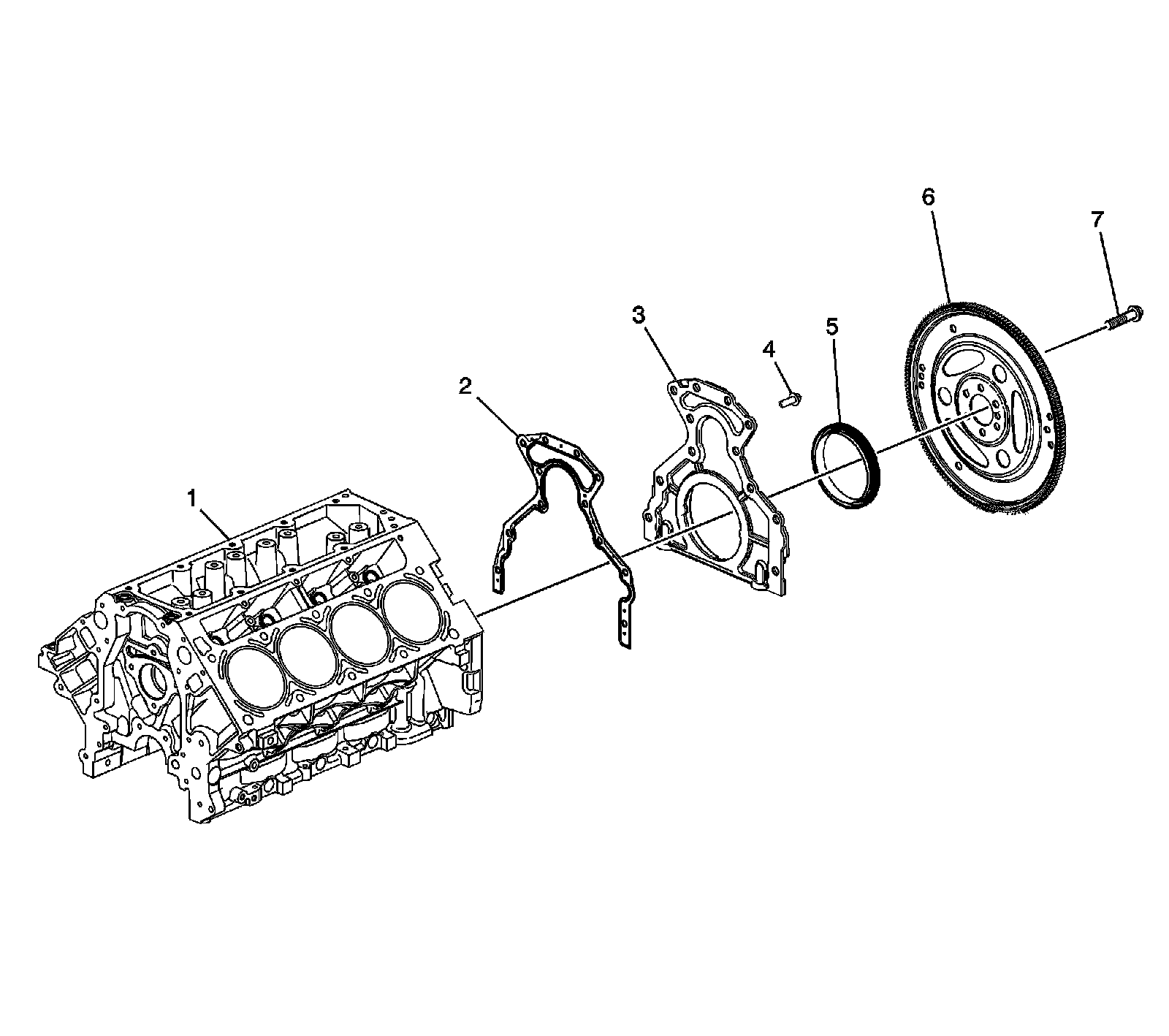

Rear of Engine
1 - Engine Block
2 - Crankshaft Rear Oil Seal Housing Gasket
3 - Crankshaft Rear Oil Seal Housing
4 - Crankshaft Rear Oil Seal Housing Bolt
5 - Crankshaft Rear Oil Seal
6 - Flex Plate- Automatic Transmission
7 - Flywheel Bolt
Lower Engine Assembly
1 - Engine Block
2 - Piston Pin Retainer
3 - Piston Pin
4 - Piston Ring Set
5 - Piston
6 - Connecting Rod
7 - Connecting Rod Bearings
8 - Connecting Rod Cap
9 - Connecting Rod Bolt
10 - Transmission Pilot Bearing - Manual Transmission
11 - Plug
12 - Crankshaft Main Bearing
12 - Crankshaft Main Bearing
13 - Crankshaft Thrust Bearing
13 - Crankshaft Thrust Bearing
14 - Crankshaft Balancer Key
15 - Crankshaft
16 - Crankshaft Bearing Cap
17 - Crankshaft Bearing Cap Bolt - M8
18 - Crankshaft Oil Deflector
19 - Crankshaft Oil Deflector Stud - M10
20 - Crankshaft Oil Deflector Bolt - M10
21 - Nut
22 - Oil Pan Gasket
23 - Bolt
24 - Oil Pan Baffle
25 - Active Fuel Management Oil Pressure Relief Valve
26 - Washer
27 - Oil Pan Cover Gasket
28 - Oil Pan Cover
29 - Bolt
30 - Oil Pan Closeout Cover - Left
31 - Bolt
32 - Oil Pan Bolt - M6
33 - Oil Pan Drain Plug
34 - Oil Filter
35 - Oil Filter Fitting
36 - O-Ring
37 - Oil Pan Bolt - M8
38 - Oil Pan
39 - Engine Closeout Cover - Right
40 - Bolt
41 - Oil Pump Screen
42 - O-Ring
43 - Nut
44 - Bolt
Engine Block Plugs/Sensors
1 - Engine Block
1 - Engine Block
2 - Washer
3 - Oil Gallery Plug - Side
4 - Bolt
4 - Bolt
5 - Knock Sensor
5 - Knock Sensor
6 - Engine Coolant Heater
7 - Washer
8 - Oil Gallery Plug - Side
9 - Washer
10 - Oil Gallery Plug - Front
11 - Transmission Housing Locating Pin
12 - O-Ring
13 - Oil Gallery Plug - Rear
14 - Engine Block Coolant Drain Hole Plug
15 - Washer
16 - CKP Sensor Bolt
17 - Crankshaft Position (CKP) Sensor
18 - O-Ring

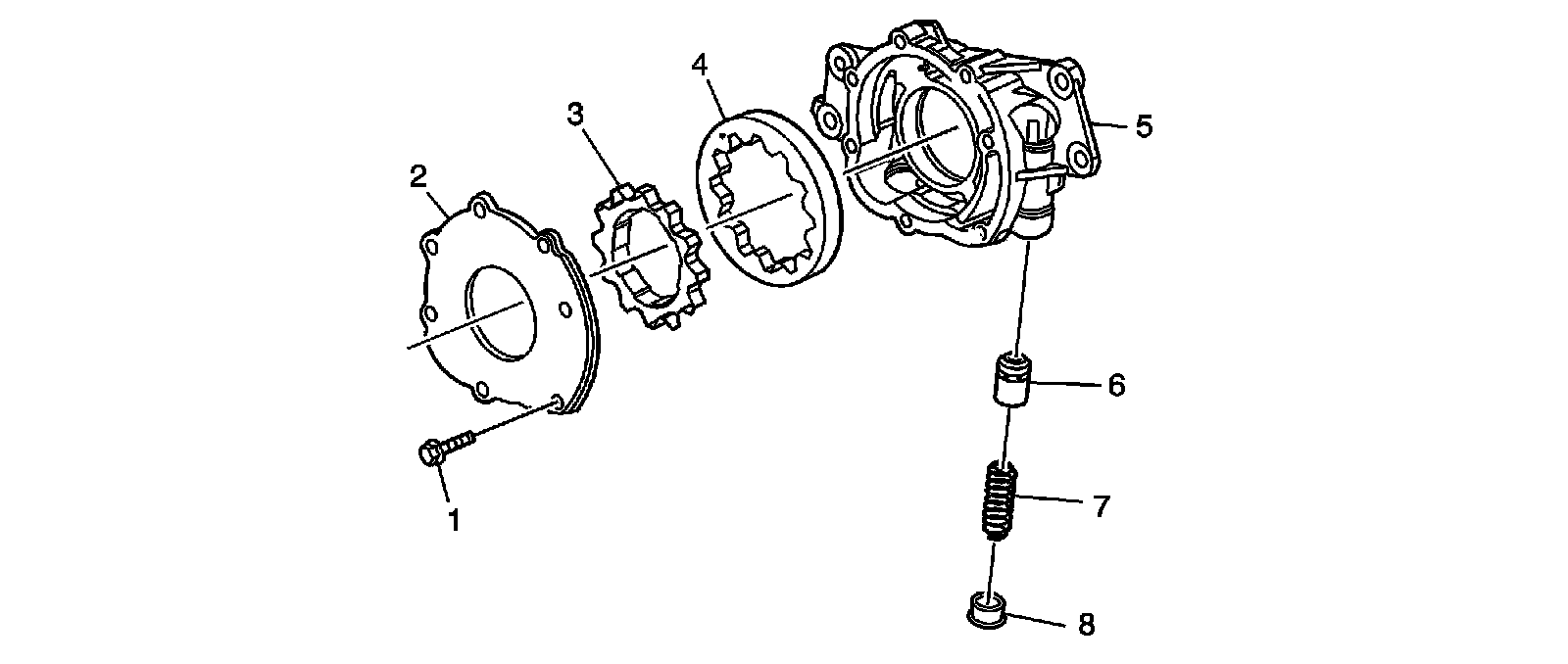

Oil Pump Assembly
1 - Bolt
2 - Oil Pump Housing Cover
3 - Oil Pump Drive Gear
4 - Oil Pump Driven Gear
5 - Oil Pump
6 - Oil Pump Pressure Relief Valve
7 - Oil Pump Pressure Relief Valve Spring
8 - Oil Pump Housing Plug
