Duct Air Temperature Sensor Replacement - Lower Right Side

Duct Air Temperature Sensor Replacement - Lower Right Side

Removal Procedure





1. Remove the HVAC module. Refer to Air Conditioning and Heater Module Assembly Removal and Installation Service and Repair.

Important:

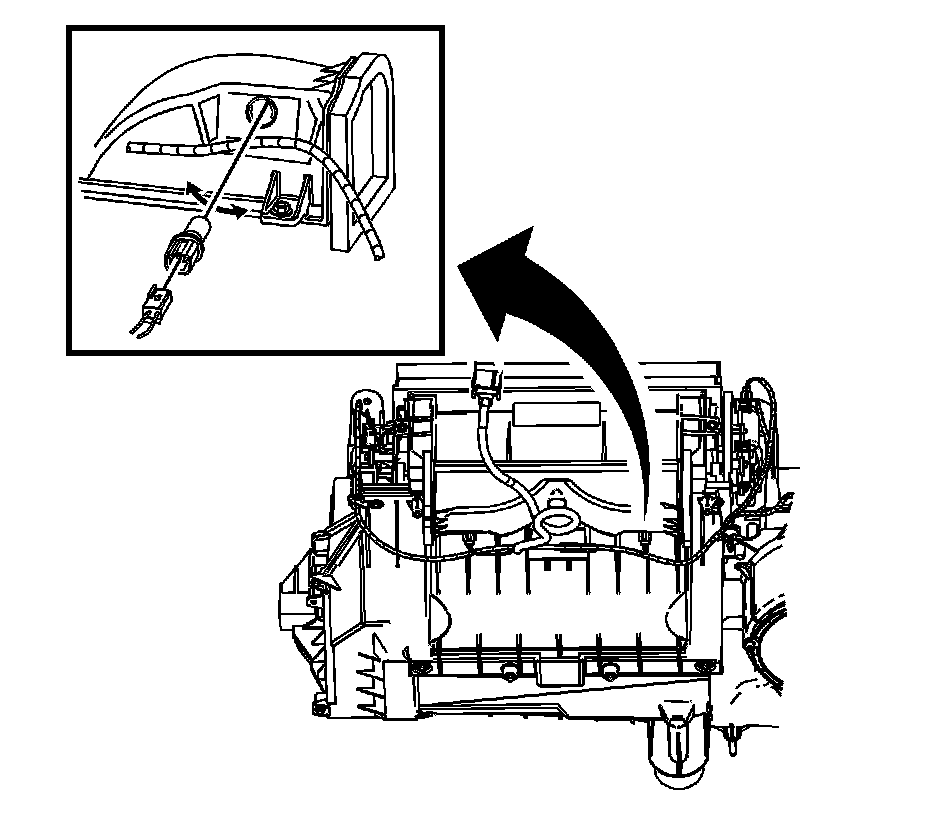

Rotate the diagnostic test mode (DTM) sensor counterclockwise to disengage the sensor from the lower duct.


2. Disconnect the lower RH DTM sensor electrical connector.

3. Remove the lower RH DTM sensor from the HVAC module.

Installation Procedure





Important:
Rotate the DTM sensor clockwise to engage the sensor to the lower duct.


1. Install the lower RH DTM sensor to the HVAC module.

2. Connect the lower RH DTM sensor electrical connector.

3. Install the HVAC module. Refer to Air Conditioning and Heater Module Assembly Removal and Installation Service and Repair.
