Duct Air Temperature Sensor Replacement - Upper Left Side

Duct Air Temperature Sensor Replacement - Upper Left Side

Removal Procedure

1. Remove the instrument panel cluster (IPC). Refer to Instrument Cluster Replacement Instrument Cluster Replacement.





2. Disconnect the left upper air temperature sensor electrical connector.

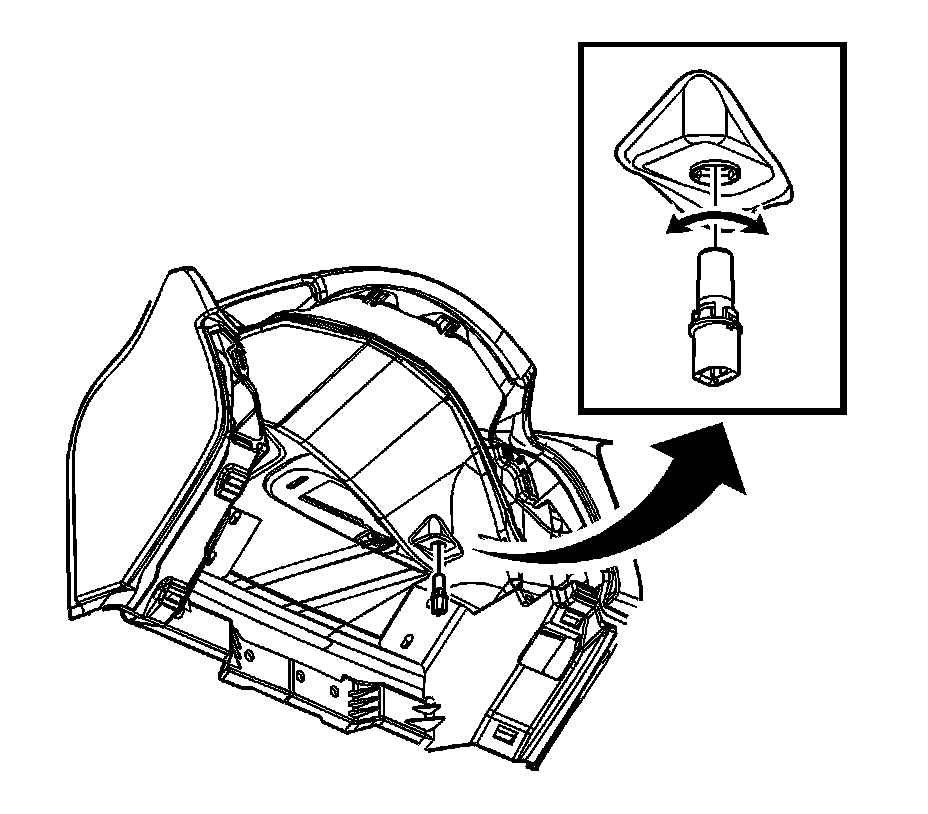

3. Remove the left upper air temperature sensor from the air distribution duct.

Installation Procedure





1. Install the left upper air temperature sensor to the air distribution duct.





2. Connect the left upper air temperature sensor electrical connector.

3. Install the IPC. Refer to Instrument Cluster Replacement Instrument Cluster Replacement.
